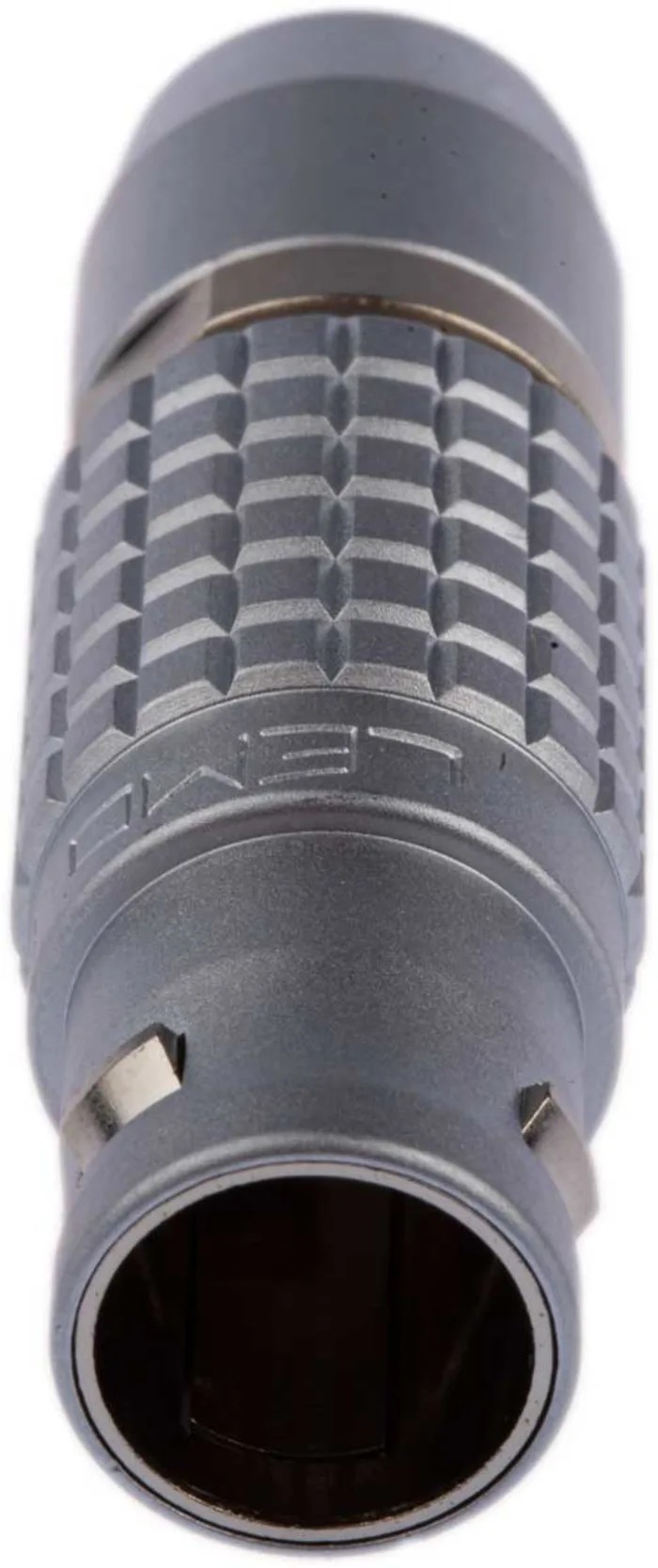

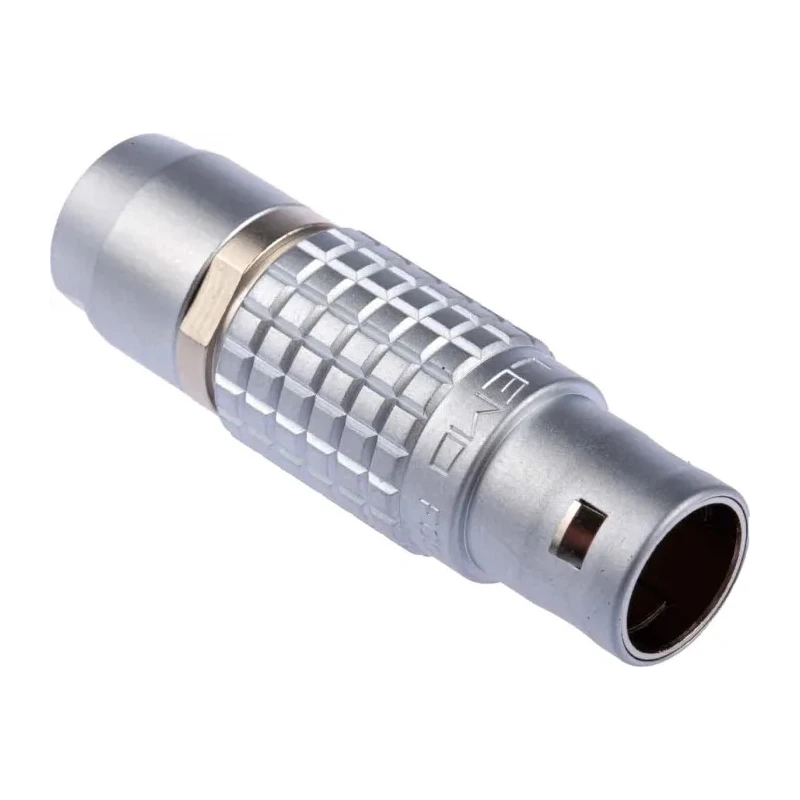

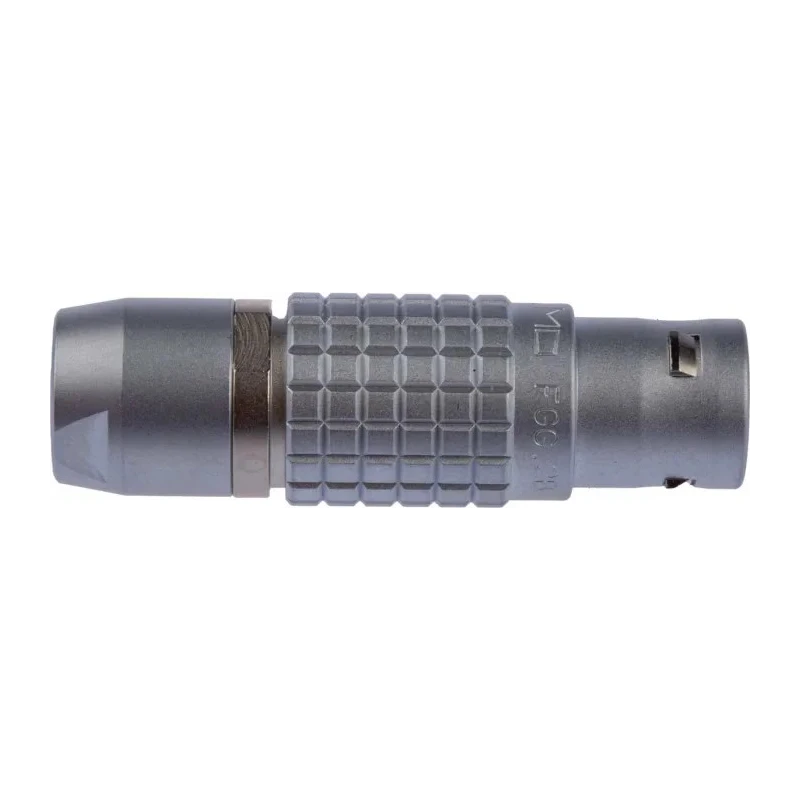

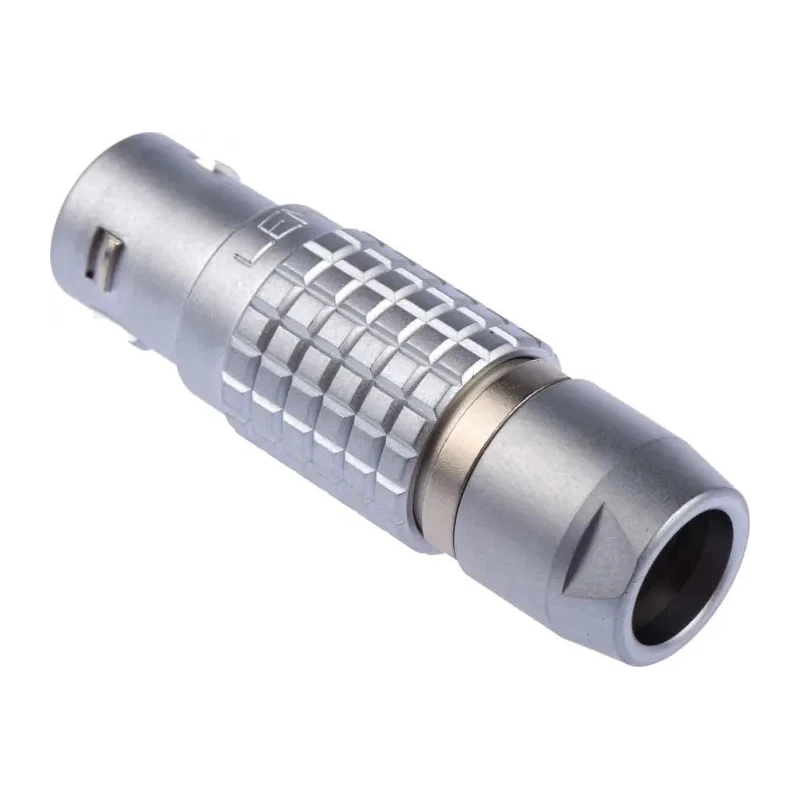

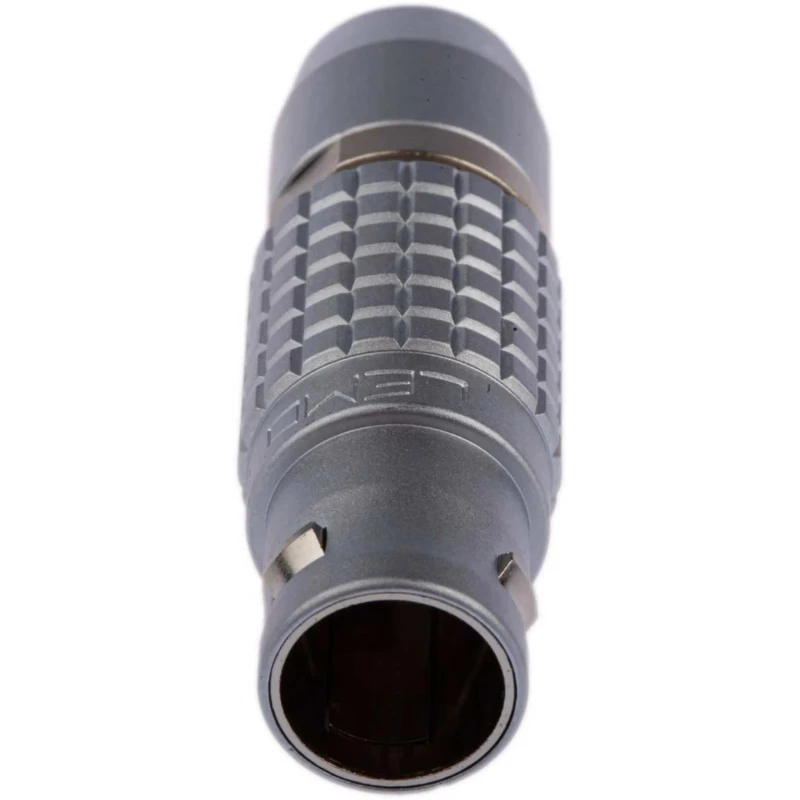

LEMO Circular Connector Cable Mount Plug, 8 Contacts, 15 mm, Male, Push Pull 2120V, 10A, IP50, Brass FGG.2B.308.CLAZ
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 2120V |
| Brand | LEMO |
| Orientation | Straight |
| Current | 10A |
| Model | FGG.2B.308.CLAZ |
| IP Rating | IP50 |
| Mount Type | Cable |
| Housing Material | Brass |
| Contact Material | Brass |
| Series | 2B |
| Termination Type | Solder |
| Maximum Operating Temperature | 250°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 8 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shell Size | 2 |
| Mating Type | Push Pull |
| Connector Size | 15 mm |
| Plug/Socket | Plug |
| 178-8925 | 5.1mm to 6mm |
| 178-8931 | 6.3mm to 7.2mm |
| 178-8953 | 7.3mm to 8.2mm |
| 178-8969 | 8.3mm to 9.2mm |
| 178-8975 | 9.7mm |
Key Features
- Designed with a straight body orientation and cable clamping for stability.
- Rated for 2120V voltage and 10A current handling capacity.
- Contact plating of gold over nickel ensures reliable electrical contact.
- Constructed with brass housing for durability and robustness.
- IP50 rated for protection, suitable for harsh industrial environments.
- Operating temperature range from -55°C to 250°C provides versatility.
- Solder termination type ensures stable electrical connection.
- Featuring a rugged push-pull self-latching system with cable collet and nut.
Product Description
LEMO FGG.2B.308.CLAZ is a high-precision industrial circular connector cable mount plug designed for demanding applications. It features 8 male contacts in a 15 mm cable size with a robust push pull self-latching mating system that provides secure electrical connections for industrial environments.
Constructed from chrome-plated brass with a nickel-plated brass latch inner sleeve and collet nut, this connector offers exceptional mechanical strength and durability. Its brass housing and gold over nickel plated contacts guarantee reliable conductivity and longevity even under frequent mating cycles.
The connector operates at a voltage rating of 2120V and current capacity up to 10A. It is solder termination type and designed for cable mounting, suitable for rugged field or laboratory setups. The IP50 protection rating ensures resistance to dust ingress in industrial conditions.
Its operating temperature range from -55°C to 250°C and high vibration and shock resistance make it suitable for medical devices, research, test, and measurement instrumentation applications. The push-pull mechanism equipped with a cable collet and nut allows for easy assembly with secure fixation and bending relief.
This LEMO product series 2B, shell size 2, is engineered for high endurance with up to 5000 mating cycles and precise pole format layout. It includes multiple collets to accommodate various cable diameters up to 9 mm for flexible installation options.
Straight body orientation with cable clamping and positioning guide for ease of use. Solder termination ensures durable contact connections. EMC shielding of 360 degrees protects against electromagnetic interference. Endurance of 5000 mating cycles confirms long-term reliability.
High vibration and shock resistance suitable for harsh conditions. PEEK insulating material provides thermal and electrical stability. K-keyed design prevents mismating and enhances safety.
This connector is essential for applications in industrial automation, medical instrumentation, aerospace, and other sectors requiring robust, high-performance electrical connection solutions. Appropriate installation of collet grommets, which are sold separately, enhances cable seal and protection further.
Explore more Industrial Circular Connectors from LEMO to meet your technical and application requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 2120V and a current handling capacity of 10A.
It operates within a temperature range of -55°C to 250°C, making it suitable for various environments.
This connector features 8 male contacts.
It uses a solder termination type for stable electrical connections.
The connector has an IP50 rating, indicating protection against dust ingress.
It is constructed with brass housing and features gold over nickel plating for the contacts.
This model has a connector size of 15 mm and belongs to shell size 2.
It features a push-pull mating type for secure connections.
The contact plating of gold over nickel ensures reliable electrical contact and longevity.
It is suitable for industrial automation, medical instrumentation, and aerospace applications.
This connector can endure up to 5000 mating cycles, confirming its long-term reliability.
It includes a cable collet and nut for secure fixation and bending relief during installation.
