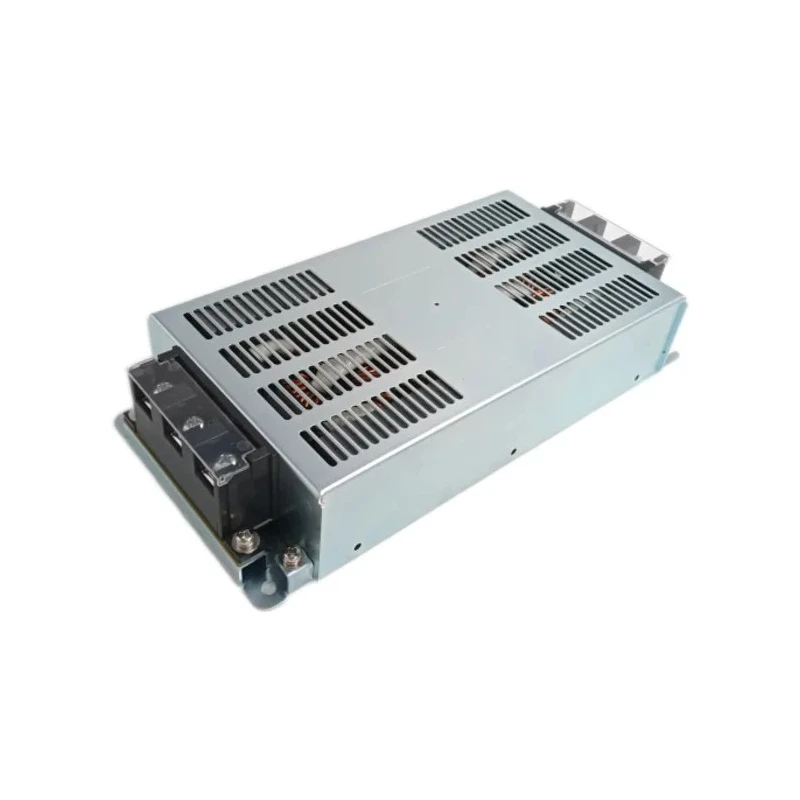

KEMET Three Phase Chassis Mount EMI Power Line Filter 60A 500V AC Nanocrystalline Core GTX-3600-Y104
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 47mm |
| Length | 250mm |
| Model | GTX-3600-Y104 |
| Depth | 120mm |
| Packaging | Box |
| Mount Type | Chassis Mount |
| Series | GTX |
| Maximum Operating Temperature | 55°C |
| Resistance | 300mΩ |
| Capacitance | 100000pF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 60A |
| Number of Phases | 3 |
| Leakage Current | 20mA |
| Maximum Voltage | 500V ac |
| Termination Style | Screw |
Key Features
- Compact and lightweight design using nanocrystalline core material.
- Operates reliably within −25°C to +55°C ambient temperature range.
- Features screw termination style for secure chassis mount installation.
- Capacitance of 100000 pF and a resistance of 300 mΩ ensuring effective EMI suppression.
- Leakage current rated at 20 mA for safe and compliant operation.
- Designed for three phase power systems at 500 V AC rating.
- RoHS compliant and approved by UL, c-UL, and TÜV for quality assurance.
- Ideal for industrial equipment, general purpose inverters, and process automation.
Product Description
KEMET GTX-3600-Y104 is a high-performance three phase chassis mount EMI power line filter designed to meet stringent EMC requirements in industrial and automation environments. This filter operates at a maximum current of 60A and a maximum voltage of 500V AC using advanced nanocrystalline core materials to provide excellent electromagnetic interference suppression.
The GTX series filter offers a compact and lightweight metal case construction, making it suitable for applications requiring space efficiency and mechanical durability. Its robust chassis mount design with screw terminations ensures secure and stable installation within electrical panels or equipment chassis.
The device has a capacitance rating of 100000 pF and resistance of 300 mΩ along with a leakage current of 20 mA. It operates reliably in harsh environments with operating temperatures from −25°C to +55°C. This filter is RoHS compliant and carries approvals from UL, c-UL, and TÜV, guaranteeing quality and safety compliance.
Typical industrial applications include use in industrial equipment, general purpose inverters, process automation systems, and other three phase power line filtering scenarios where EMI suppression is critical.
Compact and lightweight design using nanocrystalline core material. Operates reliably within −25°C to +55°C ambient temperature range. Features screw termination style for secure chassis mount installation. Capacitance of 100000 pF and a resistance of 300 mΩ ensuring effective EMI suppression.
Leakage current rated at 20 mA for safe and compliant operation. Designed for three phase power systems at 500 V AC rating. RoHS compliant and approved by UL, c-UL, and TÜV for quality assurance. Ideal for industrial equipment, general purpose inverters, and process automation.
Explore the comprehensive range of EMI filters and power line filters at EnvMart for industrial-grade electromagnetic interference management solutions.
Explore more products in our EMI Filters & Protection category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current rating of 60A, making it suitable for three phase power systems.
It is designed to operate at a maximum voltage of 500V AC.
The capacitance of this unit is rated at 100000 pF, which helps in effective EMI suppression.
This model has dimensions of 250mm in length, 120mm in depth, and 47mm in height.
It operates reliably within a temperature range of −25°C to +55°C.
The filter features a screw termination style for secure chassis mount installation.
The resistance of this filter is rated at 300 mΩ, which contributes to its EMI suppression capabilities.
It has a leakage current rated at 20 mA, ensuring safe and compliant operation.
Yes, it is RoHS compliant and approved by UL, c-UL, and TÜV for quality assurance.
It supports chassis mount installation, providing a secure fit within electrical panels or equipment chassis.
The country of origin for this model is India.
