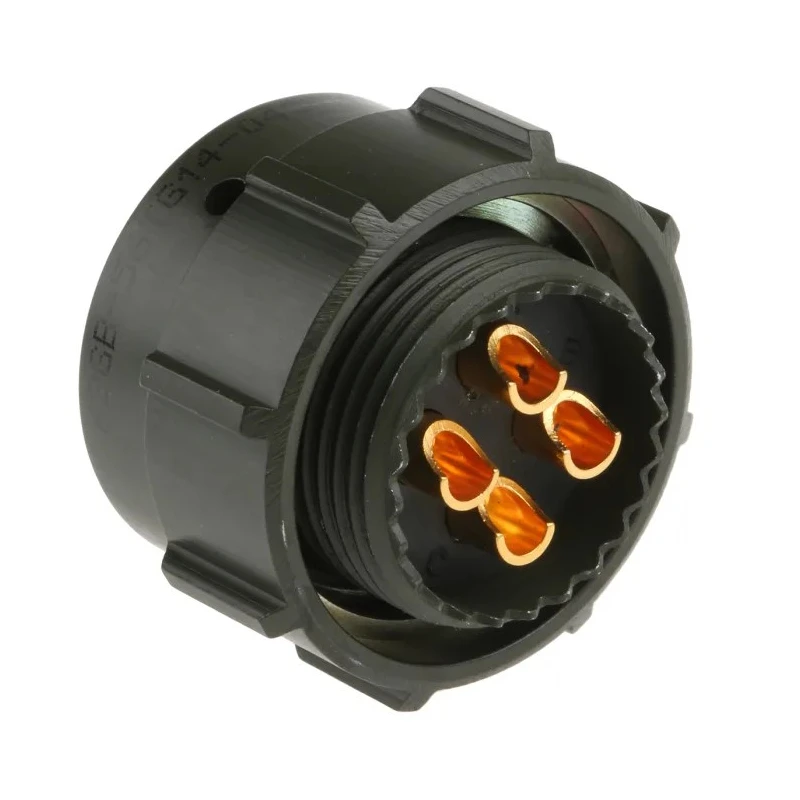

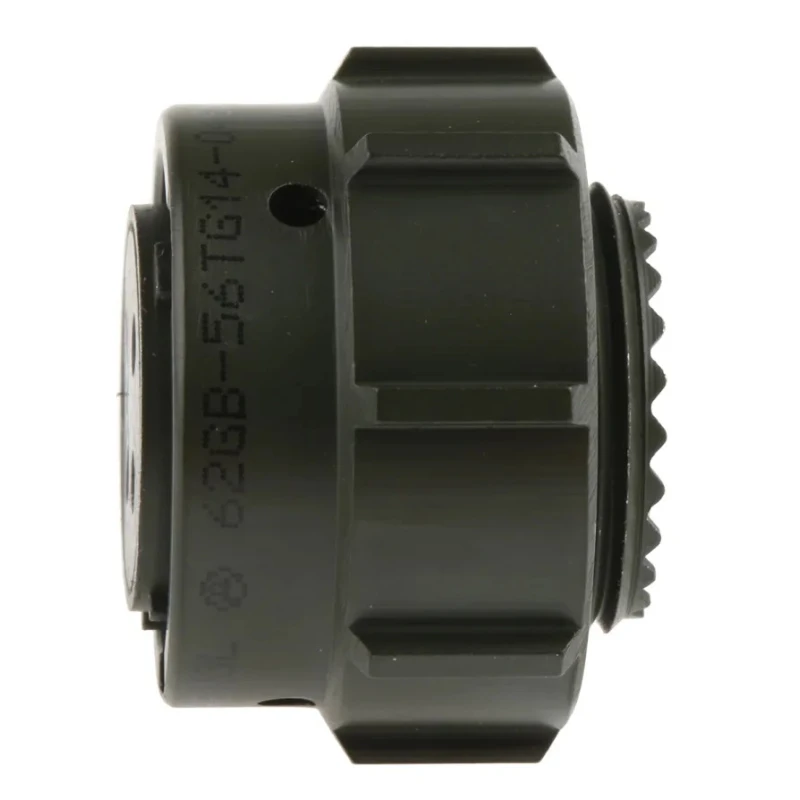

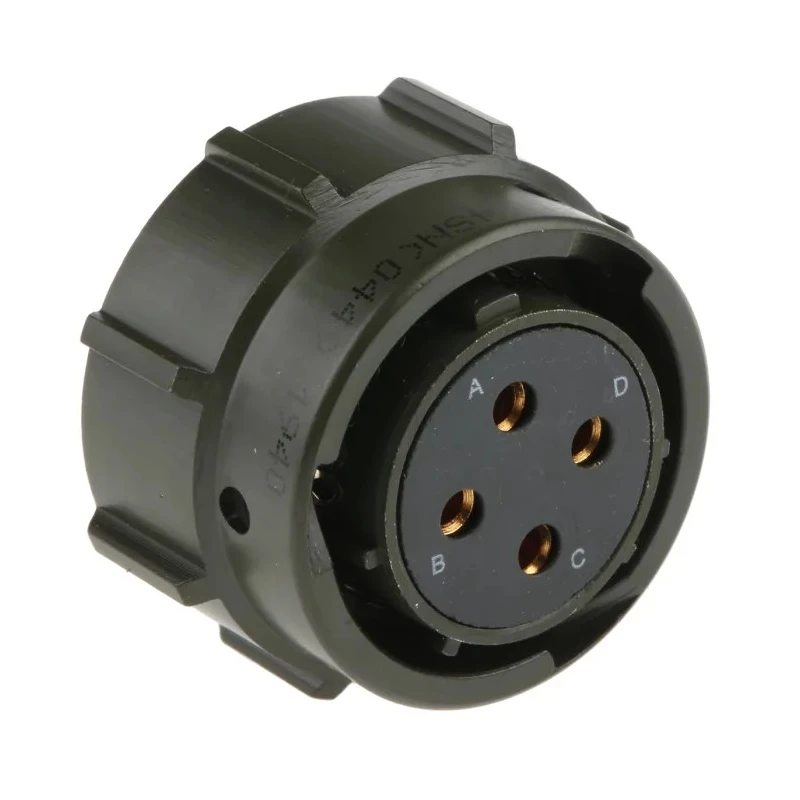

Amphenol Limited MIL Spec Circular Connector 4 Way Cable, Gold Plated Copper Contacts, Straight Olive 62GB-56TG14-04SN(044)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 700V |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Current | 20A |
| Model | 62GB-56TG14-04SN(044) |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Gold Plated Copper |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Resistance | 5 mΩ max |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 14 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Shell Plating | Zinc Cobalt |

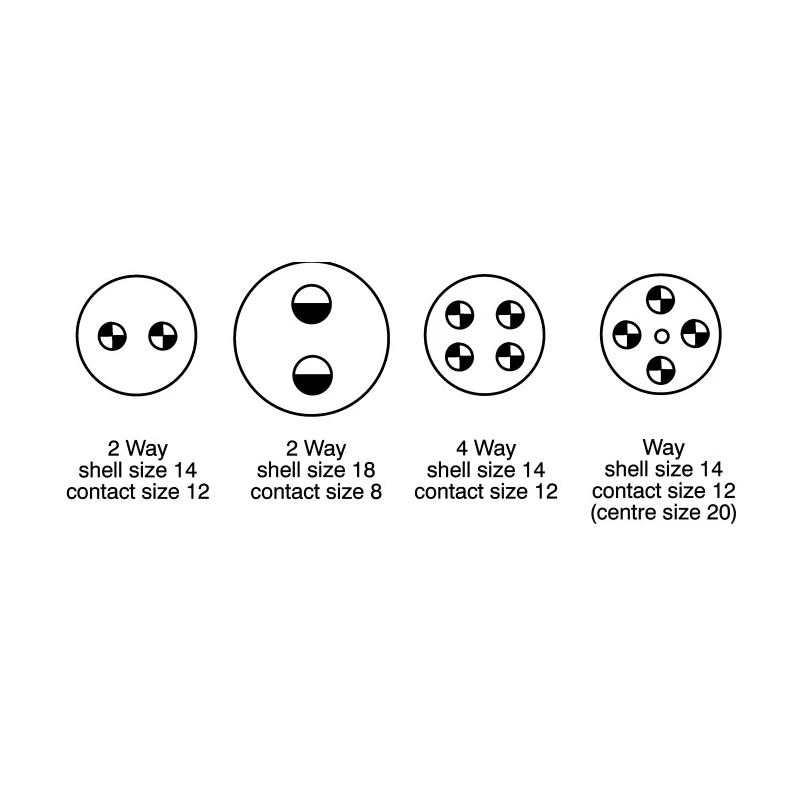

| Insert Arrangement | 14-4 |
Key Features
- Constructed with aluminium alloy housing and zinc cobalt olive drab plating for corrosion resistance.
- Features gold plated copper contacts with solder bucket termination for reliable connectivity.
- Supports up to 700 volts and 20 amperes current rating.
- Includes bayonet locking system and a keyed design to prevent mis-mating.
- Operates reliably between -55°C to 125°C for harsh environment applications.
- Miniature size 14 shell with 4 contact insert arrangement delivering compact and durable performance.
- Ideal for military and industrial applications requiring environmental sealing and mechanical durability.
- Maintains contact resistance maximum of 5 milliohms ensuring efficient power transmission.
Product Description
Amphenol Limited 62GB-56TG14-04SN(044) MIL Spec Circular Connector 4 Way cable-mounted female connector with male mating, designed for high reliability in military and industrial environments. This miniature size 14 circular connector complies with MIL-DTL-26482 standards and offers a robust bayonet locking system that guarantees secure mating with box-mounted plugs.
The connector housing is made from solid aluminium alloy with a zinc cobalt olive drab finish that ensures outstanding corrosion resistance. Gold plated copper contacts provide superior conductivity and durability. The solder bucket termination type facilitates reliable cable connections while maintaining electrical integrity under stress.
Rated for 700 volts and 20 amperes, the connector performs efficiently in a temperature range from -55°C to 125°C. The insert arrangement of 14-4 ensures correct alignment and keying prevents connector mis-mating, protecting equipment and operators.
This 62GB series connector offers environmental sealing when mated and mechanical life expectancy of up to 500 mating cycles, making it suitable for demanding industrial, military vehicle, aerospace, and harsh environment applications. Its bayonet lock and grounding spring fingers on the shell further enhance connection security and shielding.
Robust miniature MIL-DTL-26482 compliant circular connector with bayonet lock. Constructed with corrosion-resistant aluminium alloy housing. Gold plated copper solder bucket contacts for superior electrical performance. High current rating of 20 amps and voltage rating of 700 volts.
Operates in extreme temperatures from -55°C to 125°C with environmental sealing. Keyed for secure mating and to prevent misalignment. Durable bayonet locking mechanism for quick and secure connections. Ideal for military, aerospace, industrial, and rugged electronic assemblies.
Explore the extensive range of Mil Spec Circular Connectors from Amphenol Limited available at EnvMart for your reliable and high-performance connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 700 volts and 20 amperes, making it suitable for high-power applications.
The housing is made from aluminium alloy with a zinc cobalt olive drab plating, and it features gold plated copper contacts.
This connector operates reliably between -55°C to 125°C, suitable for harsh environments.
It has 4 contacts arranged in a miniature size 14 shell configuration.
It uses a solder bucket termination type for reliable cable connections.
The maximum contact resistance is 5 milliohms, ensuring efficient power transmission.
It features a bayonet mating type, which provides a secure connection.
Yes, it complies with MIL-DTL-26482 standards, ensuring high reliability in military applications.
The shell size is 14, which is classified as a miniature size.
It is ideal for military, aerospace, industrial, and rugged electronic assemblies requiring environmental sealing.
The keyed design prevents mis-mating, ensuring correct alignment during connection.
It has a mechanical life expectancy of up to 500 mating cycles, suitable for repeated use.
