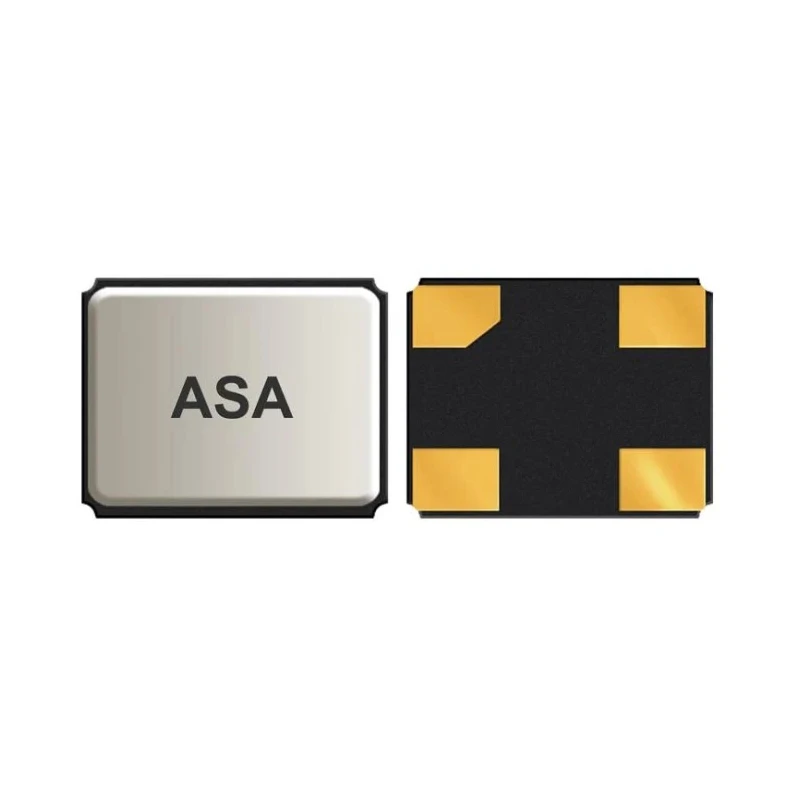

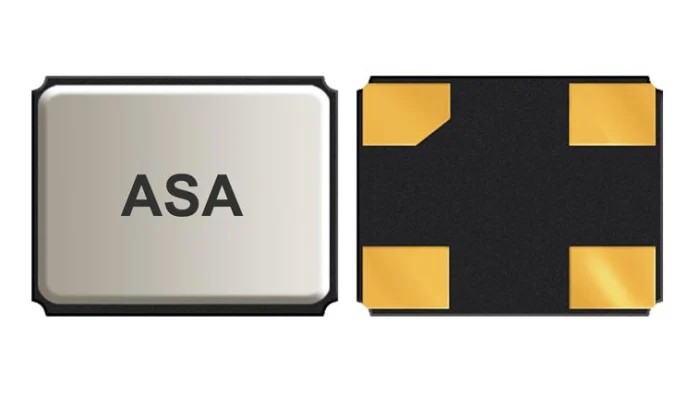

Abracon 12MHz Clock Oscillator Crystal Oscillator HCMOS 4-Pin Surface Mount ASA-12.000MHZ-L-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.7mm |
| Length | 2mm |
| Model | ASA-12.000MHZ-L-T |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | ASA |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 12MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.66V |
| Minimum Supply Voltage | 2.97V |
| Oscillator Type | Clock Oscillator |
| Output Level | HCMOS |
Key Features
- Ultra miniature surface mount package measuring 2.0 x 1.6 x 0.7mm.
- Operates within a supply voltage range of 2.97V to 3.66V.
- Output frequency of 12MHz with HCMOS output level.
- Tri-state function for flexible control.
- Suitable for high density SMT applications and RoHS compliant reflow processes.
- Operates reliably in temperatures from -40°C to 85°C.
- Seam sealed package ensures high reliability and durability.
- Pin count of 4 for easy PCB integration.
Product Description
Abracon ASA-12.000MHZ-L-T is a 12MHz Clock Oscillator Crystal Oscillator featuring HCMOS output in a compact 4-pin surface mount package measuring 2.0 x 1.6 x 0.7 mm. Designed for use in high-density PCB assemblies, this oscillator operates with a supply voltage between 2.97V and 3.66V, making it suitable for low voltage electronic circuits.
This oscillator provides a stable 12MHz output frequency suitable for timing and clock generation in a variety of electronic devices. The tri-state function allows for flexible enabling and disabling of the output signal, making it adaptable for complex circuit designs.
The device operates reliably over an industrial temperature range of -40°C to 85°C, ensuring stable performance in harsh environmental conditions. Its seam-sealed package assures high reliability and durability, compliant with RoHS standards, making it an environmentally friendly choice.
The low-profile form factor and surface mount design contribute to space-saving on densely packed PCBs. This makes it ideal for applications such as CCD clocks for VTR cameras, computer peripherals, portable electronics, and other timing-critical equipment.
Ultra miniature surface mount package measuring 2.0 x 1.6 x 0.7mm. Operates within a supply voltage range of 2.97V to 3.66V. Output frequency of 12MHz with HCMOS output level. Tri-state function for flexible control. Suitable for high density SMT applications and RoHS compliant reflow processes.
Operates reliably in temperatures from -40°C to 85°C. Seam sealed package ensures high reliability and durability. Pin count of 4 for easy PCB integration. Ideal for use in CCD clocks, VTR cameras, computers, peripherals, and portable electronics.
This product is part of the ASA series from Abracon, known for its ultra miniature size and dependable performance. It is highly suitable for industrial, consumer electronics, and manufacturing applications requiring precise clock generation and synchronization.
Explore more products in the Crystal Oscillator category at EnvMart for comprehensive solutions to your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 12MHz, suitable for timing and clock generation in various electronic devices.
This oscillator has dimensions of 2.0mm in length, 1.6mm in width, and 0.7mm in height, making it an ultra miniature surface mount package.
It operates within a supply voltage range of 2.97V to 3.66V, making it suitable for low voltage electronic circuits.
This oscillator operates reliably over an industrial temperature range of -40°C to 85°C, ensuring stable performance in harsh conditions.
It provides an HCMOS output level, which is commonly used for digital circuits.
The Abracon ASA-12.000MHZ-L-T features a pin count of 4, facilitating easy integration into PCBs.
Yes, this oscillator is RoHS compliant, making it an environmentally friendly choice for electronic applications.
It is packaged in tape and reel, which is suitable for automated assembly processes.
This model is part of the ASA series from Abracon, known for its ultra miniature size and dependable performance.
It is ideal for use in applications such as CCD clocks, VTR cameras, computer peripherals, and portable electronics.
This oscillator is designed for surface mount, making it suitable for high-density PCB assemblies.
The seam-sealed package ensures high reliability and durability, protecting the oscillator in various operating environments.
