Amphenol Industrial ExcelMate HVSL100 PowerLok Plug with HVIL EV Connector Female 250A HVSL100

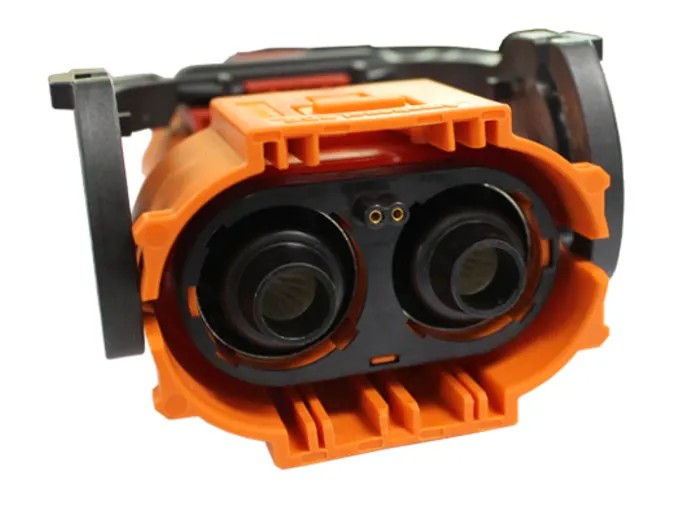

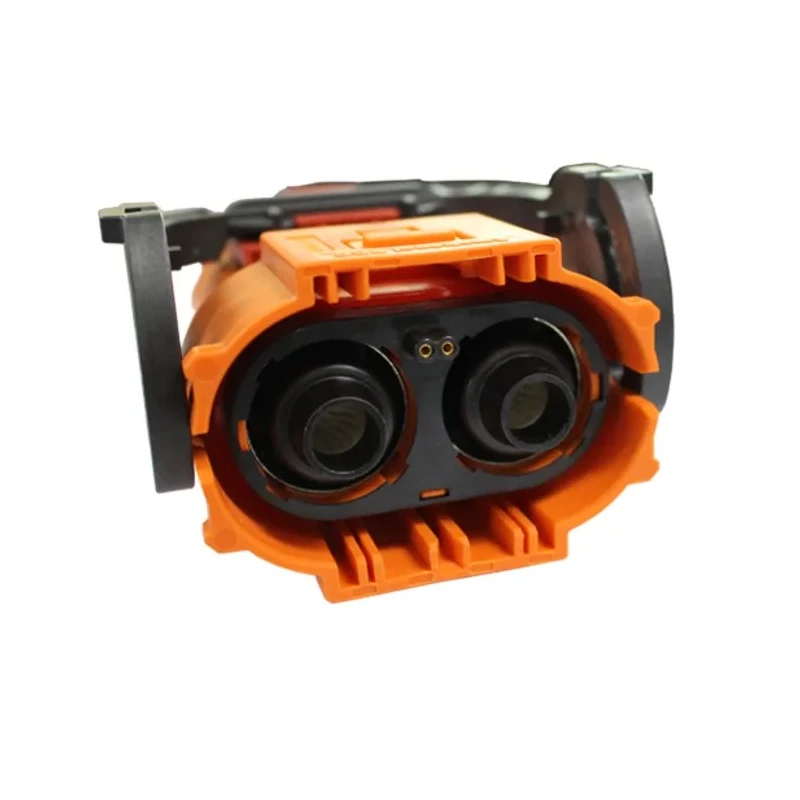

Amphenol Industrial HVSL100 PowerLok Plug with HVIL EV Connector Female 250A is a high-quality two-way, B-coded, straight plug designed to deliver reliable power interconnection in industrial, railway, and hybrid electric vehicle applications worldwide.

This connector supports a stringent operating voltage of 1000V and current rating of 250A, allowing it to handle significant electrical loads for heavy-duty use. The female connector design includes two contacts arranged in one row to ensure secure and efficient connections.

The wire size compatibility is up to 50 mm², employing crimp termination for secure wire attachment. Its operating temperature range extends from -40°C to 125°C, ensuring usability in harsh environmental conditions.

Constructed with copper alloy contacts plated in silver, this connector provides optimal electrical conductivity and corrosion resistance. The housing is made of thermoplastic materials offering durable protection against environmental and mechanical stresses. The connector achieves an IP69K ingress protection rating, providing resistance to dust and high-pressure water jets, making it ideal for industrial and automotive environments.

Designed for panel mounting with a straight orientation, this connector measures 87mm in height, 91mm in width, and 105mm in depth. It complies with UL and RoHS standards, ensuring adherence to electrical safety and environmental sustainability.

The Amphenol Industrial ExcelMate HVSL100 series delivers a trusted quality and design tailored for the current trends in electric vehicle and industrial connector markets, providing complete and customized interconnect solutions.

The connector supports a current rating of 250 amps for high power applications. Features a PowerLok Plug with HVIL for enhanced safety and secure locking. Suitable for wire sizes up to 50 mm² with a crimp termination type.

Operates efficiently in temperatures ranging from -40°C to 125°C. Offers IP69K rating ensuring resistance to dust and high pressure water jets. Constructed with a copper alloy contact material plated with silver for optimal conductivity.

Housing made of durable thermoplastic material for robust industrial use. Designed for panel mount with a compact straight orientation. Complies with UL and RoHS standards supporting sustainable and safe usage. Measures 87mm in height, 91mm in width, and 105mm in depth, making it suitable for compact installations.

Ideal for industrial, railway, and hybrid electric vehicle applications, this connector offers durability, performance, and compliance, meeting the demanding requirements of modern electrical power systems. Explore more high-quality EV Connectors in the Electronics & Electrical category on EnvMart.
