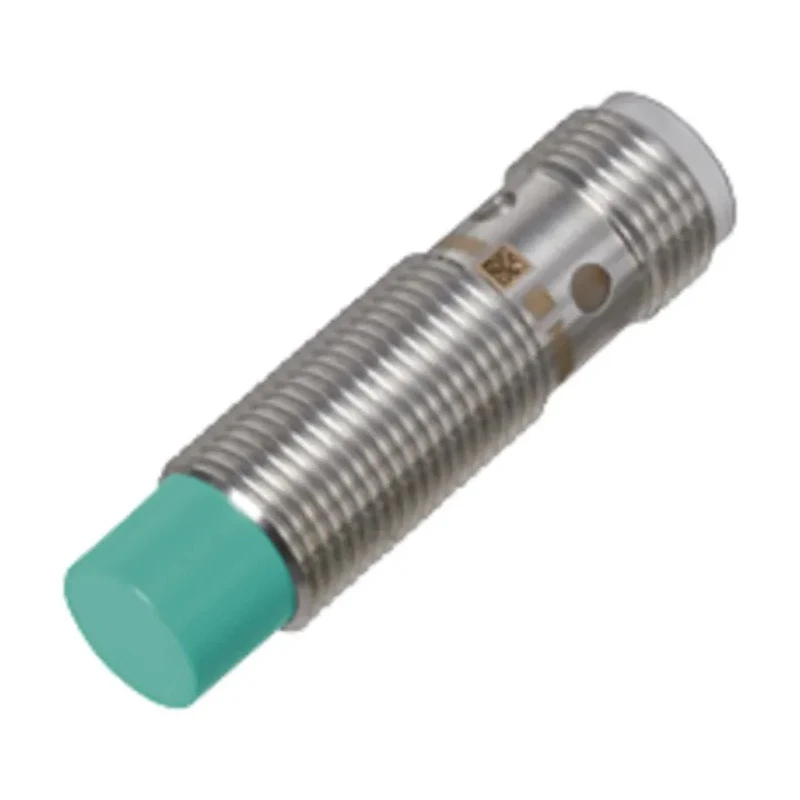

Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M18 36V 5 mm NPN NBB5-18GM50-A0
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | Pepperl + Fuchs |
| Length | 55.9mm |
| Model | NBB5-18GM50-A0 |
| Depth | 18mm |
| IP Rating | IP68 |
| Width | 55.9mm |
| Mount Type | Flush |
| Housing Material | Brass White Bronze Coated |
| Output type | NPN |
| Series | NBB |
| Maximum Operating Temperature | 85°C |
| Thread Size | M18 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1.95kHz |
| Standards/Approvals | ANSI/ESD, CE, CSA, DIN, EN, REACH, RoHS, UL 508 12, UL 508 4, UL 94 HB, UL 94 V-0, UL 94 V-2 |
| Maximum AC Voltage | 240V ac |
| Maximum Supply Voltage | 36V |
| Materials Detected | Polybutylene Terephthalate |
| Maximum Detection | 5mm |
Key Features
- Offers high corrosion resistance with brass white bronze coated housing.
- Features a shielded design with flush mount configuration for versatile installation.
- Operates over a temperature range of -40°C to 85°C for industrial durability.
- NPN output type supports signal switching current up to 200 mA and frequency up to 1.95 kHz.
- Supports a maximum supply voltage of 36 V DC and 240 V AC for flexible power options.
- Includes a clearly visible green LED end cap for operational status indication.
- Pre-cabled terminal prevents wiring errors and speeds up setup.
- Complies with multiple international standards including CE, CSA, and RoHS ensuring safety and quality.
Product Description
Pepperl + Fuchs NBB5-18GM50-A0 threaded barrel inductive proximity sensor, designed with an M18 thread size and shielded configuration, offers precise detection of metal objects with a maximum sensing distance of 5 mm. It operates reliably within a wide temperature range from -40°C to 85°C, making it suitable for demanding industrial environments.
The sensor housing is crafted from brass and coated with white bronze to provide maximum corrosion resistance, ensuring durability and longevity in harsh conditions. The green end cap is equipped with a clearly visible LED that provides real-time status feedback, improving operational efficiency.
Equipped with an NPN output and capable of switching currents up to 200 mA with a maximum switching frequency of 1.95 kHz, this sensor is ideal for automation and control applications that require fast and accurate metal detection signals.
The sensor supports a maximum supply voltage of 36 V DC and 240 V AC, allowing adaptability across various power setups. Its terminal is pre-cabled for simplified installation and maintenance.
Pepperl + Fuchs ensures that this sensor complies with stringent international standards such as ANSI/ESD, CE, CSA, DIN, EN, REACH, RoHS, and multiple UL certifications, ensuring high safety, reliability, and environmental compliance for industrial, manufacturing, and process automation applications.
Offers high corrosion resistance with brass white bronze coated housing. Features a shielded design with flush mount configuration for versatile installation. Operates over a temperature range of -40°C to 85°C for industrial durability.
NPN output type supports signal switching current up to 200 mA and frequency up to 1.95 kHz. Supports a maximum supply voltage of 36 V DC and 240 V AC for flexible power options. Includes a clearly visible green LED end cap for operational status indication.
Pre-cabled terminal prevents wiring errors and speeds up setup. Complies with multiple international standards including CE, CSA, and RoHS ensuring safety and quality.
This Inductive Proximity Sensor is ideal for use in industrial automation, manufacturing process control, robotics, and other metal detection requirements. It ensures reliable operation under challenging environmental conditions while maintaining consistent sensing performance.
Explore more Pepperl + Fuchs sensors and automation components on EnvMart to optimize your control systems and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sensing distance of this model is 5 mm, allowing for precise detection of metal objects.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for demanding industrial environments.
This model features an NPN output type, which supports a signal switching current of up to 200 mA.
It supports a maximum supply voltage of 36 V DC and 240 V AC, providing flexibility for various power setups.
This sensor is designed to detect materials such as Polybutylene Terephthalate.
The IP rating for this sensor is IP68, indicating its suitability for harsh environmental conditions.
The maximum switching frequency is 1.95 kHz, allowing for fast and accurate metal detection signals.
The dimensions are 55.9 mm in length and width, with a depth of 18 mm.
This model features a flush mount configuration, allowing for versatile installation options.
It includes a pre-cabled terminal, which helps to prevent wiring errors and speeds up setup.
It complies with multiple international standards including ANSI/ESD, CE, CSA, DIN, EN, REACH, RoHS, and various UL certifications, ensuring safety and quality.
The housing is made of brass and coated with white bronze, providing high corrosion resistance.
