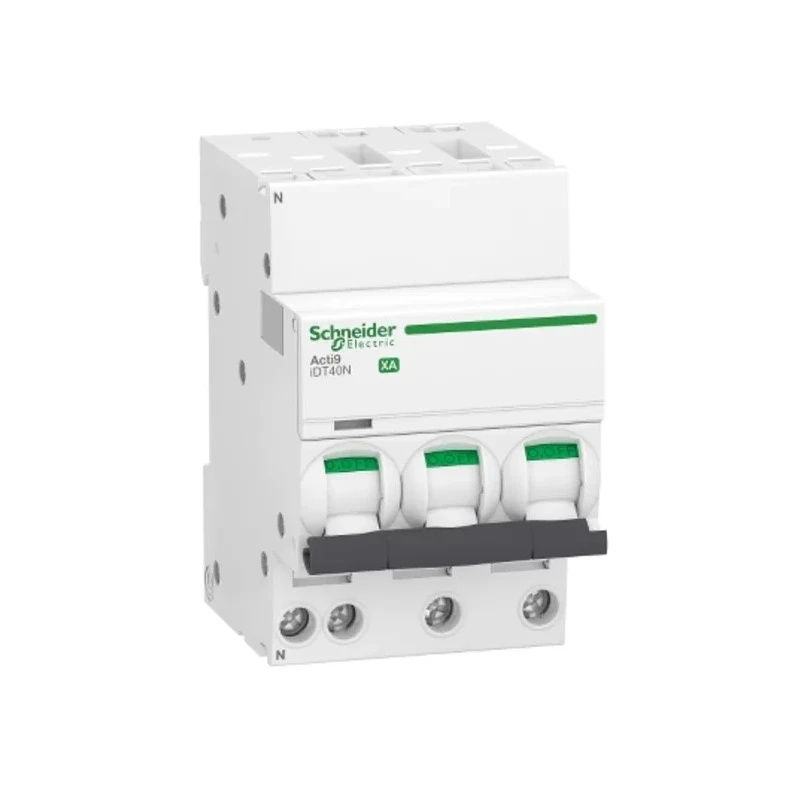

Schneider Electric Acti9 iDT40N XA Miniature Circuit Breaker 3+N-Pole 20A Type C 400V AC 6000A Breaking A9PA4720

Schneider Electric A9PA4720 Acti9 iDT40N XA Miniature Circuit Breaker is a high-quality, reliable protective device designed to safeguard electrical circuits in residential, commercial, and industrial environments. Featuring a thermal-magnetic trip unit, this Miniature Circuit Breaker offers precise protection against overload currents and short circuits, ensuring operational safety of electrical systems at a voltage rating of 400V AC.

The 3+N-Pole configuration enables protection across three phases plus neutral, making it suitable for balanced three-phase applications. The Type C tripping characteristic allows sensitive response suitable for general-purpose usage, protecting wiring and connected equipment effectively.

Its breaking capacity of 6000A affords the capability to interrupt high fault currents safely, preventing damage to installations and enhancing safety. The breaker is constructed to standards EN/IEC 60898-1 and EN/IEC 60947-2, ensuring compliance with rigorous international quality and safety requirements. Moreover, it has an IP20 rating for protection against solid intrusions and comes with a toggle switch actuator that indicates ON, OFF, and trip status clearly.

The device is designed for DIN rail mounting, facilitating straightforward panel integration and installation. Compact form factor dimensions are 85mm in height, 54mm in width, and 74mm in depth, accommodating space-conscious electrical enclosures.

Additional safety features include a padlockable toggle for maintenance safety and excellent electrical durability rated for 20000 cycles. The breaker is rated to operate within ambient temperatures ranging from -25 °C to 70 °C and can withstand relative humidity up to 95% at 55 °C. Manufactured in Hungary, this Schneider Electric breaker is ideal for use in industrial plants, commercial buildings, HVAC systems, and manufacturing units requiring reliable circuit protection.

Thermal magnetic tripping mechanism ensures reliable protection against overload and short circuits. Type C tripping characteristic suitable for general applications. Rated voltage of 400V AC supports various industrial and commercial electrical installations.

High breaking capacity of 6000A for enhanced safety during faults. Compact design with dimensions 85mm height, 54mm width, and 74mm depth. Toggle switch reset actuator for easy operation with ON/OFF and trip indication. Mounts easily on DIN rail for standardized installation.

IP20 ingress protection rating provides protection against solid objects. Compliant with international standards IEC/EN 60898-1 and 60947-2. Padlockable design adds extra safety during maintenance. Explore the Schneider Electric Acti9 range and other premium electrical protection solutions at EnvMart for quality and performance guaranteed.
