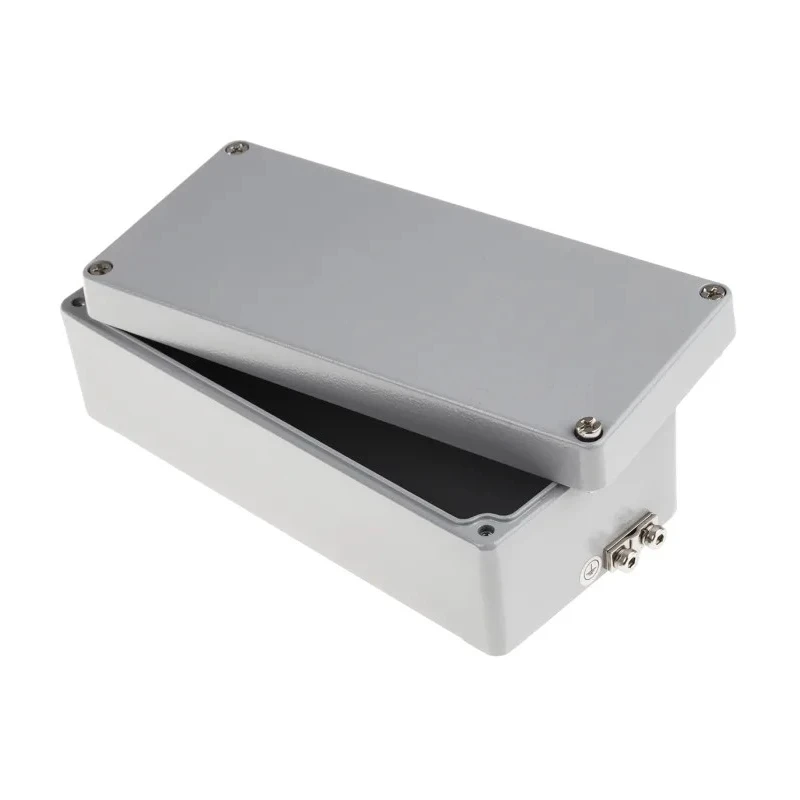

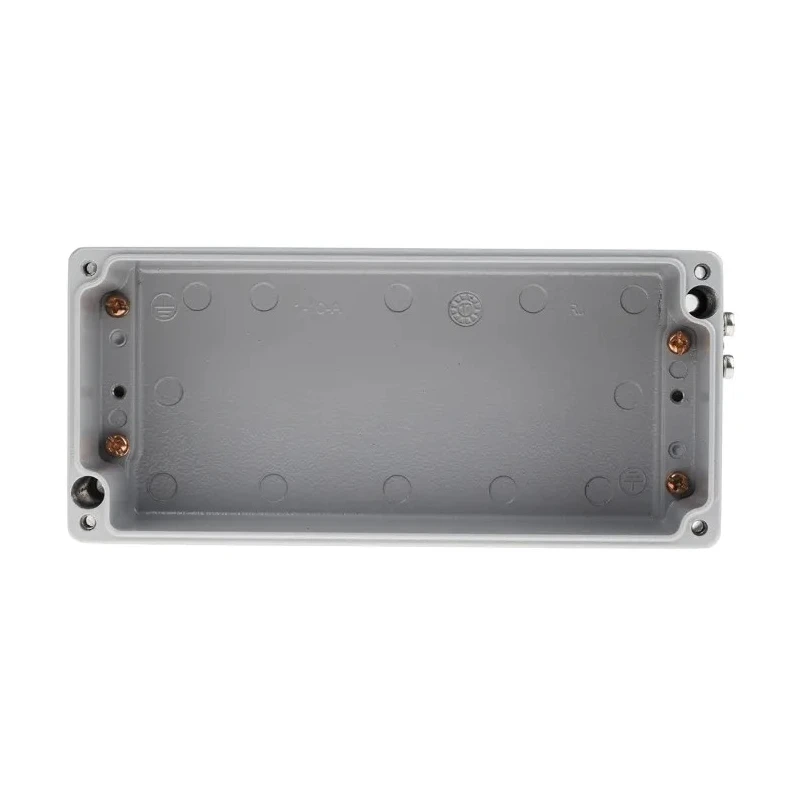

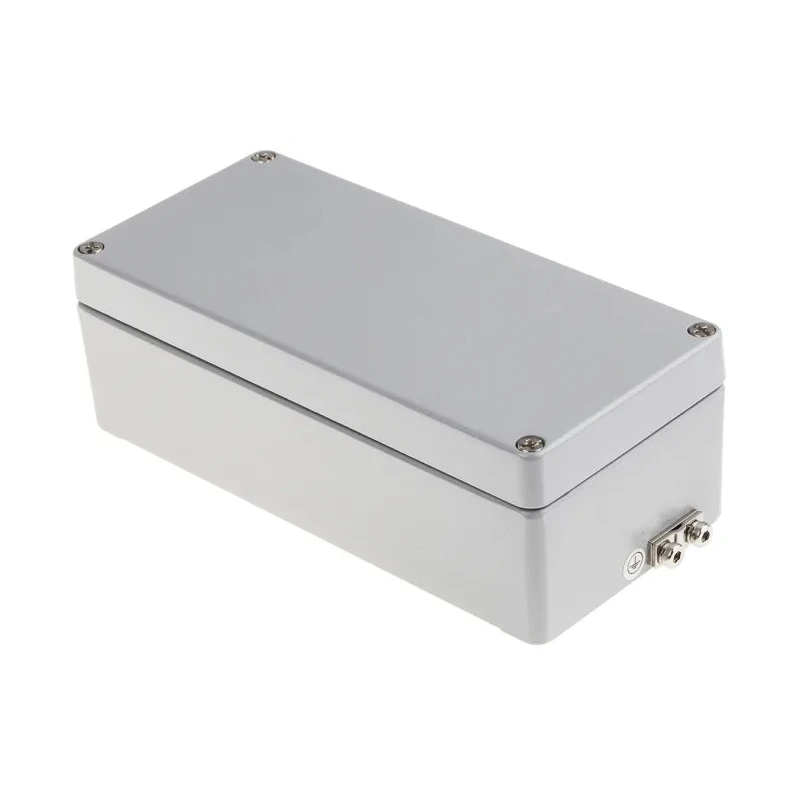

RS PRO Grey Lid Aluminium Enclosure, IP66, IP68, IP67, IP65, IK09, 57 mm x 175 mm x 80 mm IP66
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Model | IP66 |
| IP Rating | IP66, IP68, IP67, IP65 |
| Service Temperature | -50°C to 135°C |
| Series | RS PRO |
| External Width | 80mm |
| External Height | 57mm |
| Shielding | Unshielded |
| Hazardous Area Certification | IECEx, ATEX |
| External Length | 175mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Silicon |
| Internal/external earthing | 4 mm2 to 120 mm2 internal and external |
| • Mechanical Strength | in accordance with 60079-0, impact energy 7 Nm |
| • Protection Class | EN60529, IP66 |
Key Features
- Constructed from high-quality AISi 12 aluminium with a grey powder coated finish.
- Certified for hazardous locations with ATEX and IECEx approvals supporting explosion-proof use.
- Equipped with stainless steel captive lid screws and silicon gaskets for excellent sealing.
- Wide service temperature range from -50°C to 135°C ensuring reliable operation in extreme conditions.
- Suitable internal and external earthing capabilities for conductor sizes 4 mm² to 120 mm².
- Mechanical strength compliant with impact energy 7 Nm and EN60529 IP66 protection class compliance.
- Designed for applications in process control, automation, mining, locomotives, crane hoists, solar panels, load cells, oil meters, and high torque brakes.
- Set includes enclosure body, cover, and four cover screws for easy installation.
Product Description
RS PRO IP66 Grey Lid Aluminium Enclosure is manufactured from robust AISi 12 diecast aluminium with a protective grey powder coated finish, ensuring durability in harsh industrial environments. Featuring an IP66, IP68, IP67, IP65 ingress protection rating and IK09 impact resistance, this enclosure is designed to safeguard sensitive electrical and electronic components against dust, water, and mechanical impacts.
Certified under ATEX and IECEx standards, this enclosure is explosion-proof and suitable for use in hazardous atmospheres, making it ideal for process control, industrial automation, and mining sectors. Its service temperature range of -50°C to 135°C allows for dependable operation in extreme temperatures.
The enclosure is equipped with stainless steel captive lid screws and silicon gaskets guaranteeing superior sealing performance. It supports internal and external earthing for conductor sizes ranging from 4 mm² to 120 mm², ensuring safe electrical grounding.
Compliance with IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-31 standards and mechanical strength impact energy of 7 Nm attest to its rugged design. The enclosure measures 57 mm in height, 175 mm in length, and 80 mm in width, providing ample space for housing electrical components.
High-quality AISi 12 aluminium body with grey powder coating for corrosion resistance. ATEX and IECEx certification for explosion-proof applications. IP66, IP68, IP67, and IP65 rated for excellent environmental protection.
IK09 impact rating for mechanical robustness. Silicon gasket and stainless steel captive lid screws for secure sealing. Wide temperature range from -50°C to 135°C for versatile use. Supports earthing for conductor sizes 4 mm² to 120 mm².
Compliant with IEC and EN standards, suitable for industrial use. Includes enclosure body, cover, and 4 cover screws.
This RS PRO aluminium enclosure is suitable for protecting electrical and electronic equipment in industrial, laboratory, manufacturing, process control, and commercial applications. Its robust construction and certifications ensure reliable performance even in explosive atmospheres, making it a trusted choice for demanding environments.
Explore more RS PRO electrical enclosures and components on EnvMart to cater to all your industrial and automation needs.
Explore more products in our General Purpose Enclosures category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 57 mm in height, 175 mm in length, and 80 mm in width.
It operates within a service temperature range of -50°C to 135°C.
This enclosure has multiple ingress protection ratings: IP66, IP68, IP67, and IP65, ensuring excellent protection against dust and water.
It is certified under ATEX and IECEx standards, making it suitable for explosion-proof applications in hazardous atmospheres.
The enclosure complies with mechanical strength standards in accordance with IEC/EN 60079-0, with an impact energy rating of 7 Nm.
It is constructed from high-quality AISi 12 aluminium with a protective grey powder-coated finish.
It features silicon gaskets and stainless steel captive lid screws for superior sealing performance.
It supports internal and external earthing for conductor sizes ranging from 4 mm² to 120 mm².
It is suitable for applications in process control, industrial automation, mining, locomotives, crane hoists, solar panels, load cells, oil meters, and high torque brakes.
This model has an IK09 impact resistance rating, indicating its robustness against mechanical impacts.
The set includes the enclosure body, cover, and four cover screws for easy installation.
The country of origin for this enclosure is India.
