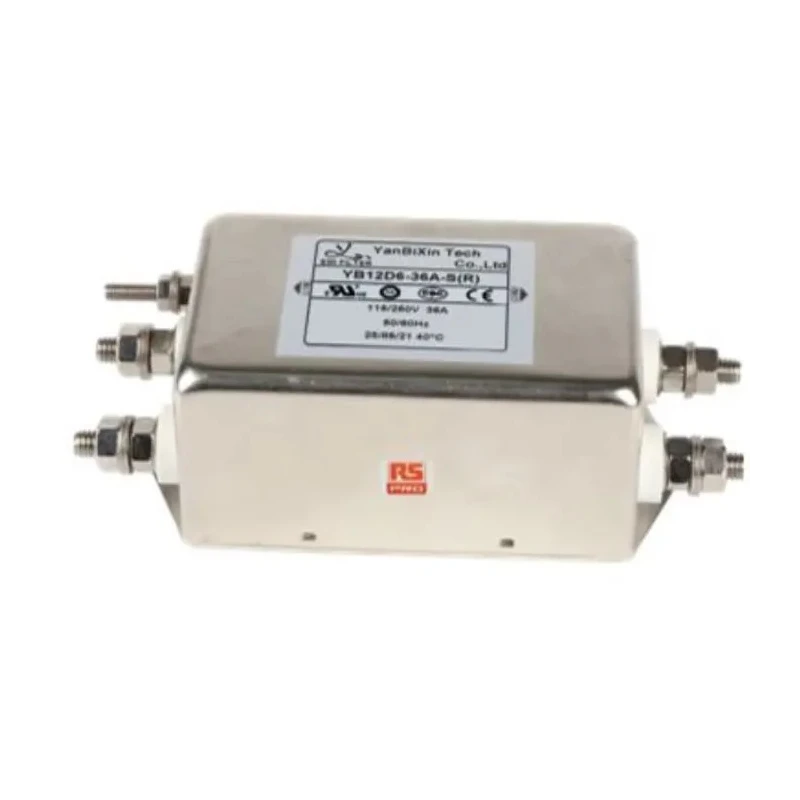

RS PRO Chassis Mount Power Line Filter 36 A 250V AC 50Hz 60Hz Single Phase Screw Termination 237-8694
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 44.5mm |
| Length | 114mm |
| Model | 237-8694 |
| Depth | 57mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 1 |
| Resistance | 2.2mΩ |
| Capacitance | 0.22μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 36A |
| Number of Phases | 1 |
| Leakage Current | 1.2mA |
| Maximum Voltage | 250V ac |
| Inductance | 20.5mH |
| Termination Style | Screw |
Key Features
- Compact filter suitable for single-phase electrical equipment.
- Features screw termination style ensuring secure connections.
- Operates effectively within -25°C to 85°C temperature range.
- Reduces conducted interference and protects against transient voltage spikes.
- Compliance with UL1283, IEC, EN 60939, CSA C22.2, and CQC standards.
- Compact dimensions of 114mm length, 57mm depth, and 44.5mm height.
- Low leakage current of just 1.2mA for safe operation.
- Inductance of 20.5mH and capacitance of 0.22μF to effectively suppress RFI noise.
Product Description
RS PRO 237-8694 is a high-quality chassis mount power line filter designed to protect electronic devices from interference and transient voltage spikes. Rated for a maximum current of 36 A and a maximum voltage of 250V AC, it supports operation at 50 Hz and 60 Hz frequencies, making it suitable for a wide range of single-phase electrical applications.
This compact power line filter features a screw termination style for easy and secure mounting on chassis surfaces. Its operating temperature range from -25°C to 85°C allows it to perform reliably in diverse environmental conditions.
The filter incorporates an inductance of 20.5mH and a capacitance of 0.22μF, which work together to significantly reduce conducted radio frequency interference (RFI) and protect sensitive circuits from damage.
With leakage current limited to 1.2mA and a low resistance of 2.2mΩ, the filter ensures efficient power delivery while maintaining safety. Its dimensions of 114mm length, 57mm depth, and 44.5mm height enable integration into small to medium-sized machines and household equipment.
This RS PRO filter meets multiple international standards including UL1283, IEC, EN 60939, CSA C22.2 No.8, and CQC GB 15288, ensuring compliance with stringent safety and performance criteria.
Ideal for industrial, medical, and commercial applications, this power line filter helps ensure equipment runs safely and reliably by preventing interference even in unpredictable electromagnetic environments.
Compact design for easy chassis mounting. Effective suppression of electromagnetic interference. High-temperature operation and durability. Compliant with multiple international safety standards. Suitable for a wide range of single-phase equipment.
Explore the RS PRO range on EnvMart for high-quality industrial-grade electronic components.
Explore more products in our Power Line Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this power line filter is 36 A.
It supports a maximum voltage of 250V AC.
The operating temperature range is from -25°C to 85°C.
This filter can operate effectively at both 50 Hz and 60 Hz frequencies.
It features a screw termination style for secure connections.
The dimensions are 114mm in length, 57mm in depth, and 44.5mm in height.
The inductance value is 20.5mH.
The capacitance is 0.22μF.
The leakage current is limited to 1.2mA.
It complies with UL1283, IEC, EN 60939, CSA C22.2, and CQC standards.
The resistance value is 2.2mΩ.
It is suitable for industrial, medical, and commercial applications, helping to protect equipment from interference.
