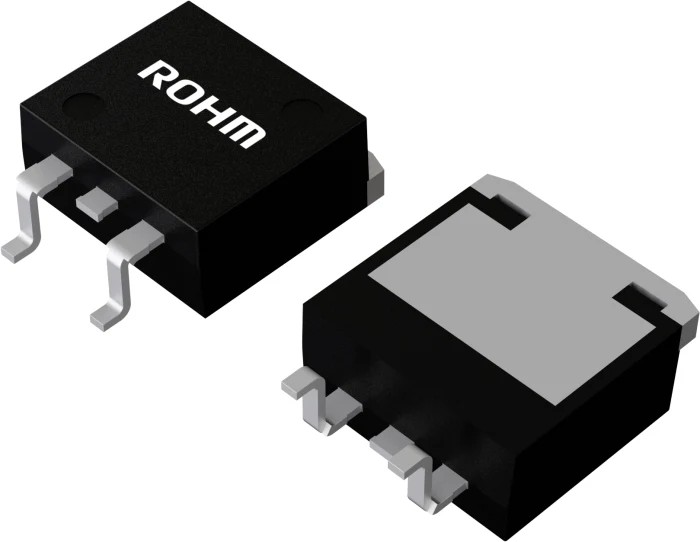

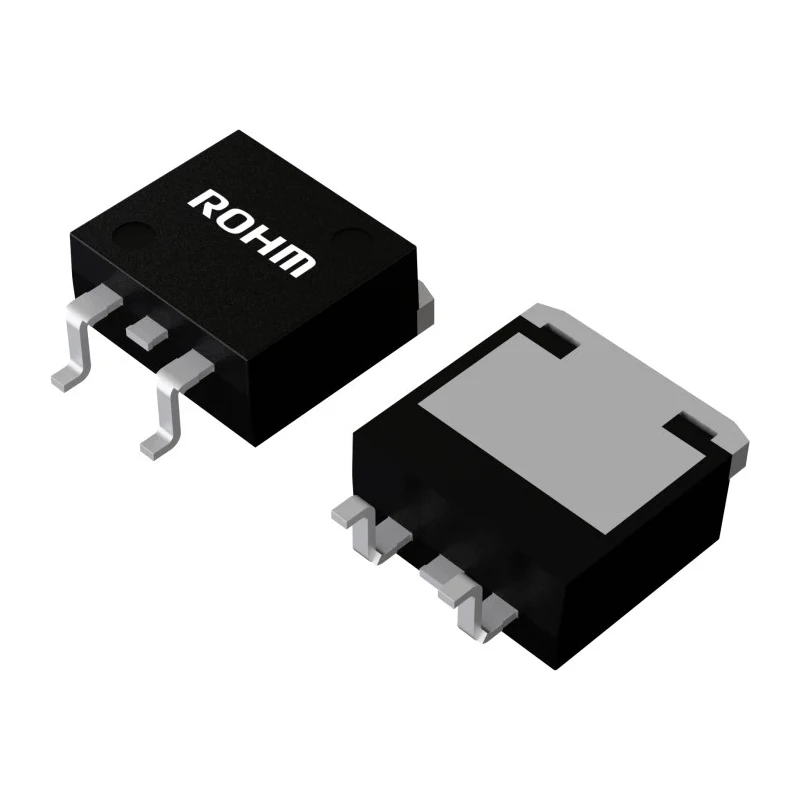

ROHM Single Fast Recovery Switching Diode 350 V TO-263 Package, 20 A, 3-Pin RFUH25NS3STL
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RFUH25NS3STL |
| Mount Type | Surface |
| Series | RFUH25NS3S |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Peak Reverse Recovery Time trr | 10ns |
| Maximum Forward Current If | 20A |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 350V |
Key Features
- This diode features a surface mount TO-263 package with three pins for efficient electrical connection.
- Maximum forward current rating is 20 amperes, suitable for high current applications.
- Peak reverse repetitive voltage is rated at 350 volts, ensuring reliability in switching circuits.
- The diode exhibits a fast peak reverse recovery time of 10 nanoseconds for efficient switching.
- Operating temperature range from -55°C to 150°C supports robust performance under varied conditions.
- Peak non-repetitive forward surge current capability of 100 amperes for transient currents.
- Designed to improve efficiency and reduce switching losses in power supplies.
- Compliant with RoHS standards, ensuring environmental safety.
Product Description
The ROHM RFUH25NS3STL is a single fast recovery switching diode designed for high efficiency and low switching loss applications in power electronics. Packaged in a thermally efficient TO-263 surface mount package, this three-pin diode supports a rectified forward current of 20 amperes and withstands a peak reverse voltage of 350 volts, making it suitable for use in switching power supplies and other high current circuits.
This diode offers a very fast peak reverse recovery time of 10 nanoseconds, facilitating minimal switching losses and improving overall circuit performance. It features a low forward voltage drop of approximately 1.45 V, reducing power dissipation during conduction.
With an operating temperature range from -55°C to 150°C, the component offers reliability across a wide range of environmental conditions. The diode also supports a peak non-repetitive forward surge current of 100 amperes, allowing it to tolerate transient high currents without damage.
The RFUH25NS3STL series is RoHS compliant, ensuring it meets environmental and safety regulatory standards. Its surface mount TO-263 package also enables compact and efficient PCB design for industrial, laboratory, and commercial switching power supply applications.
Surface mount TO-263 package with 3 pins for easy PCB integration. Maximum forward current of 20 A supports high power delivery. 350 V peak reverse repetitive voltage ensures circuit protection. Fast 10 ns reverse recovery time reduces switching losses.
Wide operating temperature range from -55°C to 150°C for robust performance. High surge current capability with 100 A peak non-repetitive forward surge current. Low forward voltage drop improves efficiency. RoHS compliant for environmental safety.
This diode is ideal for applications in industrial power supply designs, switching regulators, and power management circuits requiring efficient, reliable high-current switching diodes. Browse more semiconductor Switching Diodes and ROHM products on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating of this diode is 20 amperes, making it suitable for high current applications.
This model has a peak reverse repetitive voltage rating of 350 volts, ensuring reliability in switching circuits.
The diode exhibits a fast peak reverse recovery time of 10 nanoseconds, which helps reduce switching losses.
The operating temperature range for this diode is from -55°C to 150°C, supporting robust performance under varied conditions.
It comes in a surface mount TO-263 package, which allows for efficient electrical connection and compact PCB design.
The diode can handle a peak non-repetitive forward surge current of 100 amperes, allowing it to tolerate transient high currents without damage.
Yes, the RFUH25NS3STL is RoHS compliant, ensuring it meets environmental and safety regulatory standards.
This model features a 3-pin configuration, facilitating easy integration into circuits.
This diode belongs to the RFUH25NS3S series, designed for high efficiency and low switching loss applications.
The diode has a low forward voltage drop of approximately 1.45 V, which helps reduce power dissipation during conduction.
It is suitable for applications in industrial power supply designs, switching regulators, and power management circuits requiring efficient high-current switching.
The country of origin for this diode is India.
