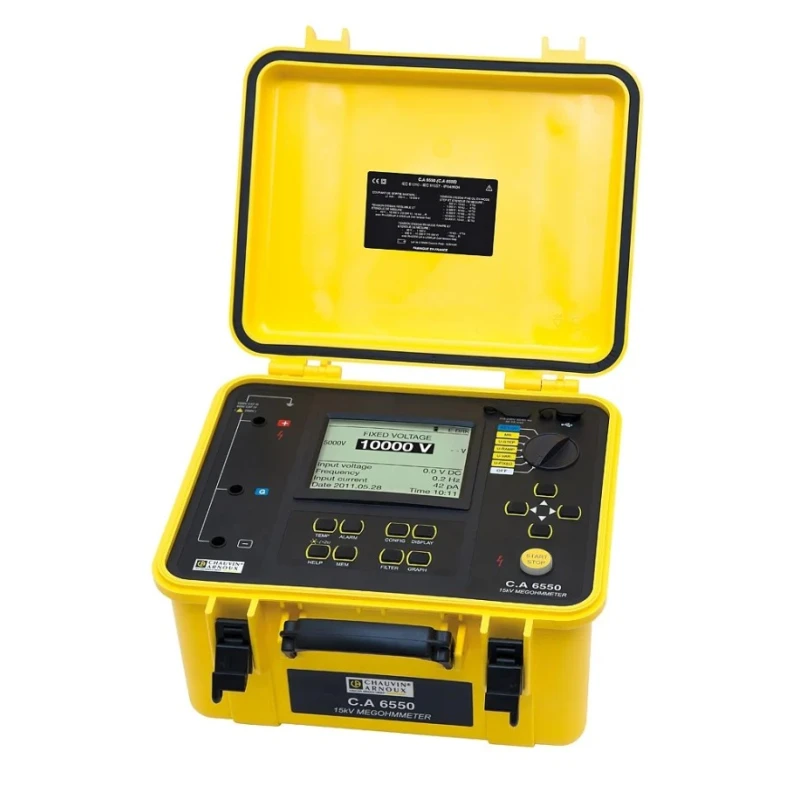

Chauvin Arnoux Insulation Tester 40 V Min, 10 kV Max CAT IV CA 6550 P01139715

Chauvin Arnoux CA 6550 insulation tester is a high-precision electrical test instrument designed for accurate insulation checks on equipment operating at voltages from 40 V up to a maximum of 10 kV. It is well-suited for industrial applications including maintenance of motors, generators, transformers, and other electrical installations. Its CAT IV safety category rating supports safe testing at up to 1 kV safety voltage levels, complying with strict safety standards in electrical environments.

The instrument features a high-resolution LCD display, providing real-time graphical representations of resistance and voltage over time. Measurement functions include resistance range from 10 kΩ to 30 TΩ and user-selectable fixed or programmable test voltages. The tester incorporates advanced ratio calculations such as DAR (Dielectric Absorption Ratio), PI (Polarization Index), DD (Dielectric Discharge), and ΔR ratios to help diagnose insulation condition and aging.

With a battery life of 2 hours, the CA 6550 supports portable field testing. It includes filters to optimize measurement stability and supports ramp and step voltage modes with programmable burn-in and early-break detection. Data storage capacity reaches 80,000 measurements with time stamping, facilitating thorough documentation and analysis. DataView software enables detailed report generation for maintenance records and quality assurance.

This tester's physical dimensions (340 mm length, 300 mm width, and 200 mm height) and weight of 6.2 kg make it portable yet robust for harsh industrial environments. It is CE certified, demonstrating compliance with European safety directives. The product is manufactured in France, ensuring high engineering standards.

Overall, the Chauvin Arnoux CA 6550 insulation tester is an essential instrument for electrical test and measurement tasks, offering precise, reliable, and safe insulation resistance measurements for industrial, laboratory, manufacturing, and maintenance applications.

Maximum test voltage of 10 kV and minimum test voltage of 40 V ensure versatile application. Equipped with a clear LCD display for easy reading of measurements. Battery life lasts approximately 2 hours for reliable field operation.

Designed with CAT IV safety category and rated for up to 1 kV safety voltage. Compact size with dimensions 340 mm (length) x 300 mm (width) x 200 mm (height). Robust construction weighing 6.2 kg for durable use in industrial environments.

CE certified to meet European safety and quality standards. Memory capacity of 80,000 measurements with real-time clock for efficient data logging. Supports advanced test modes including DAR, PI, DD, and ΔR ratios measurement.

Includes report generation capability via DataView software for comprehensive documentation.
