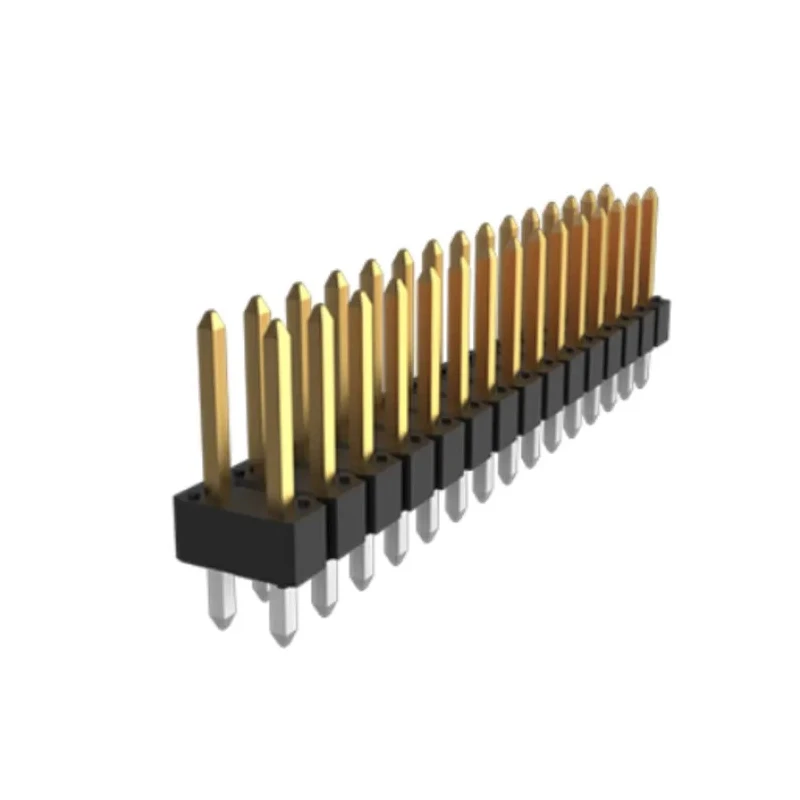

Amphenol Communications Solutions Bergstik Series Vertical Through Hole Pin Header 20 Contacts 2.54 mm Pitch 77313-118-20LF

Amphenol Communications Solutions model 77313-118-20LF Bergstik Series vertical through hole pin header is engineered for robust board-to-board, wire-to-board, and cable-to-board interconnections across a wide range of electronic devices and equipment.

This header features a 2.54 mm pitch spacing between 20 male phosphor bronze contacts arranged in 2 rows with an unshrouded style enhancing flexibility in mezzanine stacking and mating from top or bottom. Its thermoplastic housing offers resistance to high temperatures and compatibility with reflow soldering processes.

The connector system is designed for vertical orientation and through hole mounting, ensuring solid mechanical and electrical connections on PCBs. It supports a maximum current rating of 3 Amperes and a voltage withstand of 1500 Volts, making it suitable for demanding industrial, laboratory, and communication system applications.

Operating temperature ranges from -65°C to 130°C allow the component to function reliably in harsh environmental conditions. The tail pin and mating pin lengths of 3.05 mm and 5.84 mm respectively ensure durable physical and electrical contact during assembly and use.

This product complies with UL approval E66906, underscoring its adherence to stringent quality and safety regulations. Manufactured in France, it incorporates high temperature thermoplastic materials designed for dimensional stability through thermal cycling.

Constructed with thermoplastic housing material ensuring durability. Phosphor bronze contacts and plating provide excellent conductivity and corrosion resistance. Unshrouded design allows flexible mating options with dual entry from top or bottom.

Supports current up to 3A and voltage rating of 1500V suitable for various electronic applications. Operating temperature range from -65°C to 130°C enables use in harsh environments. Designed for through hole mount with vertical orientation for secure soldering.

Tail pin length of 3.05 mm and mating pin length of 5.84 mm ensure reliable electrical contact. Complies with UL approval E66906 guaranteeing quality and safety standards. Manufactured in France with high temperature thermoplastic for stability during reflow processes.

This Bergstik series pin header is ideal for use in industrial, laboratory, and communication applications where reliable board interconnections are critical. Its robust construction and compliance with international standards ensure long-term performance. Browse EnvMart’s Electronics Components category for similar high-quality PCB connectors and headers to complete your electronic assembly needs.
