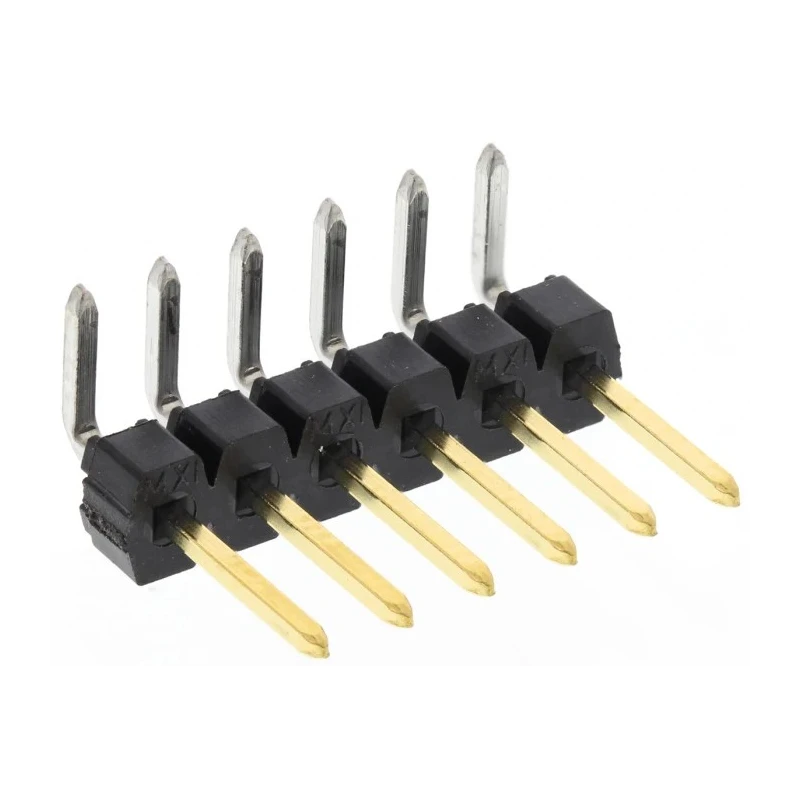

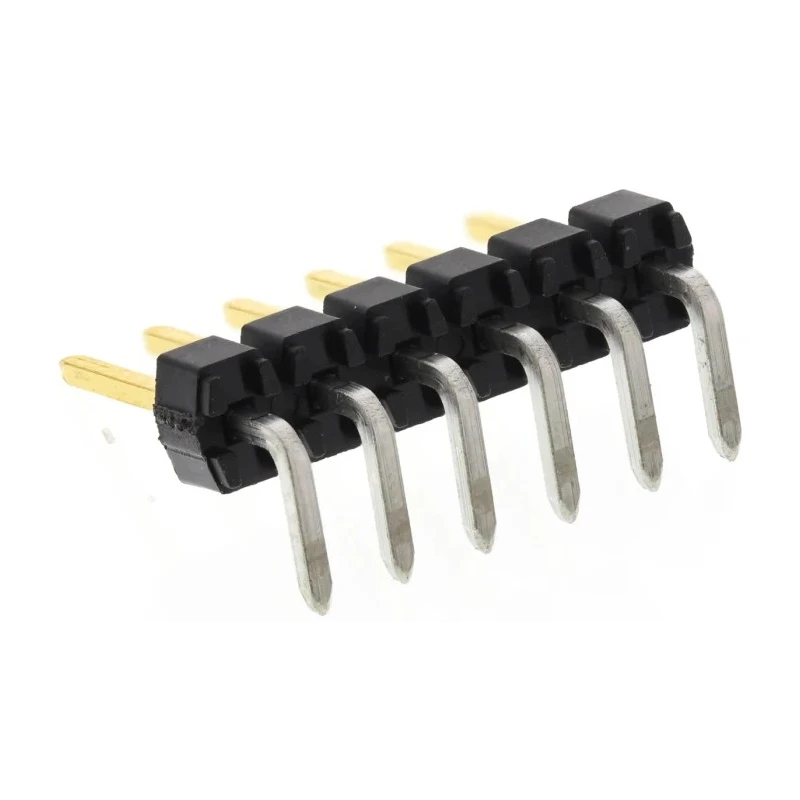

Molex C-Grid III Series Right Angle Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row Unshrouded 90121-0766
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Compliant with the C-Grid III interconnection system ensuring reliable board-to-board and wire-to-board connections.
- Constructed with brass contacts plated with gold for excellent conductivity and corrosion resistance.
- Features a right angle orientation and through-hole mount type for secure soldered connections.
- Offers a breakaway design allowing for size customization to suit diverse design requirements.
- Operates within a temperature range from -55°C to 125°C ensuring performance in varied environments.
- Rated for voltage up to 350V and current up to 3A for dependable electrical performance.
- Unshrouded male contacts provide high retention force and mechanical stability once soldered.
- Ideal for industrial, computer, medical, telecommunications, and automotive applications.
Product Description
Molex 90121-0766 C-Grid III Series Right Angle Through Hole Pin Header is a precision-engineered PCB connector designed for wire-to-board connections with superior reliability and mechanical stability. Featuring six male brass contacts with gold plating, these pin headers ensure low contact resistance and corrosion resistance essential for long-lasting electrical connections.
This product has a 2.54 mm pitch and single row configuration with a right angle orientation providing flexibility in PCB design layouts. The through-hole mount type and solder termination guarantee robust mechanical strength suitable for industrial and commercial environments.
The breakaway design allows the user to cut the header to the desired length facilitating custom installation requirements. Operating temperature ranges from -55°C to 125°C and a voltage rating of 350V with a 3A current capacity makes it suitable for demanding applications in medical equipment, telecommunications, automotive safety electronics, desktop PCs, servers, and industrial equipment.
The unshrouded contacts ensure a reliable mating connection with high retention force, safeguarding against disconnections and providing mechanical stability post-soldering. This product conforms to DIN 41651 and HE13/14 standards ensuring quality and interoperability.
Compliant with C-Grid III interconnection system standards. Brass contact material with gold plating for enhanced conductivity and durability. Right angle orientation with through-hole mounting and solder termination. Breakaway feature for customizable length.
Temperature operating range from -55°C to 125°C. Voltage rating of 350V and current rating of 3A. High mechanical stability and retention force once soldered. Suitable for industrial, telecommunications, medical, automotive, and computer equipment.
Explore the wide range of PCB headers and connectors at EnvMart for your electronic component needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 350V and a current of 3A, ensuring dependable electrical performance in various applications.
It features a pitch of 2.54 mm and includes 6 male contacts, making it suitable for specific PCB layouts.
This unit utilizes a through-hole mount type, providing secure soldered connections for enhanced mechanical stability.
It operates within a temperature range from -55°C to 125°C, allowing it to perform in varied environmental conditions.
The contacts are made of brass and plated with gold for excellent conductivity and corrosion resistance, while the housing material is polyester.
Yes, it features a breakaway design that allows for size customization, facilitating diverse design requirements.
This model has a right angle orientation, which provides flexibility in PCB design layouts.
Yes, it conforms to DIN 41651 and HE13/14 standards, ensuring quality and interoperability in applications.
It uses a solder termination type, which guarantees robust mechanical strength suitable for industrial and commercial environments.
This model is ideal for use in industrial, telecommunications, medical, automotive, and computer equipment applications.
The tail pin length is 2.9 mm, which is designed for secure soldering to a PCB.
The mating pin length is 6.75 mm, ensuring a reliable connection once soldered.
