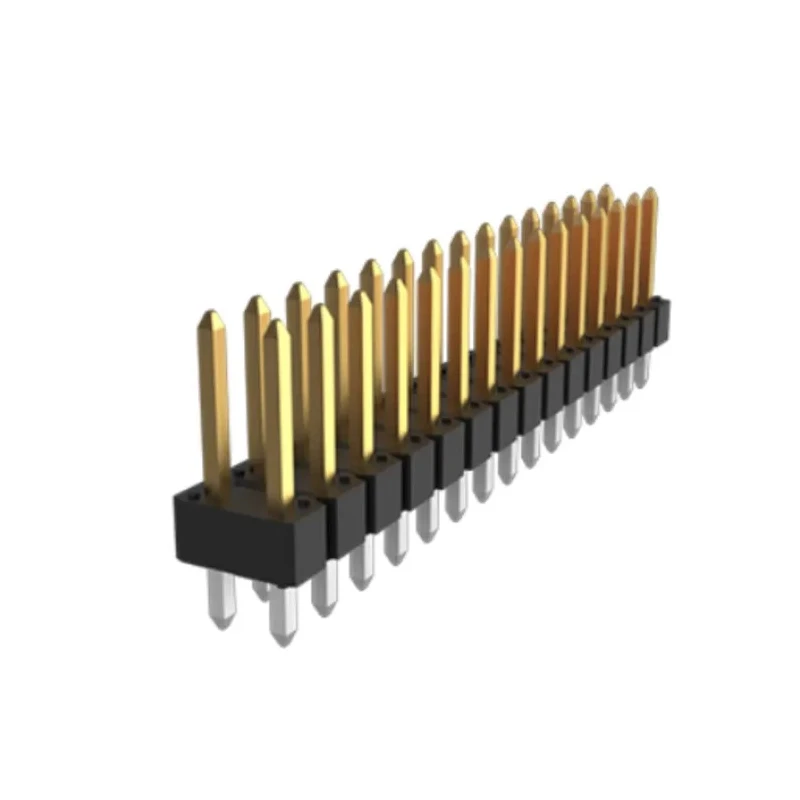

Amphenol Communications Solutions BergStik Series Vertical Through Hole Pin Header 12 Contacts 2.54mm Pitch 2 77313-118-12LF

Amphenol Communications Solutions 77313-118-12LF is a BergStik Series vertical through hole pin header, specifically engineered to deliver reliable interconnect solutions for a range of electronic devices. This connector features 12 robust male contacts, made from phosphor bronze, providing high conductivity and mechanical durability in board-to-board and wire-to-board applications.

With a standard pitch of 2.54mm and a 2 row configuration, the pin header integrates seamlessly into PCBs, allowing for dual entry mating from either top or bottom for greater assembly flexibility. The unshrouded design contributes to ease of access, making it well-suited for mezzanine configurations and other applications demanding various height options.

Constructed from high-temperature thermoplastic, this pin header withstands reflow soldering processes and maintains integrity in conditions ranging from -65°C to 130°C. The through-hole mount type ensures secure fits and lasting solder bonds on printed circuit boards, addressing both power and signal transmission needs.

Pin header type suited for PCB board-to-board and wire-to-board connections. Features 12 phosphor bronze male contacts for reliable electrical performance. Pitch spacing of 2.54mm for standard header compatibility. Mount type is through hole for robust soldering onto PCBs.

Unshrouded design offers versatile mating options, allowing dual entry from top or bottom. High temperature thermoplastic housing supports reflow compatibility. UL Approval (E66906) ensures recognized safety standard. Rated for 3A current and up to 1500V voltage.

Suitable for mezzanine/stacked PCB applications in electronics manufacturing.

Further technical details highlight a tail pin length of 3.05mm, mating pin length of 5.84mm, solder termination for lasting connections, and compatibility with a wide range of industrial, commercial, and manufacturing electronic equipment. Board-to-board connector systems such as this BergStik Series part are crucial in sectors like automation, instrumentation, consumer electronics, and industrial control systems where performance, flexibility, and reliability are paramount.
