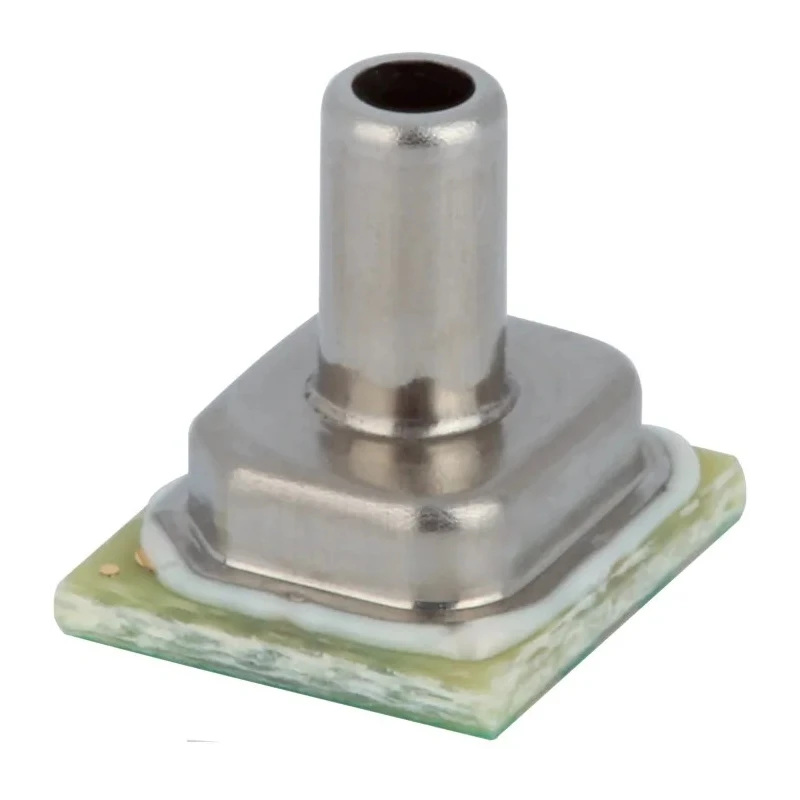

Honeywell Technologies Piezoresistive Pressure Sensor, Polyamide Body, 6.89 kPa Max Pressure, -40°C to ABP2MRRT001PD2A3XX

Honeywell Technologies ABP2MRRT001PD2A3XX piezoresistive pressure sensor is engineered for precise measurement of low pressure differentials with a maximum operating pressure of 6.89 kPa. Housed in a durable polyamide body, it supports operation from -40°C to +110°C, making it suitable for use across a wide range of industrial and medical applications.

This compact board-mount transducer converts pressure changes into electrical signals, providing updated compensated pressure and temperature values at an approximate 200 Hz rate. Temperature compensation is achieved via an on-board ASIC, ensuring accuracy and stability in challenging environments.

The sensor’s fast 7.5 ms response time facilitates rapid measurement updates essential in ventilators, portable breathing equipment, and pneumatic control systems. It offers versatile communication interfaces including 24-bit digital outputs compatible with I2C or SPI protocols and a ratiometric analogue output for direct circuit interfacing.

The polyamide material combined with the optional liquid-media gel coating protects the electronics against non-corrosive liquids and reduces the effects of condensation, enabling reliable performance even in wet or condensating environments. Ultra-low power consumption further enhances suitability for battery-powered or portable medical devices.

Applications include HVAC transmitters, blood pressure monitoring devices, patient care apparatus, CNG pressure line monitoring, and IoT sensor networks for remote telemetry. Its ISO 9001 and RoHS compliances underscore manufacturing quality and regulatory adherence.

Compact piezoresistive pressure sensing with low power consumption. Wide operating temperature range and onboard temperature compensation. Fast response time ensures accurate real-time pressure monitoring. Polyamide construction with liquid-media gel option for enhanced durability.

Multiple communication options support varied integration needs. Applicable for medical, HVAC, pneumatic, and IoT industrial systems.

This Honeywell Technologies pressure sensor provides reliable, precise measurements in demanding environments, reinforcing its importance in industrial and medical instrumentation. Explore EnvMart’s Pneumatic Pressure Sensors category for more solutions.
