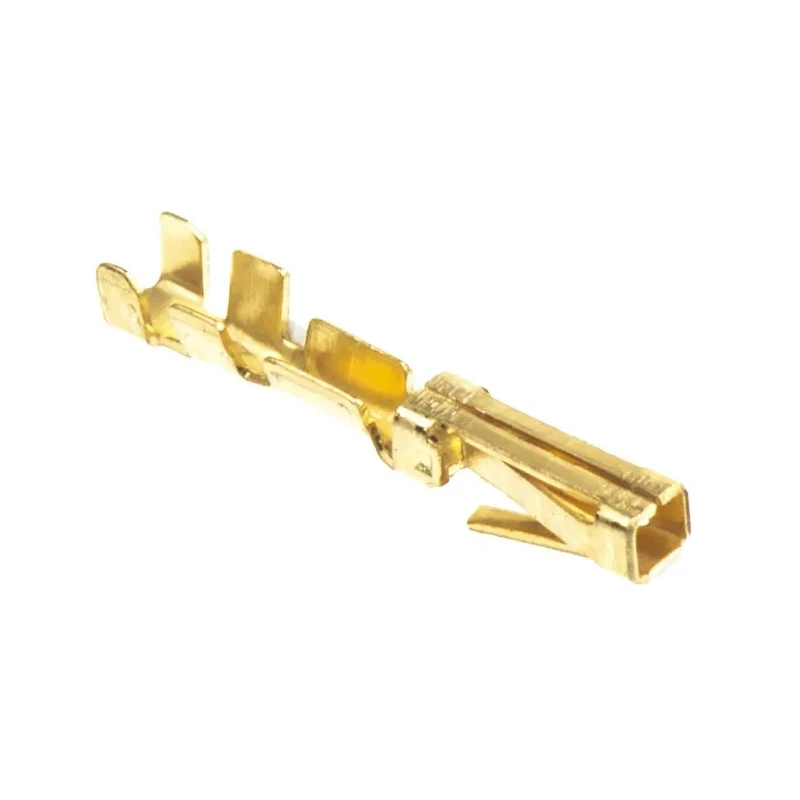

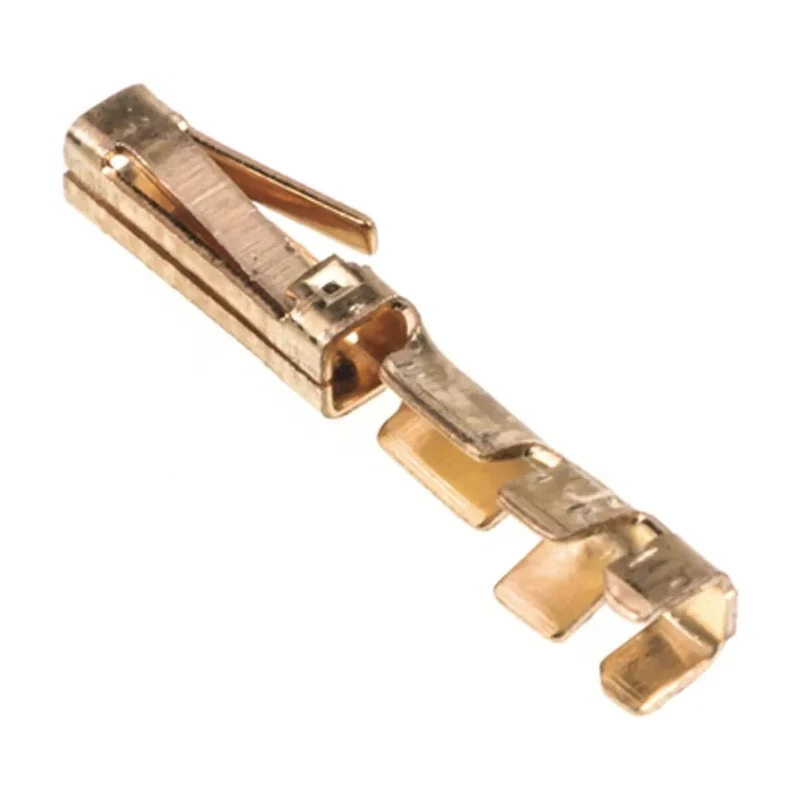

TE Connectivity Female Crimp Terminal AMPMODU MOD II Series 3A Current Gold Plated 181271-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 18.8mm |
| Model | 181271-2 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Crimp |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| For Use With | AMPMODU MOD II Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.04mm² |
| Maximum Wire Size mm² | 0.08mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 28AWG |
| Maximum Contact Resistance | 7mΩ |
Key Features
- Compatible with AMPMODU MOD II connector housing for reliable connections.
- Constructed with phosphor bronze and gold plated contacts for optimal conductivity.
- Supports wire sizes from 30 AWG (minimum) to 28 AWG (maximum).
- Rated for a maximum continuous current of 3 amperes.
- Features crimp termination for secure wire attachment.
- Operating temperature range from -40°C to 80°C.
- Contact resistance capped at 7 milliohms, ensuring low electrical loss.
- Terminal length of 18.8 mm facilitating compact assembly.
Product Description
TE Connectivity 181271-2 Female Crimp Terminal from the AMPMODU MOD II series offers a robust and precise solution for crimp contact applications in electronics and electrical systems. This component is engineered to fit AMPMODU MOD II connector housings, ensuring reliable and efficient wire-to-board connections in various industrial environments.
Constructed with phosphor bronze contact material and coated with gold plating, this terminal guarantees excellent electrical conductivity and corrosion resistance. It supports wire sizes ranging from 30 AWG minimum to 28 AWG maximum, making it versatile for different wiring needs. The maximum current rating of 3 amperes allows it to handle a moderate electrical load, suitable for signal and low power circuits.
The terminal features a straight body style with a straight contact angle and socket contact type, offering secure crimp terminations compatible with automated assembly processes. Operating within a temperature range of -40°C to 80°C, this terminal is well-suited for automotive, telecommunications, gaming, medical, and portable device applications requiring durable and dependable connectors.
With a length of 18.8 mm, this crimp terminal facilitates compact circuit design and integration in dense electronic assemblies. The contact resistance is maintained below 7 milliohms, ensuring minimal signal loss and superior performance.
The AMPMODU Mod II interconnect system is a widely recognized standard for automation and control applications, combining economy and reliability. This terminal is part of that system, designed for wire-to-board connectivity with high precision and quality materials.
Compatible with AMPMODU MOD II connector housing for reliable connections. Phosphor bronze construction with gold plating for excellent conductivity. Supports wire sizes from 30 AWG to 28 AWG. Maximum contact resistance of 7 milliohms.
Rated for 3 A continuous current. Operates from -40°C to 80°C. Straight body, straight contact angle, socket contact type. Length of 18.8 mm for compact design. Ideal for automotive, telecommunications, gaming, medical, and portable devices.
This product delivers reliable performance in industrial, automotive, and telecommunications systems requiring effective wire crimping solutions. It is engineered for users needing precision contact terminals ensuring electrical integrity and mechanical stability. Choose TE Connectivity AMPMODU MOD II series for your electronic assembly needs with guaranteed quality and consistency.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum continuous current of 3 amperes.
It supports wire sizes ranging from 30 AWG (minimum) to 28 AWG (maximum).
The operating temperature range for this terminal is from -40°C to 80°C.
It is constructed with phosphor bronze and features gold plating for optimal conductivity.
The maximum contact resistance is capped at 7 milliohms, ensuring low electrical loss.
The terminal length is 18.8 mm, facilitating compact assembly.
This terminal is compatible with AMPMODU MOD II connector housing.
It features crimp termination for secure wire attachment.
It is suitable for automotive, telecommunications, gaming, medical, and portable device applications.
This terminal is a female crimp terminal.
This terminal belongs to the AMPMODU MOD II series.
The country of origin for this crimp terminal is India.
