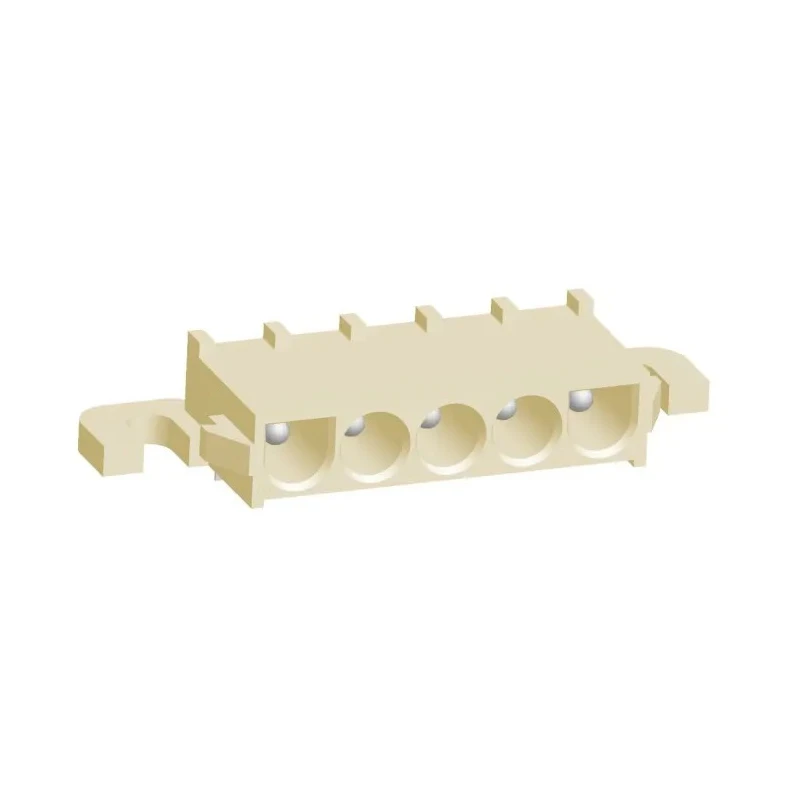

TE Connectivity Universal MATE-N-LOK PCB Header 5 Contacts 6.35mm Pitch Right Angle Through Hole 1969808-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 19A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | 0°C |
| Number of Rows | 1 |
| Pitch | 6.35mm |
| Standards/Approvals | Meets IEC 60335-1 and UL 94 V-0 |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a right angle orientation and through-hole mounting for secure PCB installation.
- Supplies five tin-plated phosphor bronze male contacts for reliable connectivity.
- 6.35 mm pitch and single row configuration, supporting up to 19A current at 600V.
- Made with glow wire compliant, high-flammability rated nylon housing for increased safety.
- Polarized and shrouded housing prevents mismating and provides finger-proof egg-crate design.
- Positive locking latch ensures strong mating retention even under vibration or shock.
- Suitable for desktop computers, HVAC systems, lighting, security systems, and industrial controls.
- Wide operational temperature range from 0°C to 105°C enhances application versatility.
Product Description
The TE Connectivity 1969808-1 Universal MATE-N-LOK series PCB header is a specialized right angle, through hole connector engineered for robust industrial, commercial, and electronic applications. It accommodates five male pins in a single row, each separated by a 6.35 mm pitch, enabling efficient and consistent power or signal distribution on printed circuit boards.
This header features a shrouded and glow wire compliant nylon housing, which meets stringent flammability safety ratings as demanded by IEC 60335-1 and UL 94 V-0 standards. The material selection not only offers high mechanical integrity but also improves safety in high-temperature environments. The tin-plated phosphor bronze contacts ensure reliable electrical conductivity over extended lifecycles and reduce the risk of corrosion.
A standout aspect of the 1969808-1 is its positive locking latch, which secures mating connectors and prevents accidental disconnections due to vibration or shock. The polarized design assures correct orientation during assembly, eliminating risks of mismating, while the finger-proof egg-crate structure enhances operational safety and ease of handling during PCB installation or maintenance.
Designed with flexibility in mind, the connector operates across a temperature range from 0°C to 105°C and supports current loads up to 19A at 600V. It is tailored for wire-to-board systems and is especially useful in applications such as household appliances, industrial control panels, networking storage, HVAC systems, lighting installations, and security infrastructure.
The through hole mounting supports strong solder joints, essential for industrial-grade circuit board assemblies. The 1969808-1 is part of the Universal MATE-N-LOK platform, offering compatibility with a host of other connectors and housings within this family for scalable build-outs.
To browse more connectivity and PCB header components from TE Connectivity or for application-specific variants, explore the EnvMart Electronics Components and PCB Header categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 19A and a voltage rating of 600V.
It features a 6.35mm pitch and a right angle orientation for mounting.
The housing is made from nylon, which is glow wire compliant and has a high-flammability rating.
This model has five male contacts arranged in a single row.
It meets the IEC 60335-1 and UL 94 V-0 standards for safety and flammability.
The connector uses a solder termination type for secure connections.
The operational temperature range for this connector is from 0°C to 105°C.
It is designed for through hole mounting, which supports strong solder joints.
Yes, it has a positive locking latch that ensures strong mating retention even under vibration or shock.
The contacts are made from tin-plated phosphor bronze, ensuring reliable electrical conductivity.
It is suitable for applications such as desktop computers, HVAC systems, lighting, security systems, and industrial controls.
The connector features a polarized and shrouded housing that prevents mismating and provides a finger-proof design for safety.
