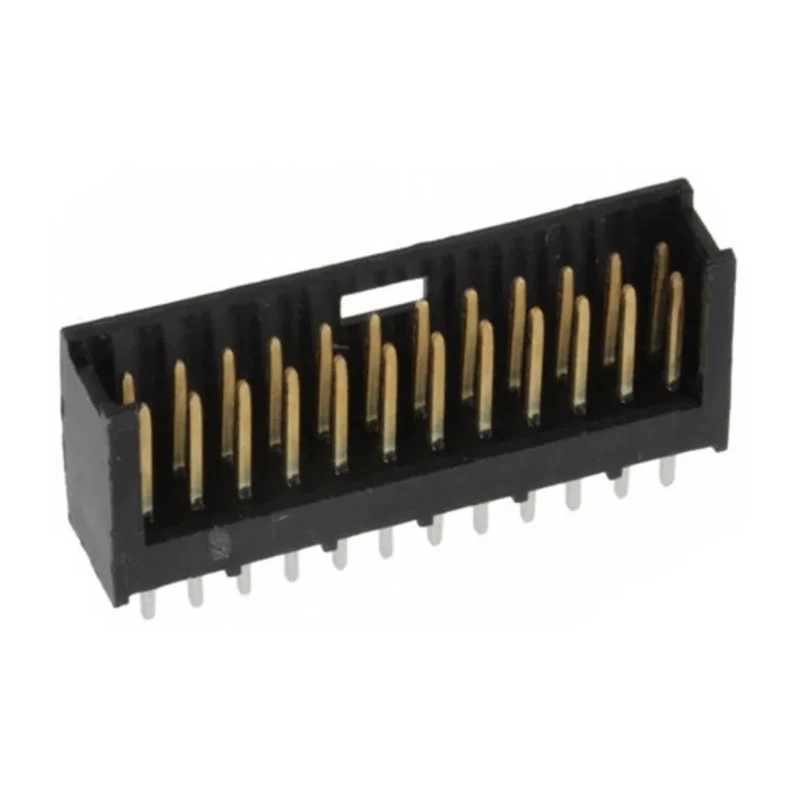

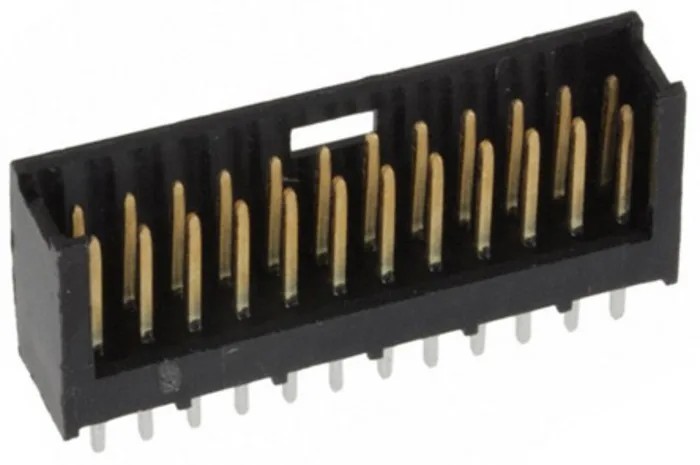

TE Connectivity AMPMODU MOD II Series Straight Through Hole PCB Header, 24 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 280521-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280521-2 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Constructed with thermoplastic housing for durability and insulation.
- Supports 3A current rating at up to 750V voltage capacity.
- Gold-plated brass contacts ensure reliable conductivity and corrosion resistance.
- Shrouded design provides pin protection and polarization to avoid mismating.
- Through hole mount type with straight orientation for robust PCB connection.
- Operates across -65°C to 105°C temperature range suitable for industrial applications.
- Detent positive locking mechanism ensures secure mating with connectors.
- Tail pin length is 3.5 mm for efficient solder termination.
Product Description
TE Connectivity 280521-2 AMPMODU MOD II Series Straight Through Hole PCB Header is a high-quality connector designed for industrial and electronic applications. Featuring 24 male contacts arranged in 2 rows with a precise 2.54 mm pitch, this shrouded header offers enhanced pin protection and polarization to prevent mismating.
The connector housing is made from durable thermoplastic providing electrical insulation and mechanical strength. The brass contacts are plated with gold to ensure excellent conductivity and resistance to corrosion over extended use. Tail pins measure 3.5 mm in length and are designed for through-hole solder mounting, promoting secure and stable PCB connections.
Rated for a current capacity of 3A and voltage up to 750V, this PCB header can withstand a wide temperature range from -65°C to 105°C, making it suitable for harsh industrial environments. Its detent positive locking mechanism offers a reliable connection that resists accidental disconnection, ideal for board-to-board and wire-to-board interface systems.
Applications for this connector include automotive control modules, telecommunications equipment, industrial and test machinery, medical instrumentation, and data storage systems. The AMPMODU Mod II interconnect system it belongs to is known for its compact design, reliability, and economical performance in automation and control areas.
Constructed with thermoplastic housing for durability and insulation. Supports 3A current rating at up to 750V voltage capacity. Gold-plated brass contacts ensure reliable conductivity and corrosion resistance. Shrouded design provides pin protection and polarization to avoid mismating.
Through hole mount type with straight orientation for robust PCB connection. Operates across -65°C to 105°C temperature range suitable for industrial applications. Detent positive locking mechanism ensures secure mating with connectors.
Tail pin length is 3.5 mm for efficient solder termination. Designed for board-to-board and wire-to-board connector systems. Ideal for automotive, telecommunications, industrial test equipment, medical, and storage applications.
Browse our Electronics & Electricals category for more PCB Headers and related components from leading brands such as TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3A and a voltage capacity of up to 750V.
This unit operates across a temperature range of -65°C to 105°C, making it suitable for industrial applications.
It features 24 male contacts arranged in 2 rows.
The pitch size of the contacts is 2.54 mm.
The housing is constructed from thermoplastic, while the contacts are made of brass and plated with gold for conductivity and corrosion resistance.
It uses a through-hole mounting type with a straight orientation for robust PCB connection.
The tail pin length is 3.5 mm, designed for efficient solder termination.
It has a detent positive locking mechanism that ensures secure mating with connectors.
It is suitable for applications including automotive control modules, telecommunications equipment, industrial test machinery, medical instrumentation, and data storage systems.
This model is shrouded, providing pin protection and polarization to avoid mismating.
It is designed for board-to-board and wire-to-board connector systems.
The country of origin for this PCB header is India.
