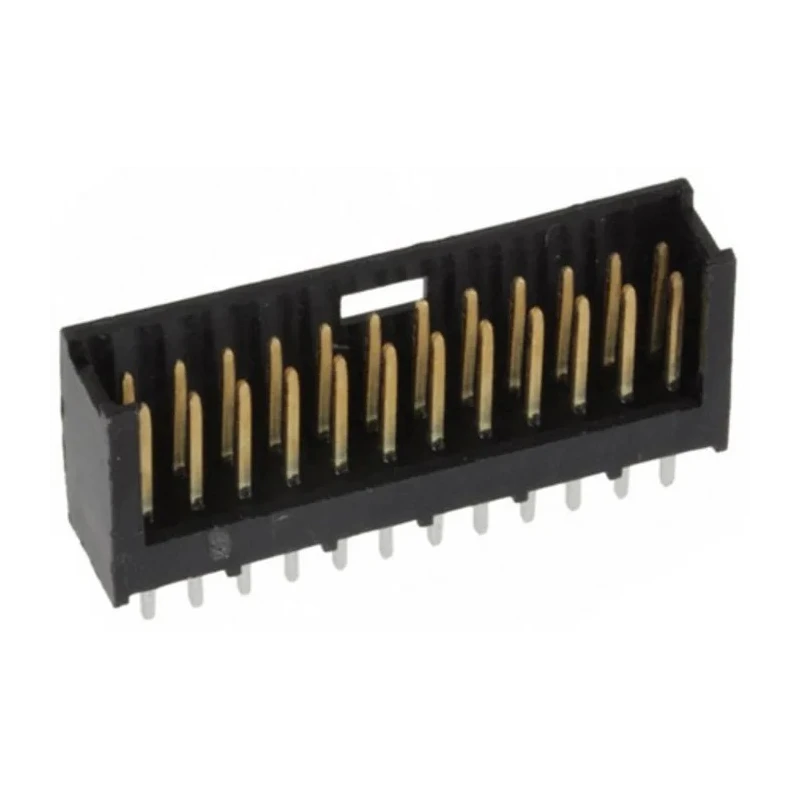

TE Connectivity AMPMODU MOD II Series Straight Through Hole PCB Header 24 Contacts 2.54 mm Pitch 2 Row Shrouded 280521-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280521-2 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features a 2.54 mm pitch with 24 gold-plated brass contacts.
- Constructed with thermoplastic housing for durability and heat resistance.
- Shrouded design offers pin protection and polarization to prevent mismating.
- Suitable for through-hole mounting on PCBs with straight orientation.
- Operates within temperature range of -65°C to 105°C.
- Supports a voltage rating of 750 V and current of 3 A per contact.
- Includes a detent positive locking mechanism to ensure secure connections.
- Tail pin length measures 3.5 mm for reliable solder termination.
Product Description
TE Connectivity 280521-2 AMPMODU MOD II Series straight through hole PCB header is a high-quality, shrouded board connector designed for applications requiring secure and reliable connections. This connector features a 2.54 mm pitch and 24 gold-plated brass contacts arranged in two rows. The thermoplastic housing is shrouded on three sides to offer enhanced pin protection and prevent damage during handling and assembly.
Designed for through-hole mounting and straight orientation, this header ensures precise alignment and robust mechanical stability when soldered onto a PCB. The housing’s polarization feature prevents mismating, and a detent window provides a positive locking mechanism for mating with compatible receptacles, ensuring connection integrity in industrial, automotive, and telecommunications equipment.
The product is rated for operation in environments with temperatures ranging from -65°C to 105°C and supports voltages up to 750 V and currents up to 3 A per contact. Its robust design makes it suitable for use in automotive controls, test instruments, medical devices, industrial machinery, computers, and storage equipment.
The AMPMODU Mod II interconnect system is recognized as a reliable and economical signal standard for automation and control applications, encompassing board-to-board, wire-to-board, and wire-to-wire connections in compact form factors.
Features a 2.54 mm pitch with 24 gold-plated brass contacts. Thermoplastic housing provides durability and heat resistance. Shrouded design with polarization to prevent mismating. Detent positive locking mechanism ensures secure connections.
Suitable for through-hole mounting with straight orientation. Temperature range from -65°C to 105°C for versatile applications. Supports 750 V voltage and 3 A current ratings. Tail pin length of 3.5 mm for reliable solder termination.
Packaging details ensure items are supplied ready for insertion into machinery, facilitating improved production efficiency. This product is ideal for use in a variety of industrial sectors including automotive, telecommunications, and manufacturing. Discover more connectors and electronic components in our vast EnvMart catalog for industrial and electronics applications.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.54 mm.
This model has 24 gold-plated brass contacts.
It supports a maximum voltage rating of 750 V.
The current rating per contact is 3 A.
It operates within a temperature range of -65°C to 105°C.
This header is designed for through-hole mounting.
The tail pin length measures 3.5 mm, suitable for reliable solder termination.
The housing is constructed from thermoplastic, providing durability and heat resistance.
This model features a shrouded design, which offers pin protection and polarization to prevent mismating.
It is suitable for applications in automotive controls, test instruments, medical devices, industrial machinery, computers, and storage equipment.
It includes a detent positive locking mechanism to ensure secure connections.
This header supports board-to-board and wire-to-board connections.
