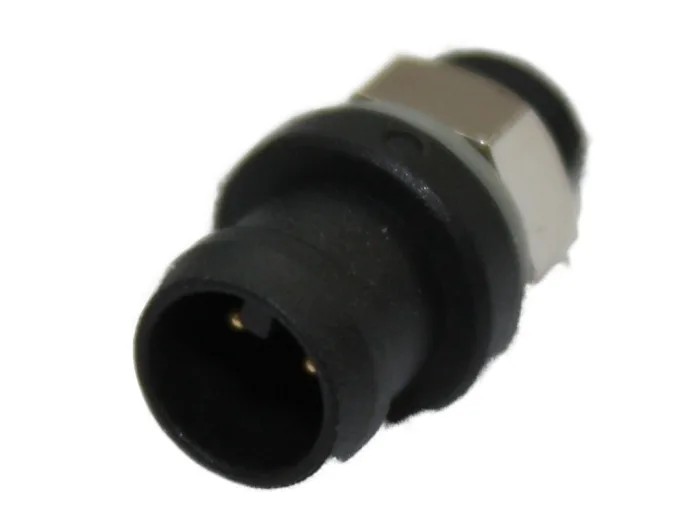

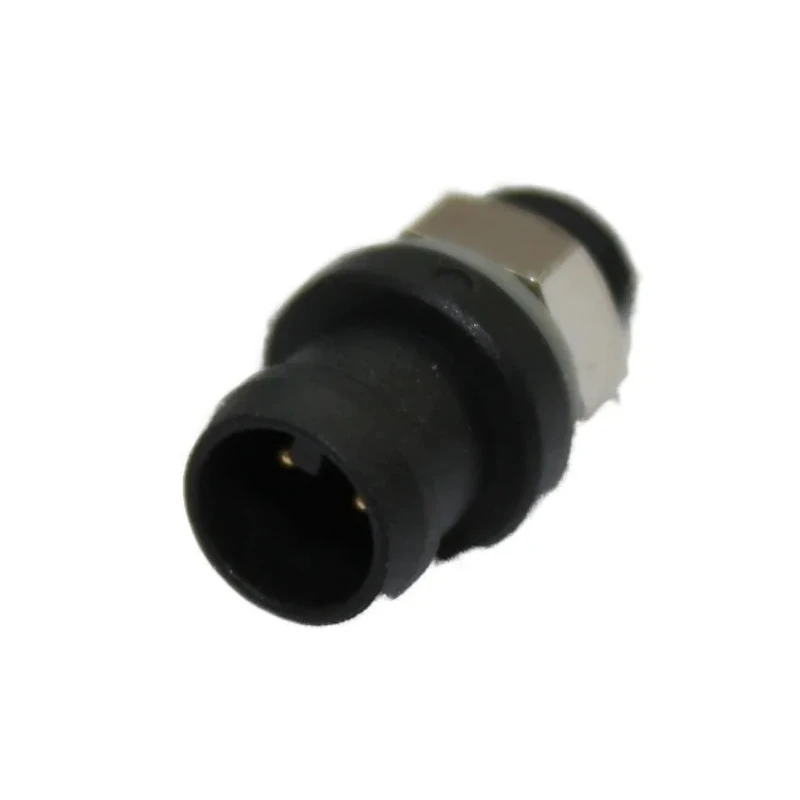

RS PRO Circular Connector Panel Mount Plug Male 2 Contacts M6 Connector IP67 300V 5A 231-7926
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 5A |
| Model | 231-7926 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 2 |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shell Size | 8.5 mm |
| Mating Type | Snap-In |
| Connector Size | M6 |
| Plug/Socket | Plug |
Key Features
- Offers high current capacity of 5A with operating voltage of 300V.
- Features a compact M6 connector size with an 8.5 mm shell diameter.
- Constructed with durable thermoplastic housing and gold-plated contacts for reliable connectivity.
- Supports solder termination and snap-in mating type for secure installation.
- Operates efficiently within temperature range from -40°C to 105°C.
- Designed with straight orientation and rear-potted panel mount for environmental sealing.
- IP67 rating ensures protection against dust and water ingress in harsh outdoor environments.
Product Description
RS PRO 231-7926 Circular Connector is a high-quality, industrial-grade panel mount plug designed with 2 contacts and M6 connector size, providing a robust electrical connection rated at 300V and 5A current capacity.
This connector features a thermoplastic housing that offers durability and environmental resistance, along with gold-plated contacts to ensure enhanced conductivity and corrosion resistance. It is designed with snap-in mating and solder termination, providing a secure and reliable installation suitable for demanding applications.
The connector’s IP67 rating guarantees dust-tight protection and resistance to water ingress, making it ideal for outdoor or harsh industrial environments. Its rear-potted panel mount design maintains the IP67 rating even when unmated, providing additional environmental sealing for sensitive electronics.
Operating temperature range from -40°C to 105°C allows use in extreme climates. The straight orientation and compact 8.5 mm shell size enable installation in space-restricted panels or equipment.
High current and voltage rating supports demanding electrical applications. Thermoplastic housing ensures mechanical stability and environmental protection. Gold-plated contacts guarantee reliable electrical performance.
Rear potted panel mount preserves seal integrity when connector is disconnected. IP67 certification confirms dust and water resistance compliance.
The RS PRO 231-7926 Circular Connector is part of the trusted RS PRO range of industrial connectors, offering engineers reliable and quality-assured components for electronic and power applications.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO Circular Connector has a current capacity of 5A.
It is rated for a maximum operating voltage of 300V.
This connector has an IP67 rating, ensuring protection against dust and water ingress.
The housing is made of thermoplastic, and the contacts are gold-plated for enhanced conductivity and corrosion resistance.
It operates efficiently within a temperature range from -40°C to 105°C.
This model supports solder termination, providing a secure and reliable connection.
The shell diameter of this connector is 8.5 mm.
This connector features 2 contacts.
It is designed for panel mount installation.
This model is classified as an M6 connector size.
It utilizes a snap-in mating type for secure installation.
The connector is manufactured in India.
