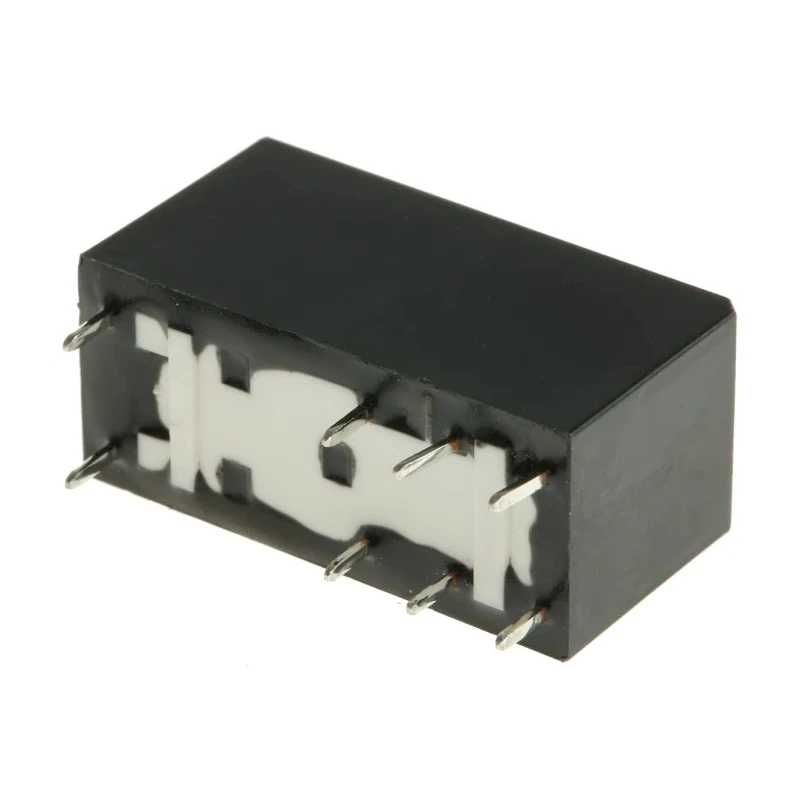

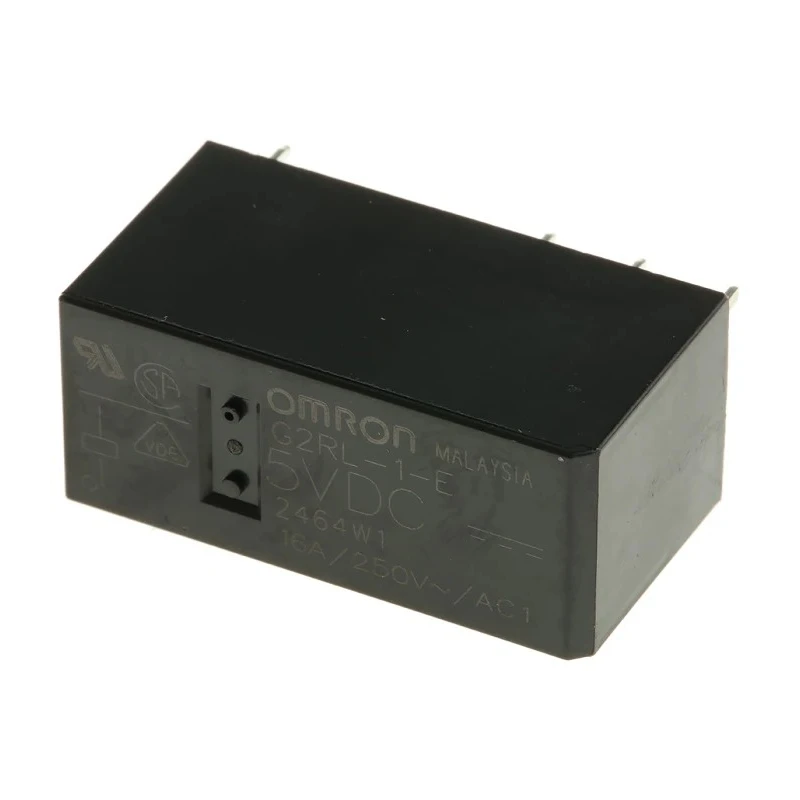

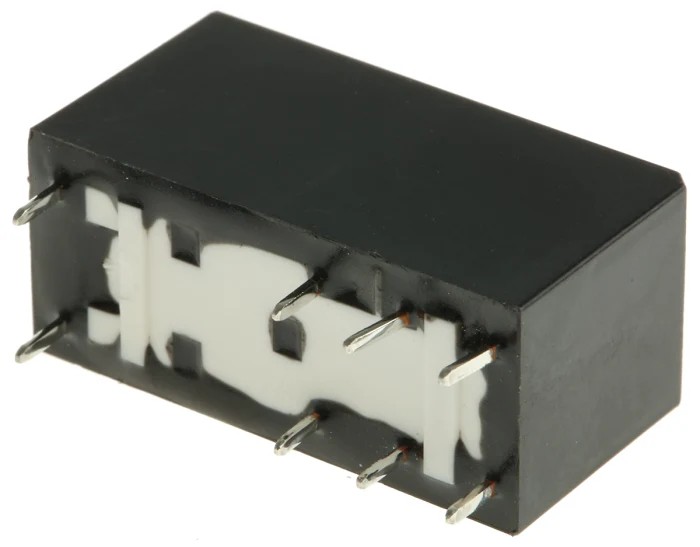

Omron Power Relay PCB Mount SPDT Contact Configuration 5V DC Coil 16A Switching Current G2RL-1-E DC5

Omron G2RL-1-E DC5 is a robust power relay designed for PCB mounting applications that require reliable performance with a 5V DC coil voltage and SPDT contact configuration. It delivers a switching current of 16A, making it suitable for controlling moderate electrical loads in industrial automation, electronic control circuits, and power management systems.

This power relay features a silver alloy contact material that maximizes conductivity and ensures long service life under frequent switching conditions. Its compact dimensions of 15.7mm height, 12.7mm width, and 29mm length allow efficient use of PCB space in dense circuit designs.

The device operates effectively within a temperature range of -40°C to 85°C, supporting diverse working environments ranging from industrial machinery to temperature-sensitive electronics. It meets strict international regulatory standards including RoHS, IEC, CE, EN, and UL certifications, confirming its safety and environmental compliance.

The coil characteristics include a resistance of 62.5Ω and power consumption of 2.5kW, designed to optimize energy use while providing stable switching operation. With a creepage and clearance of 10mm and a high tracking resistance (CTI > 250), the relay ensures electrical insulation integrity in demanding applications.

This Omron power relay is ideal for numerous industrial sectors such as manufacturing automation, HVAC control, instrumentation, and power distribution. Its non-latching design offers fast and reliable switching without residual magnetism, enabling rapid system responses.

The relay features a 5V DC coil voltage suitable for low voltage circuits. Switching current rating of 16A supports moderate load applications. Silver alloy contact material ensures high conductivity and durability. Compact dimensions of 15.7mm height, 12.7mm width, and 29mm length optimise PCB space usage.

Operating temperature range from -40°C to 85°C enables use in various environments. Compliance with RoHS, IEC, CE, EN, and UL standards assures quality and safety. Non-latching SPDT contact configuration supports versatile switching needs.

Tracking resistance with CTI greater than 250 offers enhanced insulation performance. Coil resistance of 62.5Ω and coil power rating of 2.5kW.

Explore the extensive range of Omron Power Relays at EnvMart for industrial automation and electrical control solutions designed to meet your precision and durability requirements.
