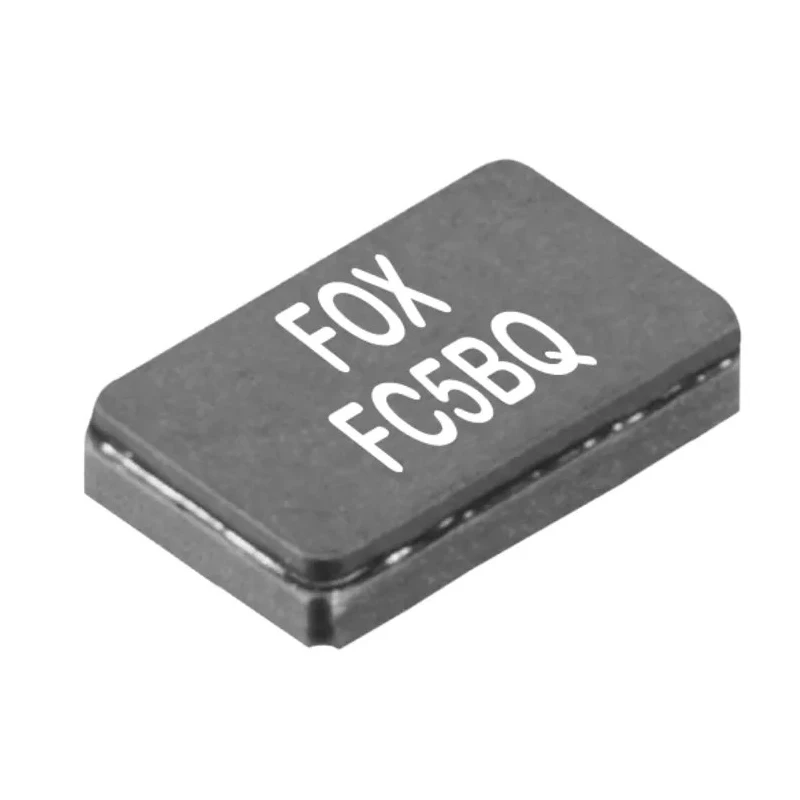

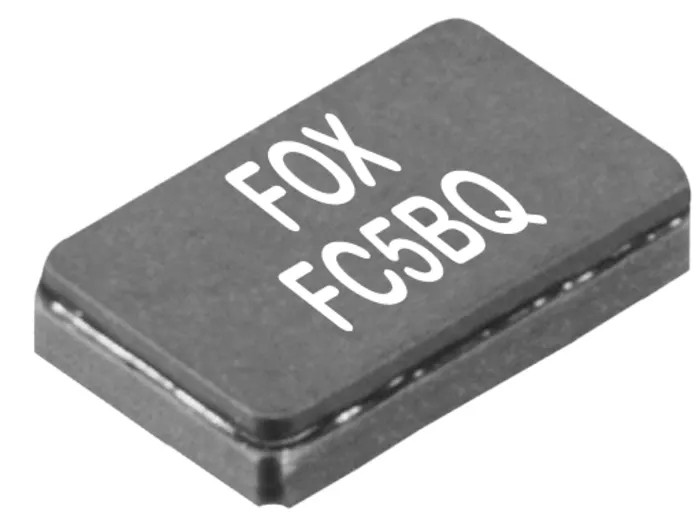

Abracon 20 MHz Crystal ±30 ppm Surface Mount 4-Pin 5 mm x 3.2 mm x 1.2 mm FC5BQCCMC20.0-T1

Abracon FC5BQCCMC20.0-T1 is a high-quality 20 MHz crystal unit designed for surface mount applications. This component features a ±30 ppm frequency tolerance and stability, ensuring precise and consistent oscillation in various electronic devices. The crystal is built with a resin seal and silver termination finish, enhancing mechanical durability and environmental resistance.

The device measures 5 mm in length, 3.2 mm in width, and 1.2 mm in height, with a 4-pin surface mount configuration suitable for compact PCB designs. The load capacitance is rated at 20 pF with a shunt capacitance of approximately 5 pF, providing optimal resonance characteristics for stable frequency output.

Operating reliably over a temperature range from 0°C to 70°C, this crystal is RoHS compliant, ensuring compliance with environmental standards. It is packaged in tape and reel format, facilitating automated assembly processes in industrial manufacturing.

The FC5BQ series crystals are widely used in industrial electronics, telecommunications, instrumentation, and consumer devices requiring precise frequency reference signals. Their surface mount design allows for high-density PCB layouts without compromising performance.

Standard frequency of 20 MHz providing accurate frequency reference. 4-pin surface mount package for streamlined PCB assembly. 20 pF load capacitance ideal for various circuit requirements. Compact dimensions of 5x3.2x1.2 mm suitable for modern electronics.

Operational temperature between 0°C and 70°C for stable usage. RoHS compliance ensures environmentally conscious manufacturing. Tape and reel packaging optimizes automated mounting on PCBs. Resin seal and silver termination enhance reliability and performance.

Low shunt capacitance reduces signal loss and distortion. FC5BQ series optimized for surface mount technology applications.

Ideal for use in industrial, laboratory, telecommunications, and consumer electronic applications, this crystal offers a robust and precise frequency source. The combination of compact size, reliable frequency stability, and ease of assembly makes it a preferred choice for engineers and OEMs. Browse related crystal units and other Electronic Components at EnvMart for comprehensive sourcing solutions.
