| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | LQM18DZ100M70L |
| Depth | 0.8mm |
| Series | LQM |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Package/Case | 0603 |
| Maximum DC Current | 100mA |
| Maximum DC Resistance | 1.37Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 32MHz |
| Inductor Construction | Ferrite Core |
| Automotive Standard | AEC-Q200 |

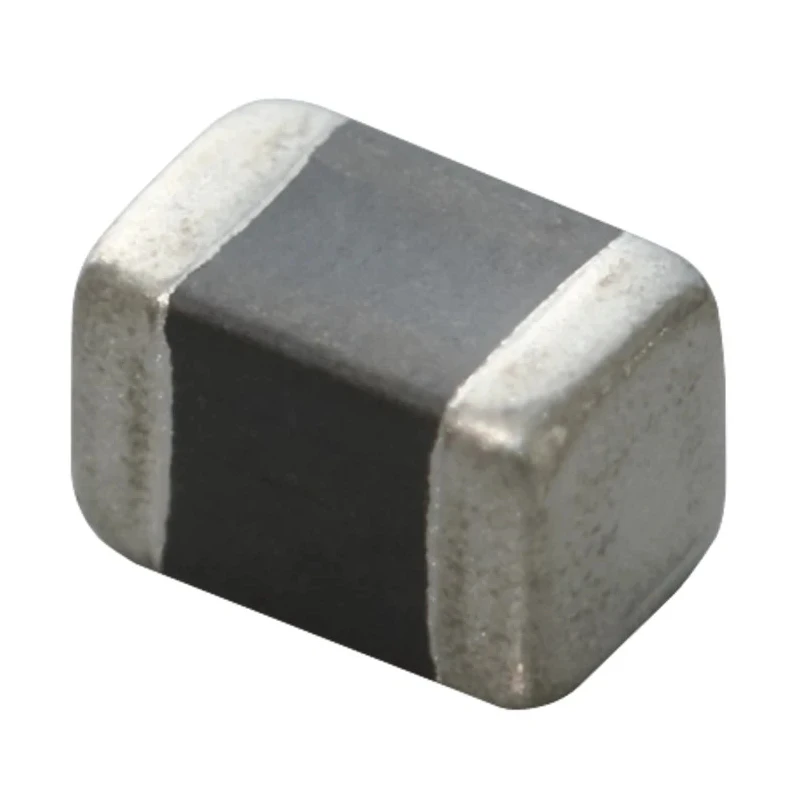

Murata LQM18DZ100M70L is a 0603 shielded multilayer surface mount inductor designed with a ferrite core, providing 10μH inductance with ±20% tolerance and supporting a maximum DC current of 100mA. It features a compact 1.6mm length and 0.8mm height and depth, optimized for PCB designs requiring miniature inductive components.
This inductor is well suited for power lines, offering stable performance with its ferrite core construction and shielding to minimize electromagnetic interference. The device meets the automotive standard AEC-Q200, ensuring high reliability and durability under rigorous environmental conditions, operating reliably between -55°C and 125°C.
With a high maximum self-resonant frequency of 32MHz and low DC resistance of 1.37Ω, this component is suitable for high-frequency power circuits and noise suppression applications. The surface mount termination style facilitates automated mounting processes, enhancing manufacturing efficiency.
Murata's LQM series offers molded ferrite core inductors that combine compact size with robust electrical characteristics, making them ideal for use in industrial electronic assemblies, telecommunications, automotive electronics, and consumer electronic devices. The lightweight and durable construction ensures longevity and consistent performance.
Compact 0603 size package for space-efficient PCB integration. Ferrite core and shielding reduce electromagnetic interference and maintain inductance stability. Automotive grade AEC-Q200 rating supports usage in automotive and high-reliability applications.
Wide temperature range supports harsh environment applications including industrial controls and automotive electronics. High self resonant frequency and low DC resistance provide efficient filtering in high-frequency circuits.
Choose Murata LQM18DZ100M70L inductors for power filtering and signal integrity in demanding electronic systems. Explore more Surface Mount Inductors for your projects and industrial needs at EnvMart.
