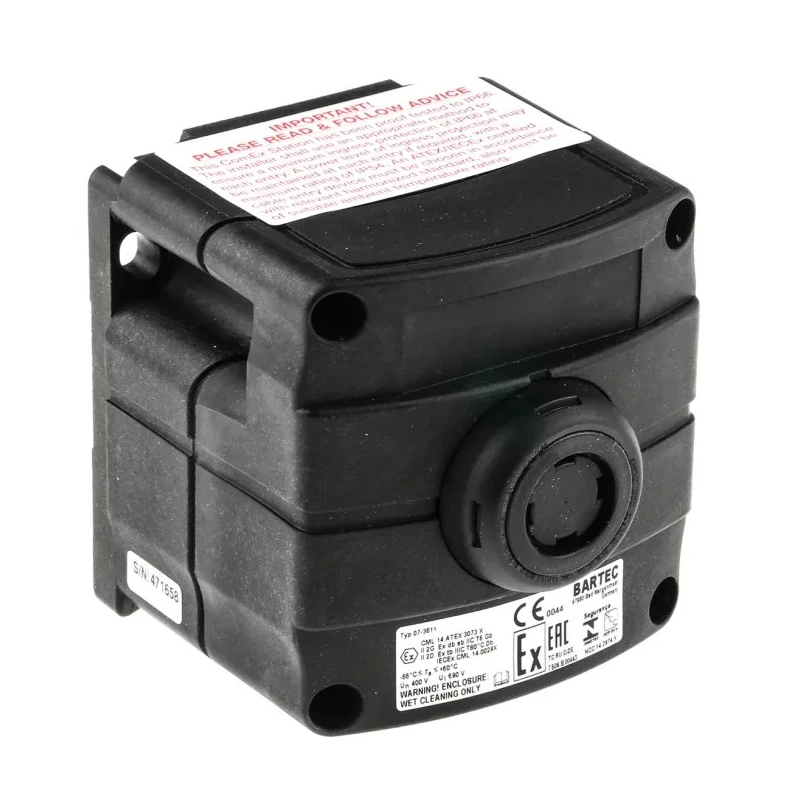

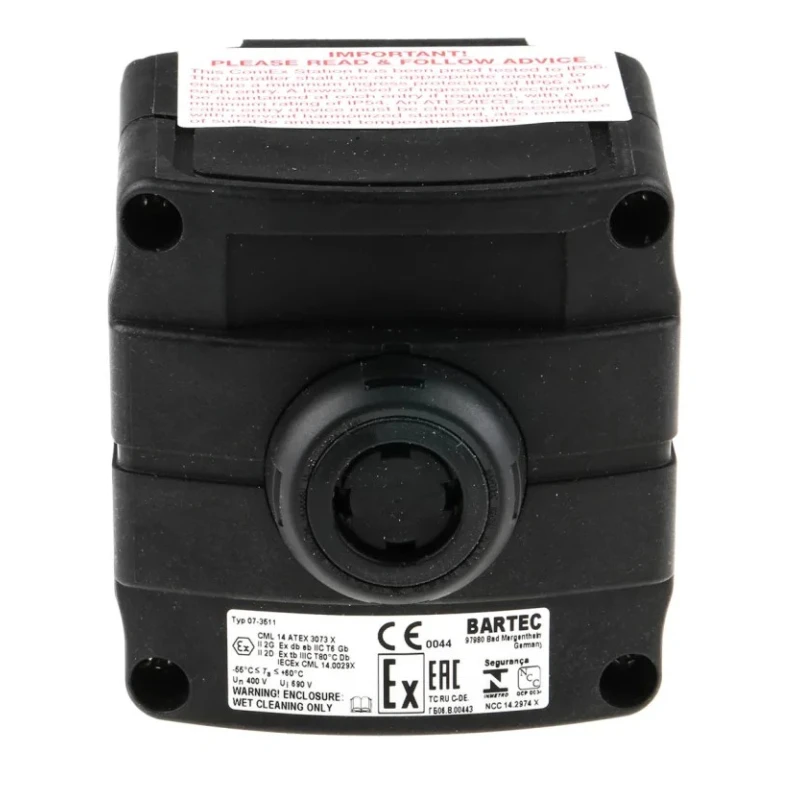

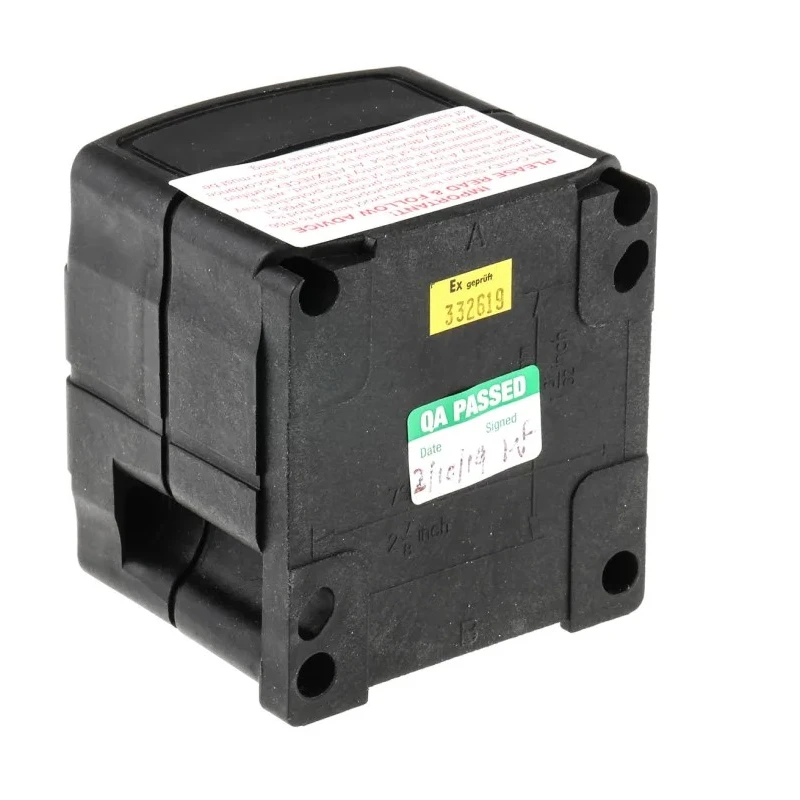

Bartec Push Button Control Station Thermoplastic IP66 IP67 ATEX Certified 22mm Cutout 07-3511-10P74

Bartec 07-3511-10P74 Push Button Control Station is a robust control device designed for demanding industrial and hazardous environments. It features a thermoplastic enclosure that ensures resistant performance against mechanical impacts and environmental factors.

This control station is rated IP66 and IP67, providing complete protection against dust ingress and allowing temporary immersion in water, making it suitable for external and indoor applications exposed to moisture.

Certified under ATEX directives, the product is suitable for use in potentially explosive atmospheres, enhancing safety in hazardous locations.

The device includes multiple colored push-in inserts - red, green, yellow, and white - allowing customization for various control and indication functions. Operating in temperatures ranging from -55°C to 60°C, it offers reliable performance in extreme climates.

The control station supports wiring via wire terminals and accommodates electrical connectivity with up to two M20 cable glands, either plastic or metal, adapting to installation requirements without the need for lock nuts on plastic glands.

Made in Germany, this unit ensures strict manufacturing quality and durability. It is ideal for industrial automation, manufacturing control panels, process control systems, and electrical safety applications requiring rugged and certified control interfaces.

Enclosure constructed from durable thermoplastic material suitable for harsh conditions. IP66 and IP67 rated for dust-tight and water immersion protection. ATEX certified for use in hazardous areas. Includes red, green, yellow, and white push-in inserts for versatile signaling.

Operating temperature range from -55°C to 60°C ensures reliable performance. 22mm cutout diameter supports standard mounting configurations. Wire terminal type for secure electrical wiring connections. Capacity for two M20 cable glands adaptable for plastic or metal types.

Manufactured in Germany ensuring consistent quality and compliance. Designed for industrial control panels and automation use cases. Explore the extensive range of control stations and push button units available at EnvMart to optimize your electrical installations with certified and reliable components.
