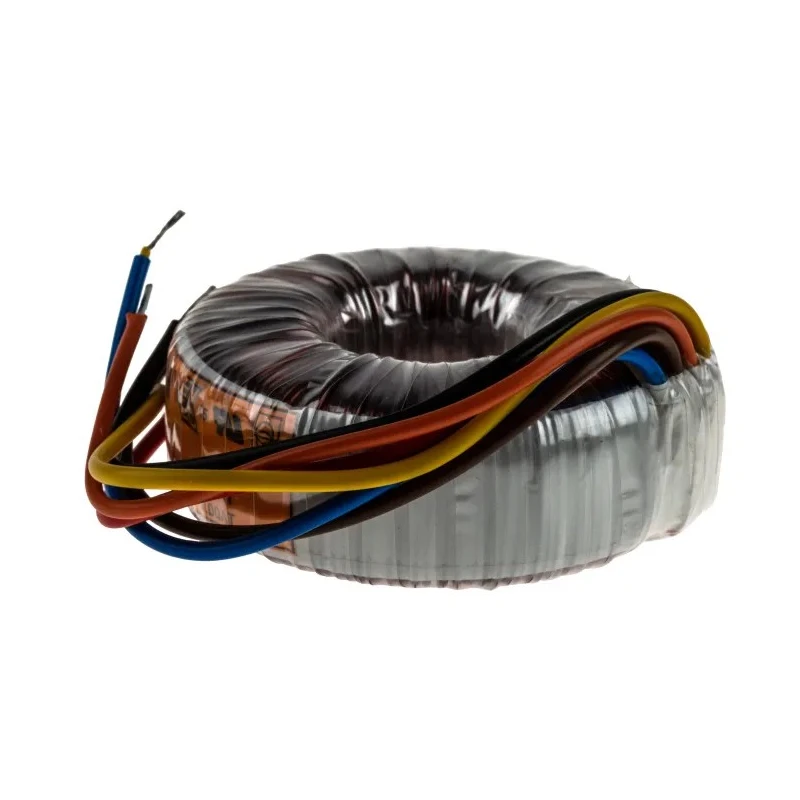

Nuvotem Talema 230 V AC 2 x 15 V AC Toroidal Transformer 2 Output 120 VA 0120P1-2-015

Nuvotem Talema 0120P1-2-015 Toroidal Transformer is designed for efficient power conversion with a primary voltage of 230 V AC and two secondary outputs of 15 V AC each, delivering a total power capacity of 120 VA.

This open style transformer features a copper primary winding, ensuring high conductivity and reduced energy losses. Its compact design with a diameter of 93 mm and a height of 46 mm contributes to a smaller footprint compared to traditional laminated transformers.

Operating within a temperature range from 0°C up to 180°C and frequencies between 50 Hz and 450 Hz, this unit is suitable for industrial, laboratory, and commercial electrical applications requiring stable voltage transformation with minimal noise and electromagnetic interference.

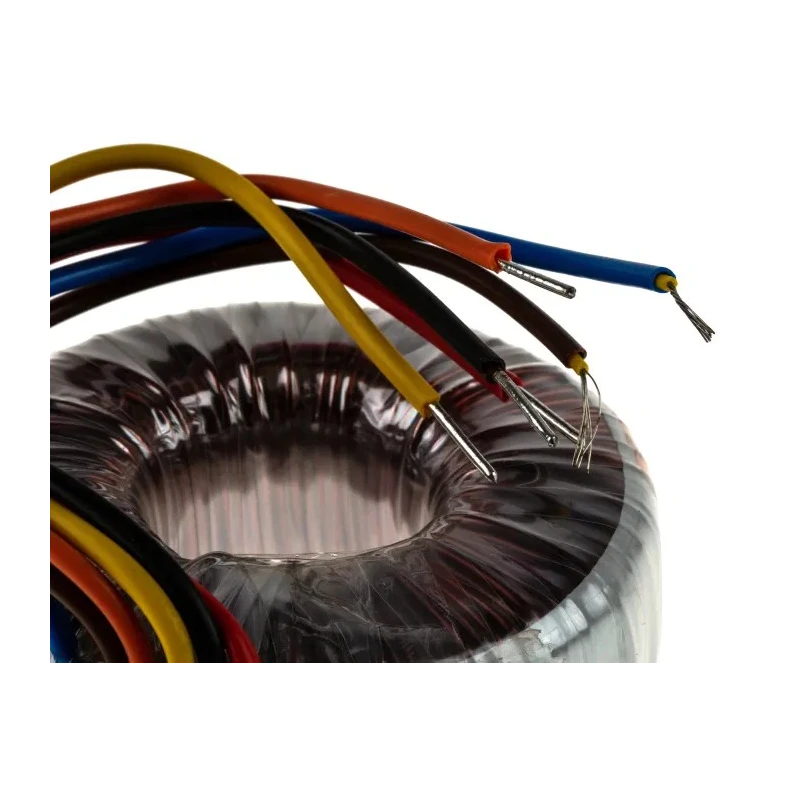

With double insulated primary leads and copper conductor termination wires, it offers safe and secure connections while complying with multiple safety and quality standards such as EN61558, VDE0550, UL5, EN60065, UL506, and BS415. The transformer is 100% electrical and flash tested to guarantee quality and reliability.

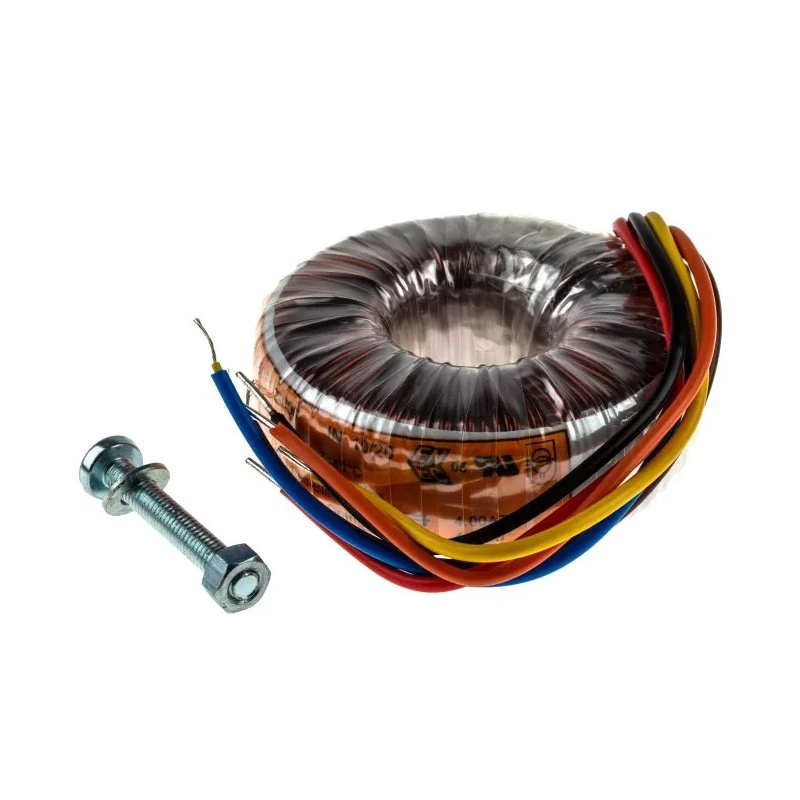

It comes complete with a full mounting kit to facilitate installation. The toroidal core design results in very low radiated magnetic fields and minimal induced noise, making it ideal for sensitive electronic equipment.

Features 2 independent outputs with a total power rating of 120 VA. Constructed with copper primary winding for durability and reliable performance. Compact open style with a diameter of 93 mm and height of 46 mm. Operates within a temperature range of 0°C to 180°C and frequency range of 50 Hz to 450 Hz.

Equipped with copper conductor termination wires for secure connections. Conforms to industrial standards including EN61558, VDE0550, UL5, EN60065, UL506, and BS415. Supplied with full mounting kit for easy installation.

This transformer is widely used in industrial electronics, power supplies, laboratory equipment, and manufacturing processes where reliable voltage conversion and low noise levels are critical.

Explore the wide range of transformers and Toroidal Transformers in EnvMart for your power conversion needs.
