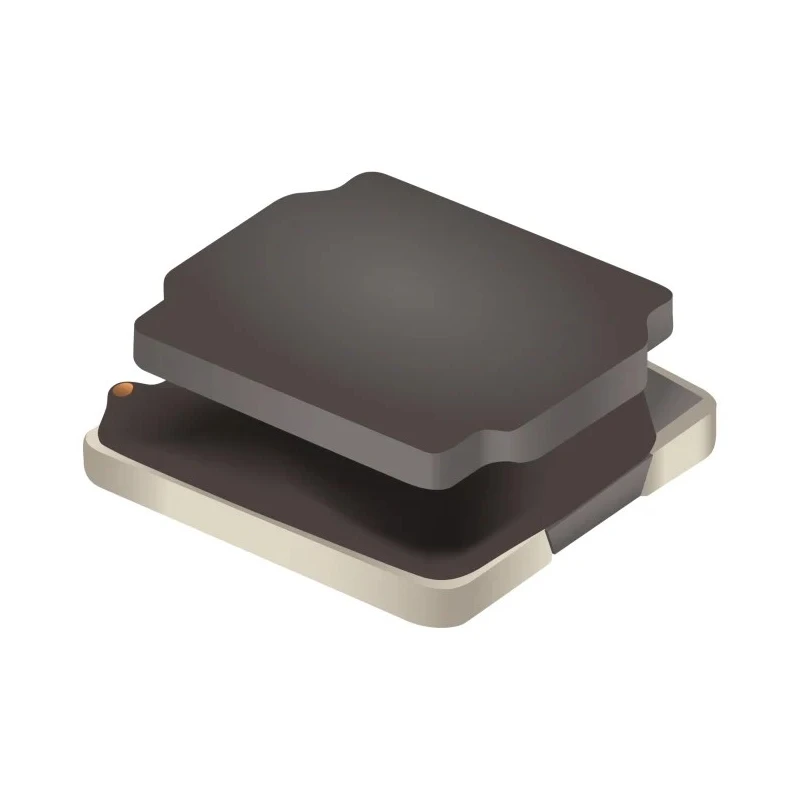

Bourns 3012 Shielded Surface Mount Inductor with Ferrite Core 2.2 μH 1.7 A IDC Semi Shielded SRN3012TA
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Height | 1.2mm |
| Length | 3mm |
| Model | SRN3012TA |
| Depth | 1.2mm |
| Packaging | 2000 pieces per 7 in Reel |
| Series | SRN3012TA |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 3012 |
| Maximum DC Current | 1.7A |
| Maximum DC Resistance | 0.08Ω |
| Inductance Tolerance | 20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 90MHz |
| Minimum Quality Factor | 15 |
| Inductor Construction | Semi Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- Designed with a ferrite core to enhance magnetic properties.
- Provides inductance of 2.2 μH with 20% tolerance.
- Operates effectively up to 125°C maximum temperature.
- Compact 3012 package size with 3 mm length and 1.2 mm height and depth.
- Semi shielded construction reduces EMI.
- Capable of handling 1.7 amps of DC current continuously.
- RoHS compliant for environmental safety.
- Automotive standard AEC-Q200 certified for quality assurance.
Product Description
Bourns SRN3012TA Surface Mount Inductor features a 3012 case size and a ferrite core, offering an inductance of 2.2 μH with a 20% tolerance. This semi shielded inductor supports a maximum DC current of 1.7 A and operates reliably in temperatures ranging from -55°C to 125°C. Its compact dimensions of 3 mm length, and 1.2 mm height and depth make it ideal for dense PCB layouts in electronic components.
The device is designed with solder termination style and moulded construction for durability and ease of assembly. It meets automotive grade requirements with AEC-Q200 certification, making it suitable for automotive as well as general industrial applications. RoHS compliance ensures it meets modern environmental regulations.
This inductor also features a maximum DC resistance of 0.08 ohms, providing efficient current handling with minimal losses. Its semi shielded construction reduces electromagnetic interference, enhancing signal integrity in sensitive electronics.
The Bourns SRN3012TA is manufactured in China and packaged as 2000 pieces per 7 inch reel, facilitating automated pick and place processes in mass production. With a maximum self-resonant frequency of 90 MHz and a quality factor minimum of 15, this inductor is suitable for power management, filtering, and RF applications in automotive, industrial, and consumer electronics sectors.
Designed with a ferrite core to enhance magnetic properties. Provides inductance of 2.2 μH with 20% tolerance. Operates effectively up to 125°C maximum temperature. Compact 3012 package size with 3 mm length and 1.2 mm height and depth.
Semi shielded construction reduces EMI. Capable of handling 1.7 amps of DC current continuously. RoHS compliant for environmental safety. Automotive standard AEC-Q200 certified for quality assurance. Maximum DC resistance of 0.08 ohms to ensure efficiency.
Moulded design for durability and solder termination style. Explore Bourns inductors and other passive components in EnvMart for your industrial and electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SRN3012TA inductor provides an inductance of 2.2 μH with a tolerance of 20%.
This model can handle a maximum DC current of 1.7 A continuously.
It has a compact package size of 3 mm in length, and 1.2 mm in both height and depth.
The inductor operates effectively within a temperature range of -55°C to 125°C.
The maximum self-resonant frequency of this inductor is 90 MHz.
It features a semi shielded construction that helps reduce electromagnetic interference (EMI).
The maximum DC resistance is 0.08 ohms, ensuring efficient current handling.
Yes, this inductor is RoHS compliant, meeting modern environmental regulations.
It is certified to meet the automotive standard AEC-Q200 for quality assurance.
It is packaged as 2000 pieces per 7-inch reel, facilitating automated pick and place processes.
The SRN3012TA uses a solder termination style for ease of assembly.
This inductor is suitable for power management, filtering, and RF applications in automotive, industrial, and consumer electronics sectors.
