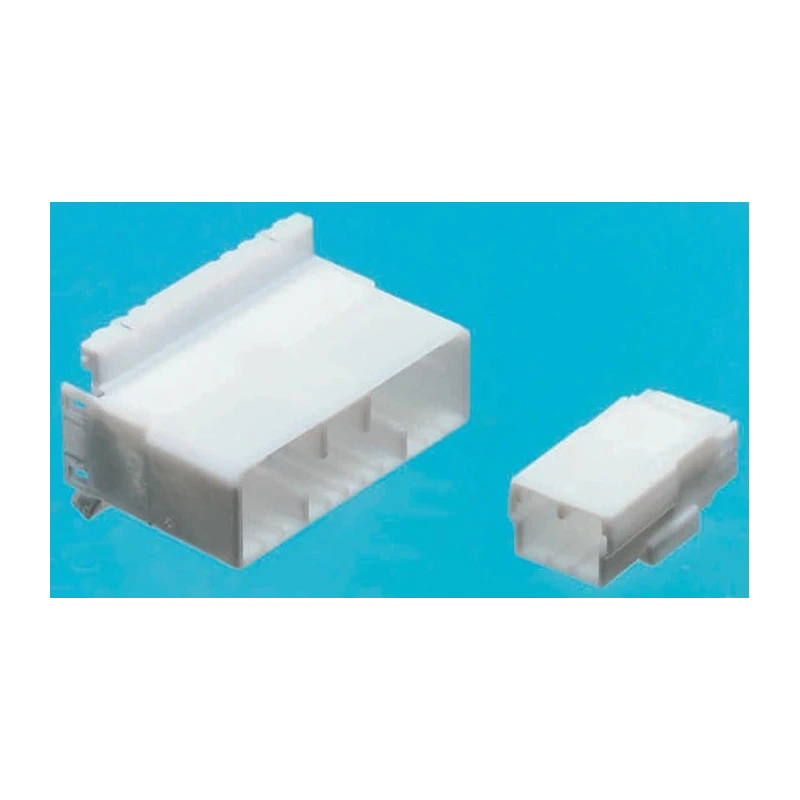

TE Connectivity MULTILOCK 070 Female Connector Housing 3.5 mm Pitch 20 Way 2 Row Straight 174936-1
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 46.7mm |
| Model | 174936-1 |
| Width | 46.7mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | MULTILOCK 070 |
| Interfaces | lance design |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| For Use With | Multilock Wire-to-Wire Connector |
| Number of Contacts | 20 |
| Connector Gender | Female |
Key Features
- Features a durable polybutylene terephthalate housing material for longevity.
- Designed with an integral double locking system for secure contact retention.
- Protects contacts against damage from KOJIRI action during mating and unmating.
- Supports straight orientation and cable mount type for versatile applications.
- Suitable for automotive and industrial wire-to-wire connection systems.
- Compact size with 46.7 mm length and width enables space-efficient integration.
- Key locking mechanism prevents partial insertion and ensures reliable performance.
- Requires female crimp contacts; contacts are ordered separately.
Product Description
TE Connectivity 174936-1 MULTILOCK 070 Female Connector Housing is a high-density 3.5 mm pitch connector housing designed for automotive and industrial wire-to-wire and wire-to-board applications. This 20 way, 2 row straight connector offers robust and compact solutions for complex wiring harnesses with an emphasis on durability and secure connections.
The housing is manufactured from polybutylene terephthalate, providing strength and resistance to environmental factors. The MULTILOCK 070 series features a unique housing lance design that protects contacts from damage caused by the KOJIRI action during mating cycles, substantially increasing connector lifespan.
Its integral double locking system on the wire side ensures secure contact retention, preventing partial insertions and improving reliability under vibration and motion. This female connector is designed for cable mount installation with a straight orientation, measuring 46.7 mm in length and width, facilitating compact harness design.
This Connector Housing is ideal for applications in powertrain, safety, security, driver information, and body vehicle systems. It supports automotive automotive wiring harness assembly, industrial automation, and other signal transfer tasks requiring compact, durable, and high-density connectors.
Note that the MULTILOCK 070 system requires female crimp contacts to be ordered separately. The housing is part of TE Connectivity’s MULTILOCK 070 series providing reliable multi-pin connectors for automotive wire-to-wire connections.
Features a durable polybutylene terephthalate housing material for longevity. Designed with an integral double locking system for secure contact retention. Protects contacts against damage from KOJIRI action during mating and unmating.
Supports straight orientation and cable mount type for versatile applications. Suitable for automotive and industrial wire-to-wire connection systems. Compact size with 46.7 mm length and width enables space-efficient integration.
Key locking mechanism prevents partial insertion and ensures reliable performance. Requires female crimp contacts; contacts are ordered separately. Explore more TE Connectivity products and connectors for automotive and industrial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the TE Connectivity MULTILOCK 070 Female Connector Housing is 3.5 mm.
This model supports 20 contacts.
The connector housing supports a straight orientation.
The dimensions of this connector housing are 46.7 mm in length and 46.7 mm in width.
It features an integral double locking system that ensures secure contact retention and prevents partial insertions.
Yes, it is suitable for automotive wire-to-wire connection systems and various vehicle applications.
This connector housing belongs to the MULTILOCK 070 series.
The country of origin for this connector housing is Korea.
This model requires female crimp contacts, which are ordered separately.
It is ideal for applications in powertrain, safety, security, driver information, and body vehicle systems.
