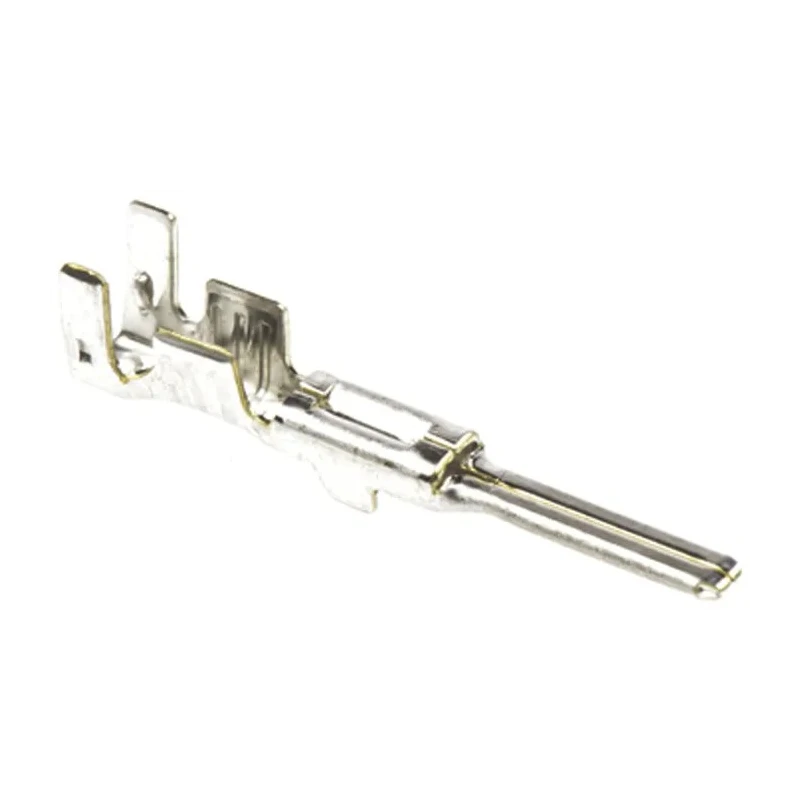

TE Connectivity MULTILOCK 070 Series Male Crimp Terminal, 20 AWG Min Crimp, 16 AWG Max 175030-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Current | 14A |
| Length | 16mm |
| Model | 175030-1 |
| Gender | Male |
| Contact Material | Brass |
| Current Rating | 15A |
| Series | MULTILOCK 070 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 070 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Constructed with brass contact material to ensure durability and reliable connectivity.
- Tin plating on the contact for corrosion resistance and enhanced conductivity.
- Supports a current rating of 14 to 15 Amperes suitable for various electronic applications.
- Operates efficiently within a temperature range of -30°C to 105°C.
- Snap-in fixing enabled for secure and reliable connection within connector cavities.
- Designed to meet industrial standards without additional certifications.
- Manufactured in Japan ensuring high-quality production standards.
Product Description
TE Connectivity 175030-1 MULTILOCK 070 Series Male Crimp Terminal features a robust brass contact material with tin plating providing reliable and corrosion-resistant connectivity. Designed for electrical and electronic applications requiring secure wire connections, this crimp terminal supports wire sizes from 20 AWG minimum to 16 AWG maximum and current ratings up to 15 Amperes.
The terminal length is 16mm and is suitable for use with MULTILOCK 070 Connector Housings, offering snap-in fixing connector cavities for stable mechanical assembly. Operating temperature ranges from -30°C to 105°C make it ideal for demanding industrial and automotive environments.
This product is a miniature high-density connector solution primarily used in automotive and automation industries, suitable for wire-to-wire and wire-to-board connections, providing a compact and efficient electrical interface.
Connector features include crimp terminating contacts with low level resistance of 1 mΩ max (initial) and overall resistance of 10 mΩ max (final) ensuring signal integrity and minimal power loss.
Manufactured with strict quality standards in Japan, this contact terminal is well-suited for industrial automation, automotive wiring harnesses, and other electronic manufacturing applications requiring reliable and durable Crimp Contacts.
Constructed with brass contact material ensuring durability and performance. Tin plating for corrosion resistance and electrical conductivity. Current rating of 15 Amperes for a wide range of applications. Wire size compatibility from 20 AWG to 16 AWG.
Length of 16mm facilitates integration with MULTILOCK 070 housings. Snap-in crimp contact design for secure connector assembly. Operating temperature range from -30°C up to 105°C suitable for harsh environments. Manufactured in Japan to high-quality industrial standards.
This TE Connectivity MULTILOCK 070 Series Male Crimp Terminal is an excellent choice for electronic component applications in industrial automation, automotive wiring, and electrical connector systems. Explore the full range of TE Connectivity products for reliable and durable connector solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 15 Amperes, making it suitable for various electronic applications.
It operates efficiently within a temperature range of -30°C to 105°C, suitable for demanding industrial and automotive environments.
This terminal is compatible with wire sizes from 20 AWG minimum to 16 AWG maximum, or 0.5 mm² to 1.25 mm².
The length of this terminal is 16 mm, facilitating integration with MULTILOCK 070 connector housings.
It is constructed with brass contact material and features tin plating for corrosion resistance and enhanced conductivity.
This crimp terminal utilizes a crimp termination type, ensuring secure wire connections.
Yes, it is designed for use with MULTILOCK 070 connector housings, providing a secure and reliable connection.
The low level resistance is 10 mΩ max (initial), ensuring signal integrity and minimal power loss.
The overall resistance is 20 mΩ max (final), which contributes to efficient electrical performance.
It is manufactured in Japan, adhering to high-quality production standards.
It is primarily used in automotive and automation industries for wire-to-wire and wire-to-board connections.
Yes, it is designed to meet industrial standards, although it does not carry additional certifications.
