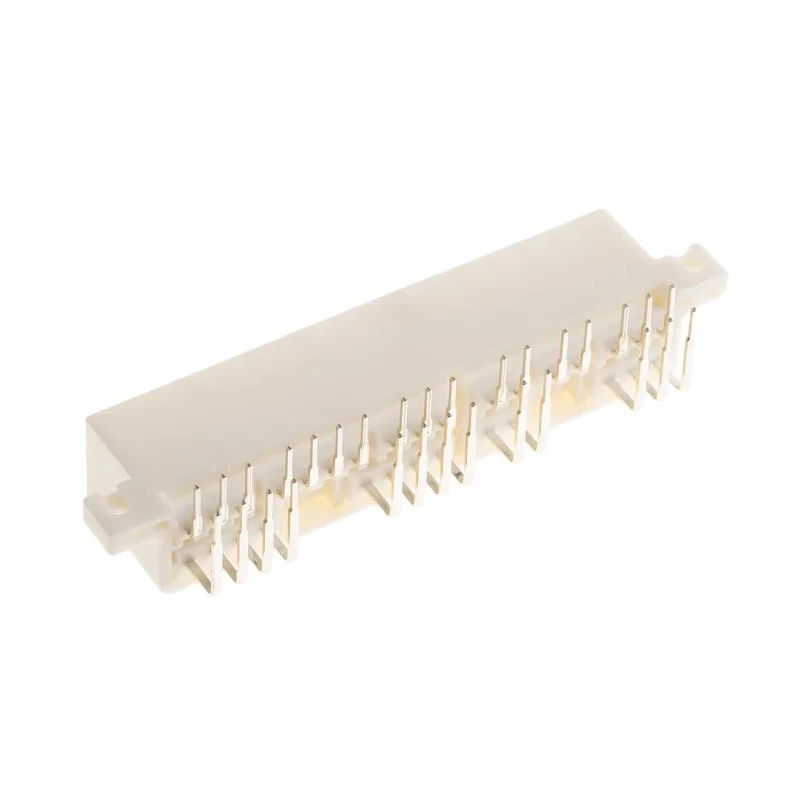

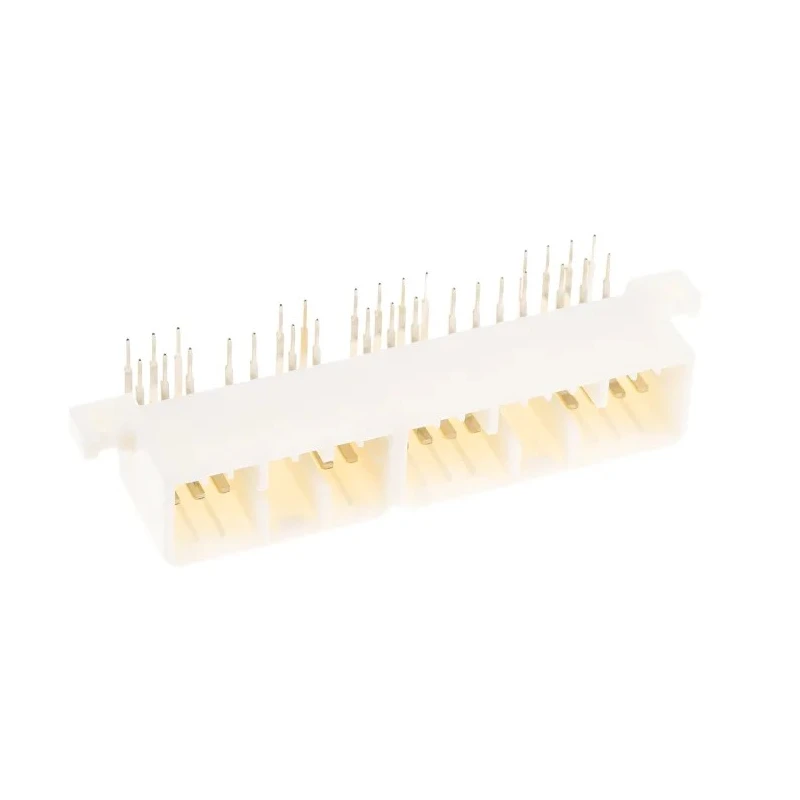

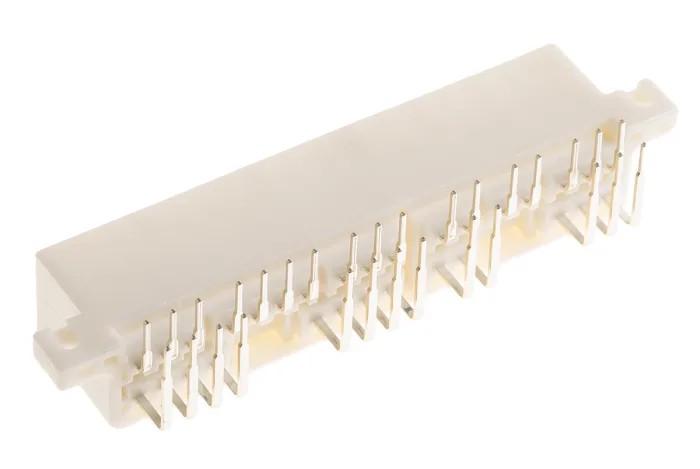

TE Connectivity MULTILOCK 070 Female Connector Housing 3.5 mm Pitch 30 Way 2 Row Right Angle 173866-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Length | 89.1mm |
| Model | 173866-1 |
| Width | 15.8mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Series | MULTILOCK 070 |
| Interfaces | lance design |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| For Use With | Multilock I/O Connector |
| Number of Contacts | 30 |
| Connector Gender | Female |
Key Features
- Compact and durable design suitable for automotive wire to wire and wire to board applications.
- Features a high-density 3.5 mm pitch for precise connectors.
- Housing lance design protects contacts against KOJIRI action damage.
- Integral double locking system ensures secure contact retention and prevents partial insertion.
- Female connector housing with through hole mount and right angle orientation.
- Constructed from durable Polybutylene Terephthalate material.
- Designed for use with Multilock I/O connectors and female crimp contacts.
- Measures 89.1 mm length and 15.8 mm width for PCB compatibility.
Product Description
TE Connectivity 173866-1 MULTILOCK 070 Female Connector Housing is a 3.5 mm pitch, 30 way, 2 row right angle connector housing designed for automotive wire to wire and wire to board use.
This compact and durable housing includes a high-density contact layout optimized for space and signal integrity. The housing features a lance design that protects contacts from KOJIRI action damage, typically caused during mating and unmating cycles, enhancing product longevity and reliability.
Integral to the housing is a double locking mechanism which prevents partial insertion and ensures secure retention of female crimp contacts. This locking system provides stability in demanding automotive environments, making it highly suitable for powertrain, safety, security, convenience, driver information, and body chassis systems.
The housing uses through hole mount type and is configured with a right angle orientation that facilitates efficient PCB mounting. Constructed from Polybutylene Terephthalate, it offers strong resistance to environmental stress.
This MULTILOCK 070 series housing is designed for use with Multilock I/O connectors and requires female crimp contacts (sold separately). Its 89.1 mm length and 15.8 mm width make it compatible with many standard PCB layouts.
Compact and durable design suitable for automotive wire to wire and wire to board applications. High-density 3.5 mm pitch contact centres allow precise electrical connections. Housing lance design protects contacts against KOJIRI action damage.
Integral double locking system for secure contact retention and prevention of partial insertion. Through hole mounting type with right angle orientation for PCB compatibility. Made from durable Polybutylene Terephthalate housing material.
Designed specifically for Multilock I/O Connector use with female crimp contacts. Ideal for automotive applications including powertrain, safety, security, and convenience systems.
This product is ideal for automotive, industrial, and electronics manufacturing applications requiring reliable connector housings. Browse more products by TE Connectivity or explore the Connector Housing category at EnvMart for related industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3.5 mm, allowing for a high-density contact layout optimized for space and signal integrity.
This model supports 30 contacts, making it suitable for various automotive and industrial applications.
The connector housing is designed with a right angle orientation, facilitating efficient PCB mounting.
It is constructed from Polybutylene Terephthalate, which provides strong resistance to environmental stress.
This model uses a through hole mount type, which is common for PCB applications.
The housing measures 89.1 mm in length and 15.8 mm in width, making it compatible with many standard PCB layouts.
The integral double locking system ensures secure retention of female crimp contacts and prevents partial insertion, enhancing stability in demanding environments.
This housing is specifically designed for use with Multilock I/O connectors and requires female crimp contacts, which are sold separately.
It is suitable for automotive wire to wire and wire to board applications, particularly in powertrain, safety, and convenience systems.
The lance design protects contacts against KOJIRI action damage, which can occur during mating and unmating cycles, enhancing reliability.
This connector housing has 2 rows, which contributes to its high-density contact layout.
The country of origin for this connector housing is Japan.
