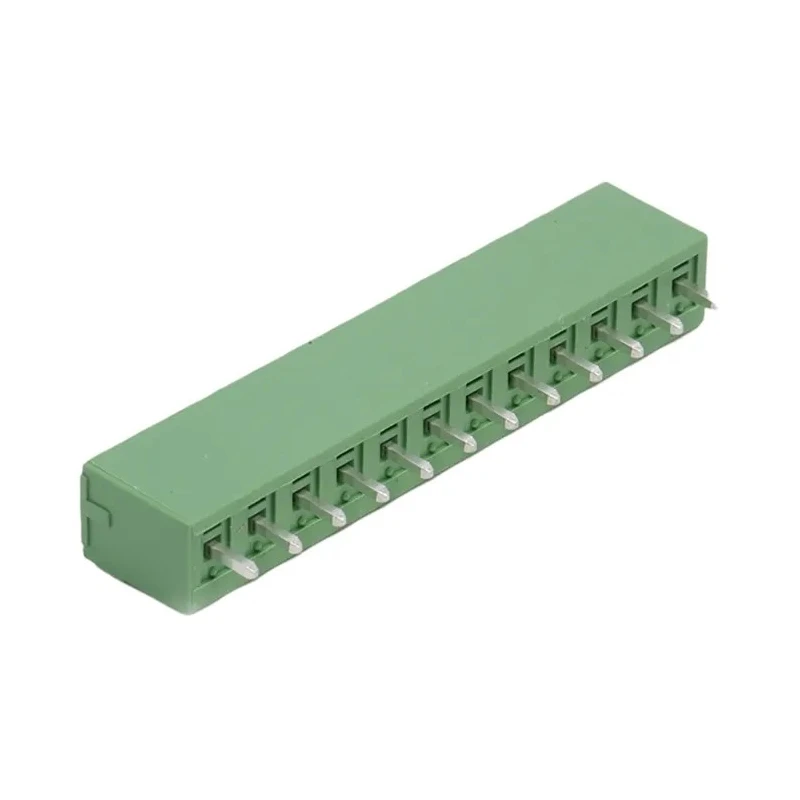

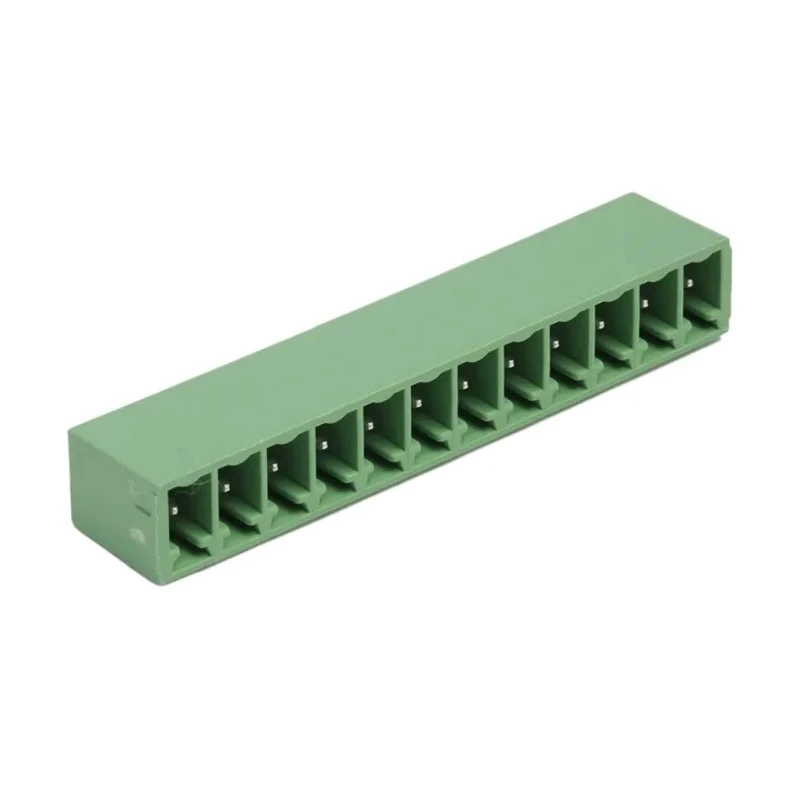

Phoenix Contact MCV 1.5/12-G-3.81 Series Straight Pluggable Terminal Block, 12 Contacts, 3.81 mm Pitch, 1 Row, 160V 1803523
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 8A |
| Model | 1803523 |
| Housing Material | Polybutylene Terephthalate |
| Series | MCV 1.5/12-G-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Standards/Approvals | EU RoHS, EU REACH SVHC, cULus, CSA, CHINA RoHS |
| Number of Contacts | 12 |
Key Features
- Constructed from durable Polybutylene Terephthalate housing material.
- Rated for nominal current of 8 amperes ensuring reliable power handling.
- Supports a voltage rating of 160 volts suitable for multiple electronic applications.
- Compliant with EU RoHS, EU REACH SVHC, cULus, CSA, and China RoHS standards ensuring environmental and safety adherence.
- Designed for through-hole mounting with wave soldering for robust PCB integration.
- Green colored housing material allows for use in extreme temperature ranges -40°C to 100°C.
- Compatible with multi-row PCB arrangements due to vertical mounting orientation.
- Provides secure, shrouded pin contacts to protect and maintain stable electrical connections over time.
Product Description
Phoenix Contact 1803523 is a straight Pluggable Terminal Block from the MCV 1.5/12-G-3.81 series designed for robust PCB connectivity in industrial and electronic applications.
This terminal block features 12 contacts spaced at a 3.81 mm pitch, housed in a green Polybutylene Terephthalate (PBT) casing that offers durability and resistance to harsh environmental factors. The component can operate reliably under temperature conditions ranging from -40°C up to 100°C.
It is rated for a nominal current of 8 amps and a voltage of 160 volts, making it suitable for various PCB connector needs including power supplies and signal connections. The single-row, straight orientation allows for versatile design options on printed circuit boards, supporting wave soldering through-hole mounting techniques.
The MCV series is widely recognized for its multi-connection technology compatibility, enabling use with multiple connection types via one header design. The shrouded pins enhance safety and provide sturdy, long-lasting connections which are crucial for industrial, HVAC, manufacturing, electronic components assembly, and laboratory applications.
The product conforms to key international standards including EU RoHS, EU REACH SVHC, cULus, CSA, and China RoHS, ensuring compliance with environmental safety norms. Durable Polybutylene Terephthalate housing provides excellent mechanical strength.
12 contact points with a 3.81 mm pitch allow compatibility with standard PCB connector layouts. Rated for a current capacity of 8 amps and voltage rating of 160 volts. Straight orientation eases integration into various PCB designs.
Suitable for mounting via wave soldering through-hole technology. Withstands temperature extremes from -40°C to 100°C for demanding industrial environments. Complies with RoHS and other safety standards for reliable and safe use.
This terminal block is ideal for use across industrial machines, electronics manufacturing, HVAC systems, and laboratory instruments requiring dependable PCB terminal connections. Explore more in our Electronics Components categories to find compatible accessories and related PCB connector solutions from Phoenix Contact and other leading brands at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of 160 volts, making it suitable for various electronic applications.
This model features 12 contacts, which are spaced at a 3.81 mm pitch.
It is rated for a nominal current of 8 amperes, ensuring reliable power handling.
The housing is constructed from Polybutylene Terephthalate (PBT), providing durability and resistance to harsh conditions.
It can operate reliably in temperature conditions ranging from -40°C to 100°C.
It is designed for through-hole mounting and supports wave soldering for robust PCB integration.
It complies with EU RoHS, EU REACH SVHC, cULus, CSA, and China RoHS standards, ensuring environmental and safety adherence.
The terminal block features a straight orientation, which eases integration into various PCB designs.
Yes, it is compatible with multi-row PCB arrangements due to its vertical mounting orientation.
It is suitable for use in industrial machines, electronics manufacturing, HVAC systems, and laboratory instruments requiring dependable PCB terminal connections.
The country of origin is Germany.
The shrouded pin contacts provide protection and maintain stable electrical connections over time, enhancing safety in applications.
