Assemtech SPCO PCB Reed Switch 200 mA 30 V ac/dc 8602-0551-020

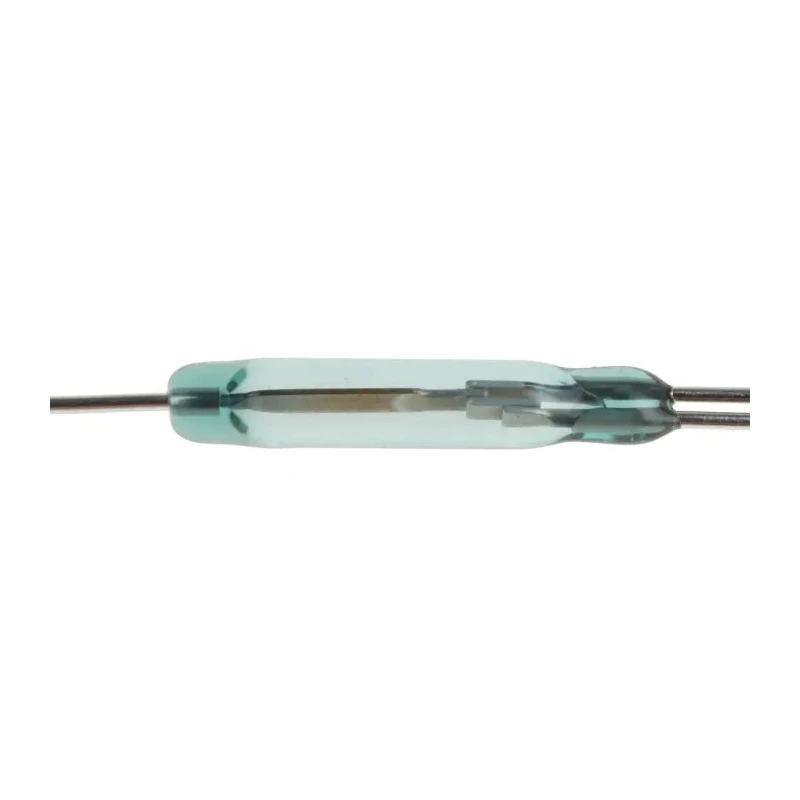

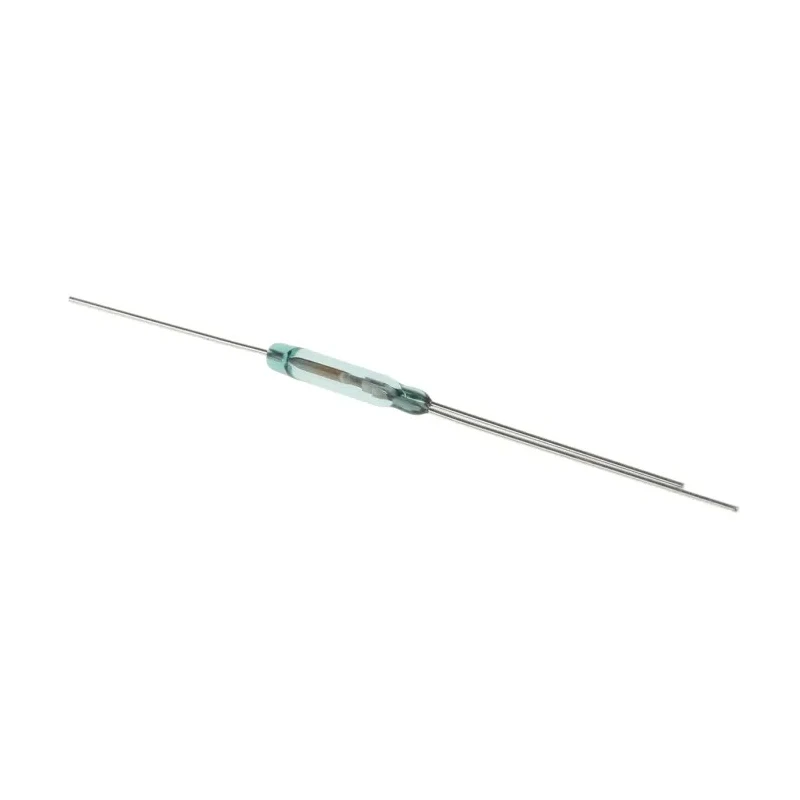

Assemtech 8602-0551-020 SPCO PCB Reed Switch 200 mA 30 V ac/dc is a precision and reliable PCB-mounted reed switch constructed with hermetically sealed glass envelope technology. This switch is designed to operate via an electromagnetic or permanent magnet actuation mechanism, providing dependable single pole changeover (SPCO) operation.

The device's rhodium-plated contacts ensure low contact resistance of approximately 100 milliohms, which maintains signal integrity and reduces wear. Its maximum switching current is rated at 200 mA with a voltage capacity up to 30 volts AC/DC, making it suitable for moderate power switching applications.

It offers excellent electrical performance with a maximum release time of 0.5 milliseconds and an operating time including bounce of 1 millisecond, ideal for applications needing swift, accurate switching. The mechanical life is rated up to 100 million operations, underscoring its durability.

Operating temperatures range from -40°C to 125°C, making it adaptable for diverse industrial and laboratory environments. The compact form factor with a width of 2.54 mm and length of 56.5 mm allows easy placement on printed circuit boards using wire terminals.

Conforming to ISO standards and part of the GC series, this reed switch is suitable for use in instrumentation, automation, industrial control, and signal switching applications where dependability and precision are paramount.

The switch features a single pole changeover (SPCO) contact configuration. Maximum switching current of 200 mA ensures handling of small current loads. Low contact resistance of 100 mΩ with rhodium-plated contacts for durability.

Hermetically sealed glass envelope for reliable operation and protection. High mechanical operational life of 10^8 cycles. Wide operating temperature range from -40°C to 125°C suits harsh environments. Compact dimensions (2.54 mm width x 56.5 mm length) fit PCB mounting easily.

Fast switching with release time of 0.5 ms and operating time including bounce of 1 ms. Complies with ISO standards; part of the GC series.

This Reed Switch is ideal for electronic and electrical applications including automation systems, industrial manufacturing equipment, instrumentation, control systems and signal switching tasks that require high precision and long life.
