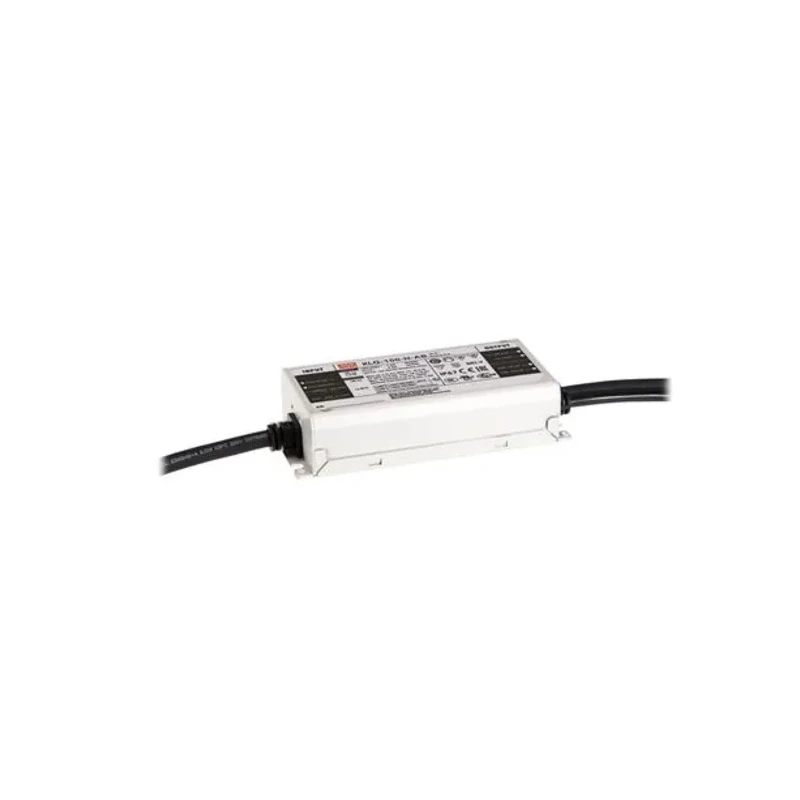

MEAN WELL IP67 5 Output AC-DC LED Driver 56V 100W 2.1A Potentiometer Dimming

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL IP67 5 Output AC-DC LED Driver 56V 100W 2.1A Potentiometer Dimming

Name: MEAN WELL IP67 5 Output AC-DC LED Driver 56V 100W 2.1A Potentiometer Dimming
Brand: MEAN WELL
SKU: 169959



Category LED Drivers Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Model	IP67
IP Rating	IP67
Mount Type	Screw
Series	XLG-100
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Current
Number of outputs	5
Terminal type	Wire
Protection Functions	OVP/SCP/OCP/OTP
Maximum Output Power	100W
Input Voltage	100, 305V
Output Voltage	56V
Power Dissipation	0.5W
Standards/Approvals	CCC, CE, EAC, CB, ENEC, SELV, BIS, UL
Dimming Operation	Potentiometer
Primary Type	AC-DC
Driver Current	2.1A
LED Voltage	100, 305V ac

Key Features

Encased in a metal IP67 rated enclosure suitable for outdoor use.
Operates with constant current mode ensuring stable LED performance.
High efficiency of up to 92% with fanless design for silent operation.
Includes multiple protection functions such as OVP, SCP, OCP, and OTP for device safety.
Supports input voltage range of 100 to 305VAC for versatile power environments.
Features potentiometer dimming control for adjustable LED brightness.
Equipped with 5 output channels delivering 2.1A driver current per channel.
Complies with international standards including CCC, CE, EAC, CB, ENEC, SELV, BIS, and UL.

Product Description

MEAN WELL XLG-100-H-A IP67 Rated 5 Output LED Driver offers a robust and reliable AC-DC power supply solution for LED lighting systems. This model features a metal case rated IP67, making it highly suitable for outdoor and challenging environmental conditions. It supports an input voltage range of 100 to 305VAC and delivers a constant current driver output of 2.1A across five channels with a total power rating of 100W and an output voltage of 56V.

The driver incorporates a potentiometer for dimming operation, allowing precise brightness control of connected LED fixtures. Its fanless design coupled with high efficiency, up to 92%, enables quiet operation and reduced thermal stress for longer device lifespan. Protection mechanisms including over-voltage, short-circuit, over-current, and over-temperature protections ensure safety and reliability under various operating conditions.

This LED driver conforms to multiple international standards and approvals such as CCC, CE, EAC, CB, ENEC, SELV, BIS, and UL, ensuring compliance and reliability in diverse markets. Its enclosed configuration with screw mounting type enhances installation flexibility across different applications.

IP67 metal enclosure ensures waterproof and dustproof performance for outdoor applications. Constant current driver mode maintains stable LED illumination output. Potentiometer dimming provides flexible lighting control options.

Wide input voltage range supports global AC power sources. High efficiency up to 92% with fanless construction reduces maintenance. Multiple safety protection functions safeguard the unit and connected LEDs. Five output channels deliver consistent current loads suitable for multi-LED setups.

Certified to multiple international safety and quality standards. Designed for industrial, commercial, water treatment, and outdoor LED lighting installations.

This product is made in China and categorized under LED Drivers in the Electronics & Electricals sector. For further product options, users can explore the LED Drivers category on EnvMart.
