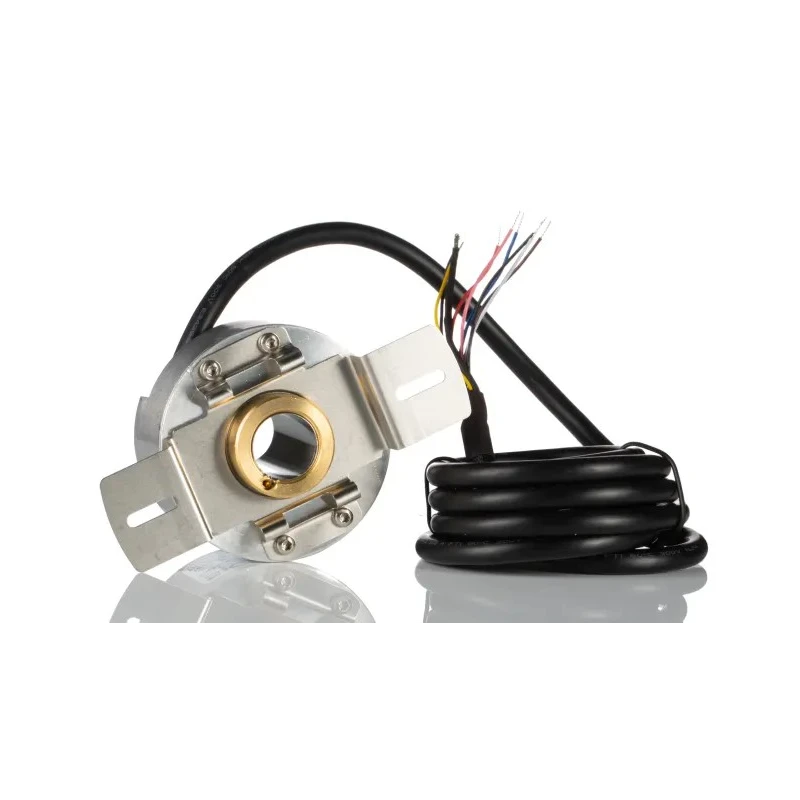

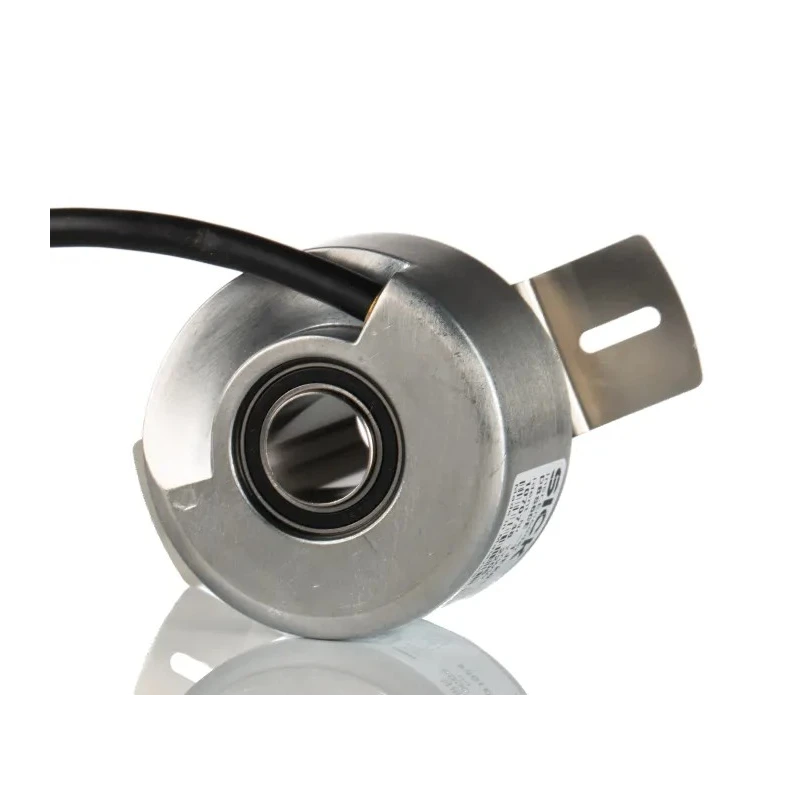

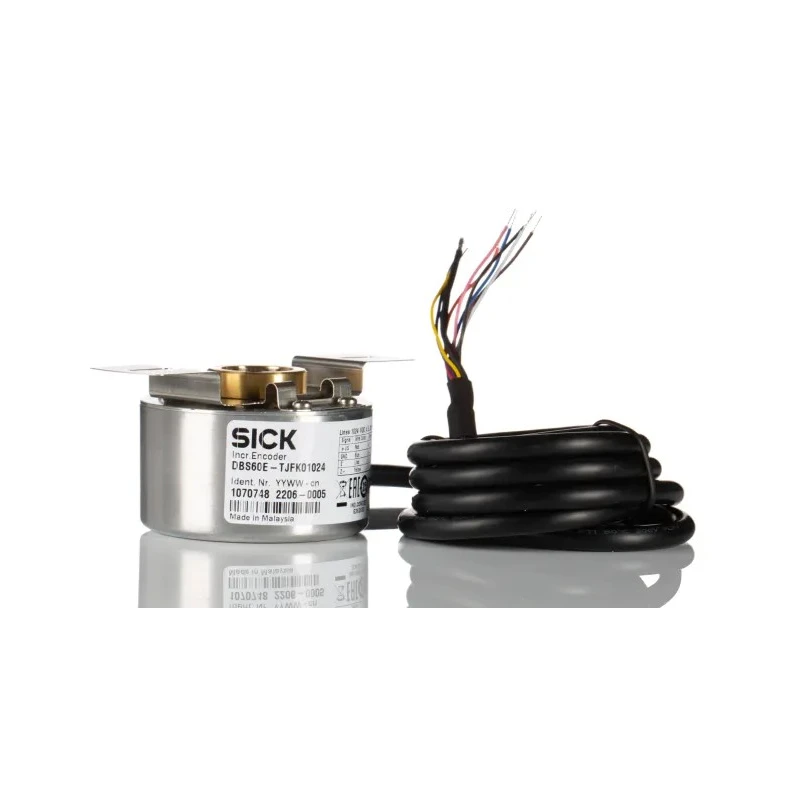

SICK DBS60 Core Series Incremental Encoder Hollow Shaft 15.87 mm Diameter TTL HTL Signal 30V 1024 PPR DBS60

SICK DBS60 Core Series Incremental Encoder model DBS60 features a hollow shaft design with a 15.87 mm diameter, providing reliable measurement of position, speed, and distance. Operating with a 30V power supply, this encoder supports up to 1024 pulses per revolution with TTL and HTL output signals for precise control in automation applications.

The encoder has a compact housing diameter of 58 mm and a depth of 41.8 mm, ideal for installations where space constraints are critical. Its rugged IP65 rated enclosure ensures protection against dust and splashing water, while it operates reliably within a temperature range of -30°C to 100°C, making it suitable for demanding industrial environments.

Designed for hollow shaft mounting, it supports shafts up to 15.87 mm diameter with options for insulated shafts and rear housing clamping for secure attachment. The product meets the EN 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility, ensuring stable performance in electrically noisy industrial settings.

With a maximum rotational speed of 9000 rpm and switching frequency of 300 kHz, the DBS60 encoder is ideal for applications requiring fast and accurate rotary position feedback such as factory automation, packaging machinery, elevators, and logistics systems. The cable terminal allows versatile connectivity to control equipment.

This Incremental Encoder's compact size, robust construction, and flexible signal interfaces make it suited for motion control tasks across multiple industries including manufacturing, material handling, and robotics.

Supports up to 1024 pulses per revolution for precise reading. IP65 protection rating for durability in harsh conditions. Compact 58 mm housing with shallow mounting depth. Wide operating temperature range from -30 to 100 degrees Celsius.

High speed capability up to 9000 rpm. Reliable cable terminal connection for control signal output. Hollow shaft mounting fits shafts of 15.87 mm diameter. Certified to electromagnetic compatibility EN 61000-6-2 and EN 61000-6-3.

Switching frequency supports up to 300 kHz signal processing. Manufactured in Malaysia following strict quality standards. Explore the full range of SICK encoders and motion control sensors at EnvMart for enhanced automation and control solutions.
