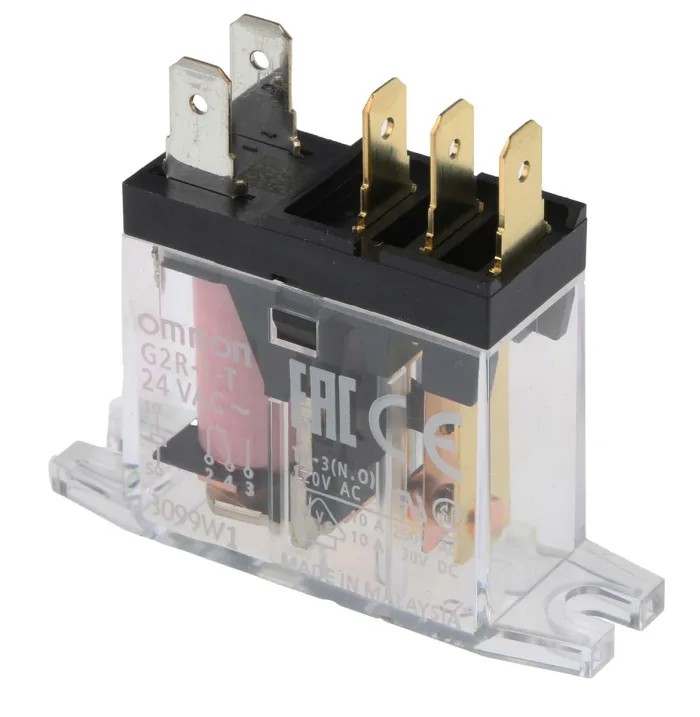

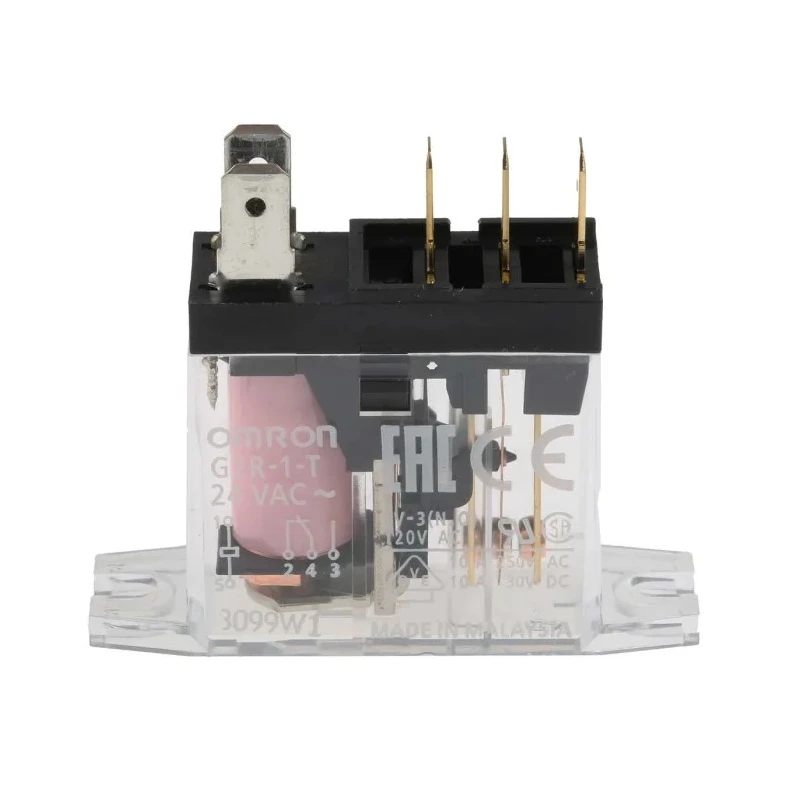

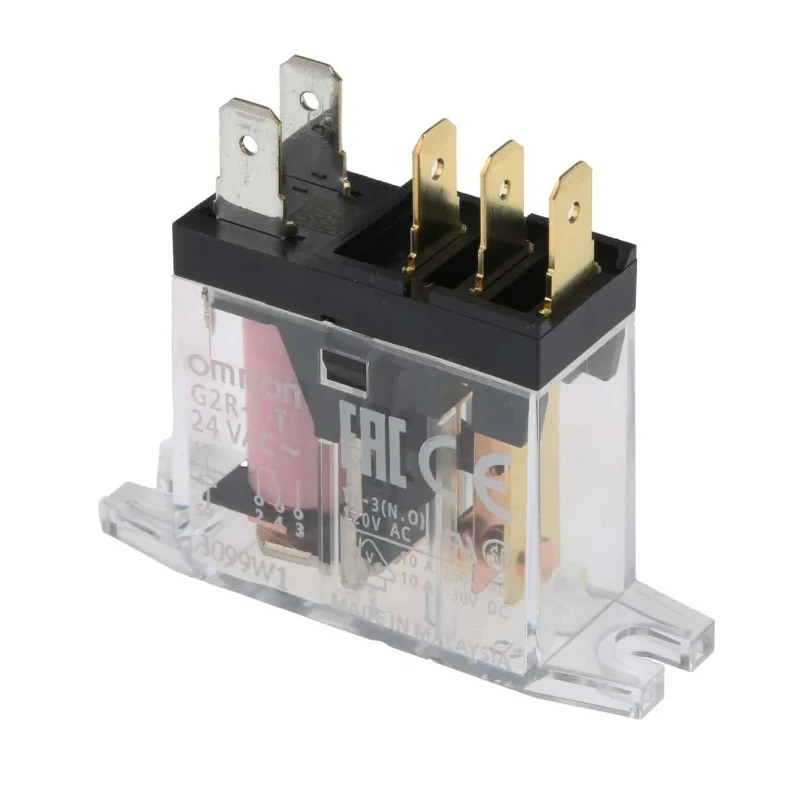

Omron Panel Power Relay 24V AC Coil 10A Switching Current SPDT G2R-1-T AC24

Omron G2R-1-T AC24 Panel Power Relay is engineered for high performance in industrial and electrical automation applications. It features a 24V AC coil that operates efficiently within a wide temperature range from -40°C to 70°C, making it suitable for harsh environments.

This relay offers a single pole double throw (SPDT) contact configuration with a switching current of 10A and switching power capacity of 2.5 kVA, allowing it to manage substantial electrical loads reliably. The contact materials are made of high-quality silver alloy, which ensures a low contact resistance of 30 milliohms, enhancing signal integrity and relay longevity.

Designed for convenient installation, the relay uses quick connect terminals ideal for panel mounting applications. Its compact dimensions (38 mm height, 14 mm width, 45 mm length) enable space-efficient integration within electrical control panels and industrial machinery.

The coil resistance is 260 ohms, and the coil requires 900 milliwatts of power, optimizing energy consumption without compromising performance. It supports switching voltages of up to 125V DC and 380V AC, thus compatible with a broad range of power supplies.

RoHS compliance confirms the product meets strict environmental and safety standards, making it suitable for use in diverse industrial sectors including manufacturing, automation, HVAC, and power distribution.

Designed for panel mounting with quick connect terminals. Wide operating temperature range from -40°C up to 70°C. Switching current capacity of 10A with SPDT contact configuration. Compact form factor for efficient panel integration.

Silver alloy contacts ensure durability and low resistance. Low coil power consumption enhances energy efficiency. High switching power capacity of 2.5 kVA supports demanding applications. Compliant with RoHS environmental standards.

Supports both DC and AC switching voltages.

This reliable and compact Power Relay is well-suited for electrical and industrial automation systems requiring durable, efficient switching components. For more precision products and components, explore our extensive range at EnvMart.
