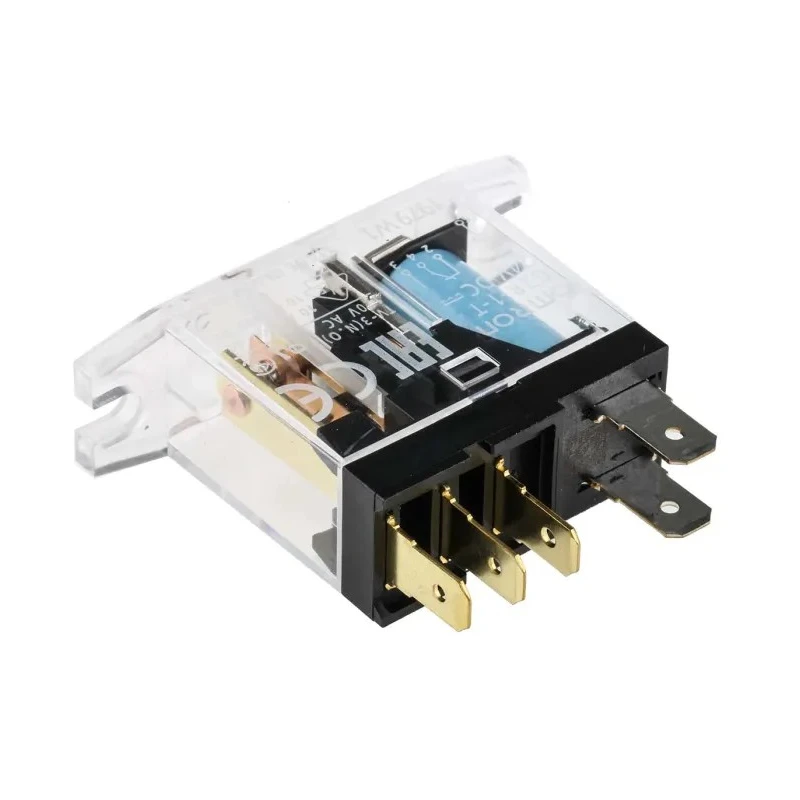

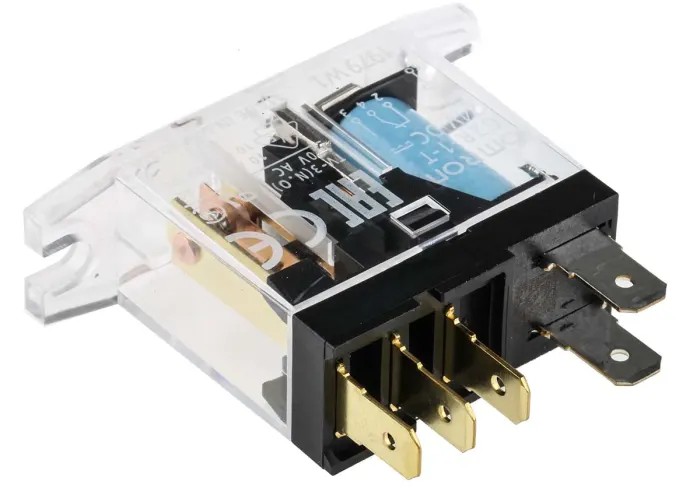

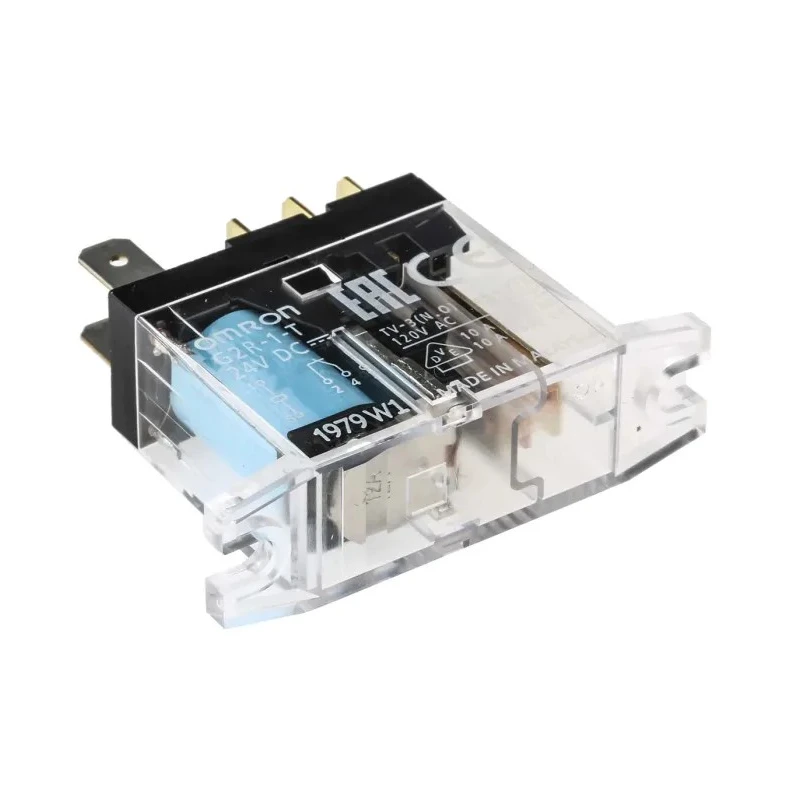

Omron Panel Power Relay 24V DC Coil, 10A Switching Current, SPDT Contact Configuration G2R-1-T DC24

Omron G2R-1-T DC24 Panel Power Relay is a high-performance electrical component designed for power distribution and control systems operating at 24V DC coil voltage. It features an SPDT contact configuration allowing for versatile switching applications while supporting a switching current capacity of 10A. This relay is part of the reliable G2R series known for durability and consistent operation in industrial and automation settings.

The relay is panel mountable, facilitating straightforward installation in electrical and electronic equipment. Contacts are made with silver alloy, ensuring excellent conductivity and extended lifespan. It operates efficiently across a broad temperature range from -40°C to 70°C, suitable for various environmental conditions.

Its switching capabilities include handling up to 125V DC and 380V AC voltages, making it suitable for high voltage applications. The coil resistance is 1.1kΩ with a low coil power consumption of 530mW, supporting energy-efficient operation.

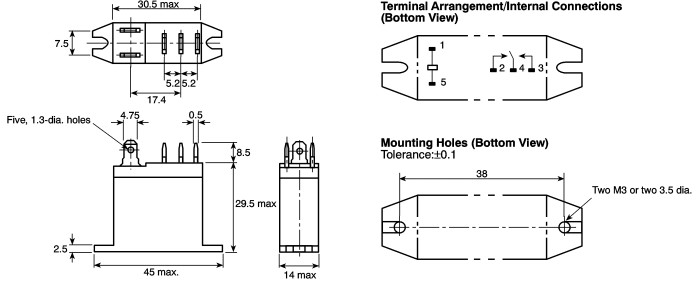

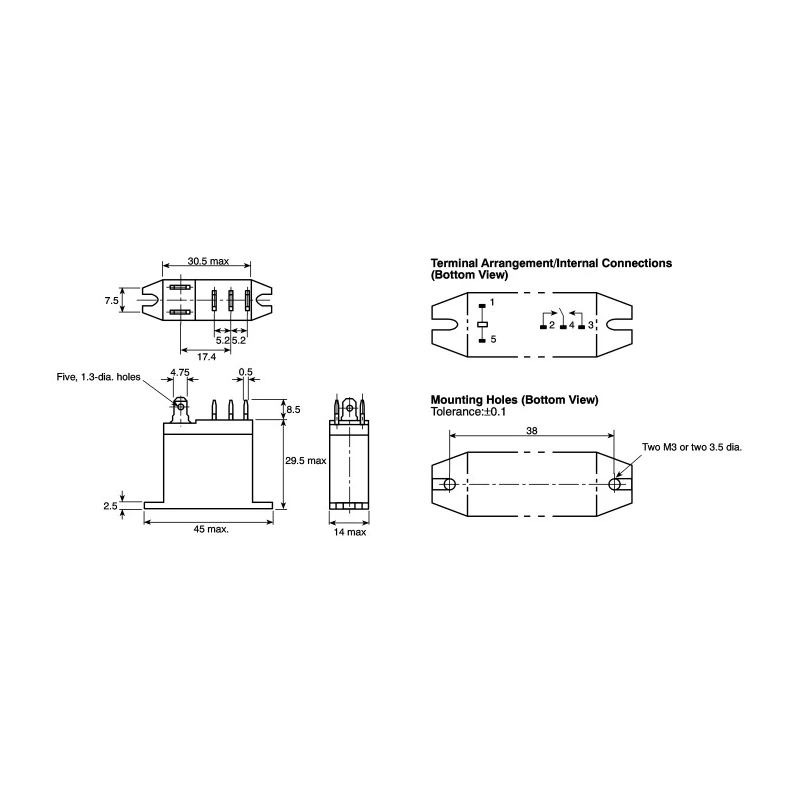

This power relay complies with RoHS standards, ensuring compliance with environmental regulations. Its compact size of 45mm length, 38mm height, and 14mm width allows for space-saving installations in control panels.

Operates at 24V DC coil voltage for efficient power control. SPDT contact configuration provides versatile switching options. Panel mount design ensures easy installation and secure fitting. Silver alloy contact material enhances conductivity and durability.

Handles switching currents up to 10A for high-power applications. Compact dimensions of 45mm length, 38mm height, and 14mm width. Switching capabilities include 125V DC and 380V AC voltages. Wide operating temperature range from -40°C to 70°C.

Low coil resistance of 1.1kΩ with coil power consumption of 530mW. Complies with RoHS standards for environmental compliance.

Widely used in industrial automation systems, machinery control, electronic circuitry, and electrical equipment requiring reliable and efficient power relay operation. Omron's G2R-1-T DC24 offers exceptional performance in panel power relay applications.
