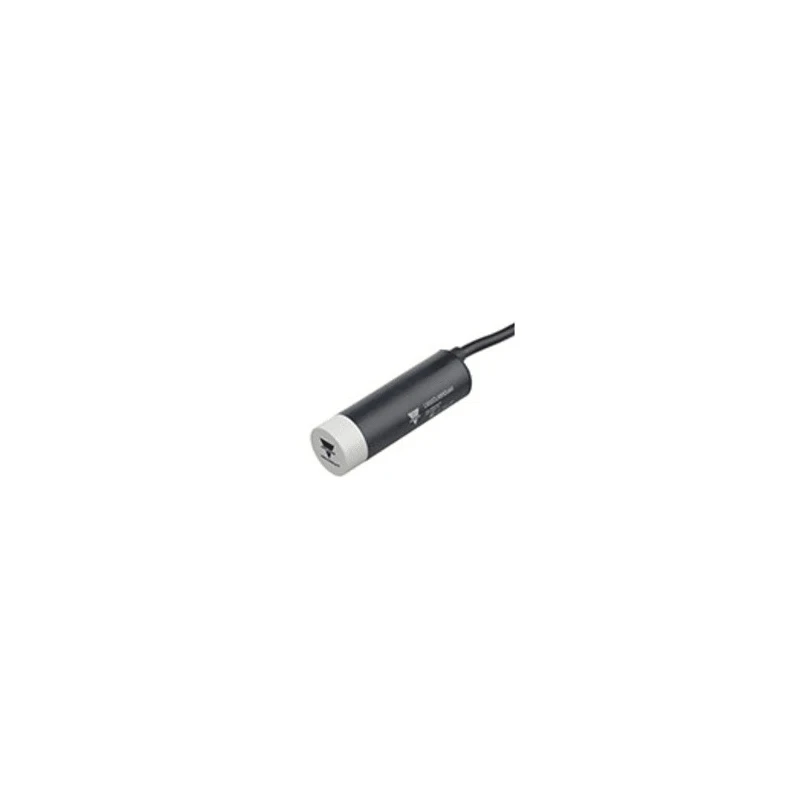

Carlo Gavazzi Threaded Barrel Capacitive Proximity Sensor 20 mm, M32 Relay 230V ac 255V dc CB32CLN20RTAX5M

Free Delivery in India | Lowest Global Shipping Charges

Carlo Gavazzi Threaded Barrel Capacitive Proximity Sensor 20 mm, M32 Relay 230V ac 255V dc CB32CLN20RTAX5M

Name: Carlo Gavazzi Threaded Barrel Capacitive Proximity Sensor 20 mm, M32 Relay 230V ac 255V dc CB32CLN20RTAX5M
Brand: Carlo Gavazzi
SKU: 167575
Price: 320.67 USD
Availability: InStock



Category Capacitive Proximity Sensor Brand Carlo Gavazzi Condition New

Specifications

Country of Origin	Lithuania
Brand	Carlo Gavazzi
Length	98.5mm
Model	CB32CLN20RTAX5M
IP Rating	IP67
Width	98.5mm
Mount Type	Non-Flush
Housing Material	Polybutylene Terephthalate
Output type	Relay
Maximum Operating Temperature	70°C
Thread Size	M32
Minimum Operating Temperature	-20°C
Terminal type	Pre-Cabled
Protection	Transients and reverse polarity
Interface Type	IO-Link
Body Style	Threaded Barrel
Maximum dc Voltage	255V dc
Shielding	Unshielded
Maximum Supply Voltage	230V ac
Maximum Detection	20mm
Adjustable sensing distance	4-20 mm

Key Features

The sensor features an M32 threaded barrel body style for secure mounting and durability.
It operates with a maximum supply voltage of 230 V AC and a maximum DC voltage of 255 V DC.
Provides relay output type with unshielded sensing capability.
Constructed with Polybutylene Terephthalate housing for robust performance and IP67 ingress protection rating.
Equipped with an adjustable sensing distance range from 4 to 20 mm for versatile applications.
Designed for non-flush mounting with a pre-cabled terminal type for ease of installation.
Operates reliably within a temperature range of -20°C to 70°C.
Protected against transients and reverse polarity, ensuring sensor longevity.

Product Description

Carlo Gavazzi CB32CLN20RTAX5M is a threaded barrel capacitive proximity sensor offering precise sensing capabilities with a maximum detection distance of 20 mm. The sensor features robust construction using Polybutylene Terephthalate housing material, making it suitable for demanding industrial environments. It has a threaded M32 barrel body style and is designed for non-flush mounting, facilitating easy integration into existing setups.

This capacitive sensor operates with a maximum supply voltage of 230 V AC and a maximum DC voltage of 255 V DC, supporting relay output for direct load driving. It is pre-cabled for convenient installation and provides IP67 ingress protection for water and dust resistance.

The adjustable sensing distance ranges from 4 to 20 mm, allowing versatile use for detecting solid, fluid, or granulated substances in industrial automation and control systems. The sensor functions reliably across a wide operating temperature range from -20°C to 70°C and includes protections for transients and reverse polarity, enhancing operational reliability and lifetime.

Certified as new and made in Lithuania, this sensor is ideal for applications such as automation, manufacturing process monitoring, material handling, and level detection. Its relay output makes it suitable for direct interface with control equipment without additional amplifiers.

The sensor has an M32 threaded barrel and a length and width of 98.5 mm. It includes unshielded sensing and uses IO-Link interface technology. Protection features include transient and reverse polarity protection. Designed without hazardous area certification but suitable for various industrial usage scenarios.

The Carlo Gavazzi CB32CLN20RTAX5M delivers reliable sensing performance with durable materials and robust design. Explore EnvMart’s Capacitive Proximity Sensors category for more advanced sensors and automation products suited for industrial, laboratory, and manufacturing applications.
