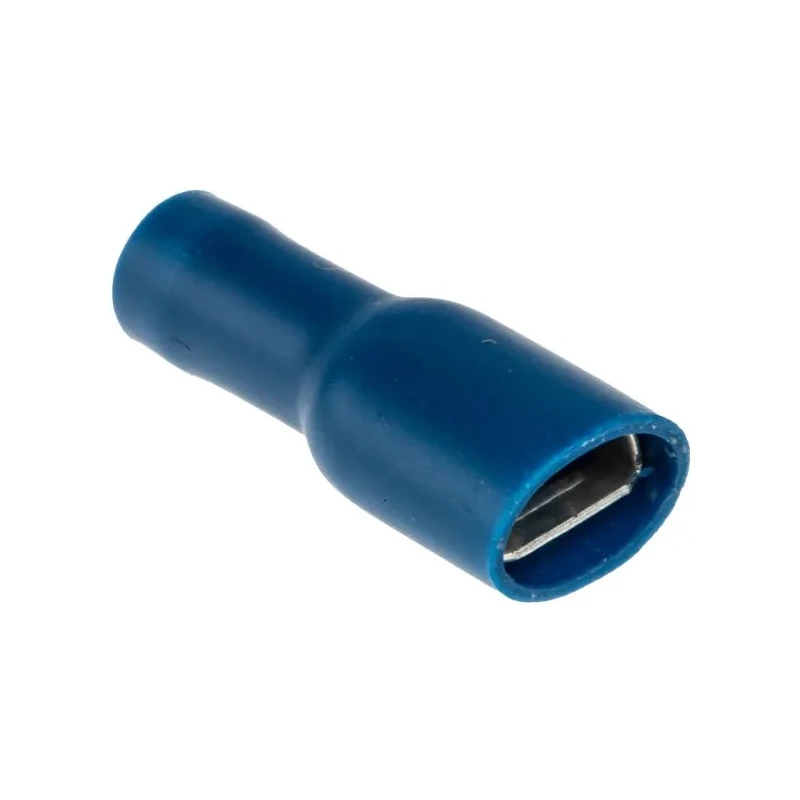

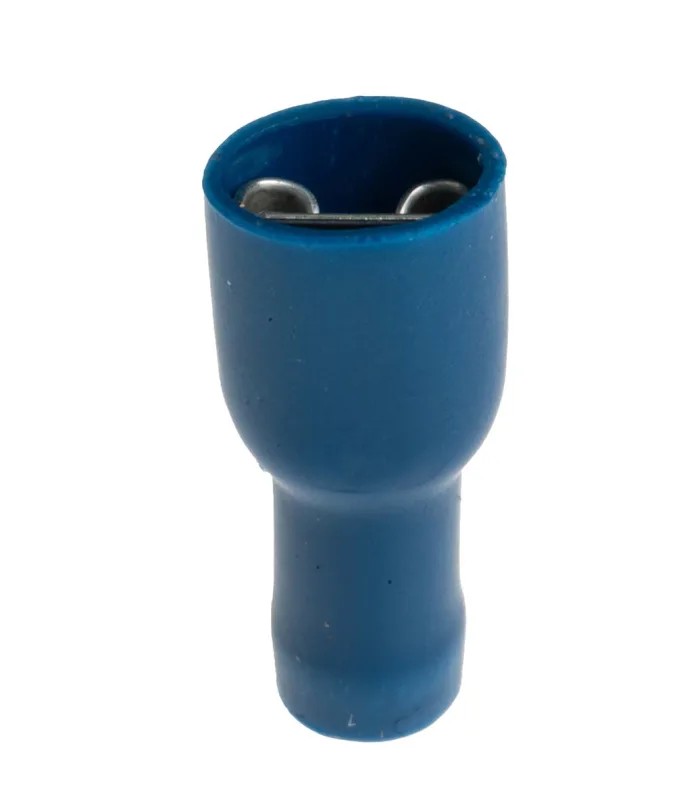

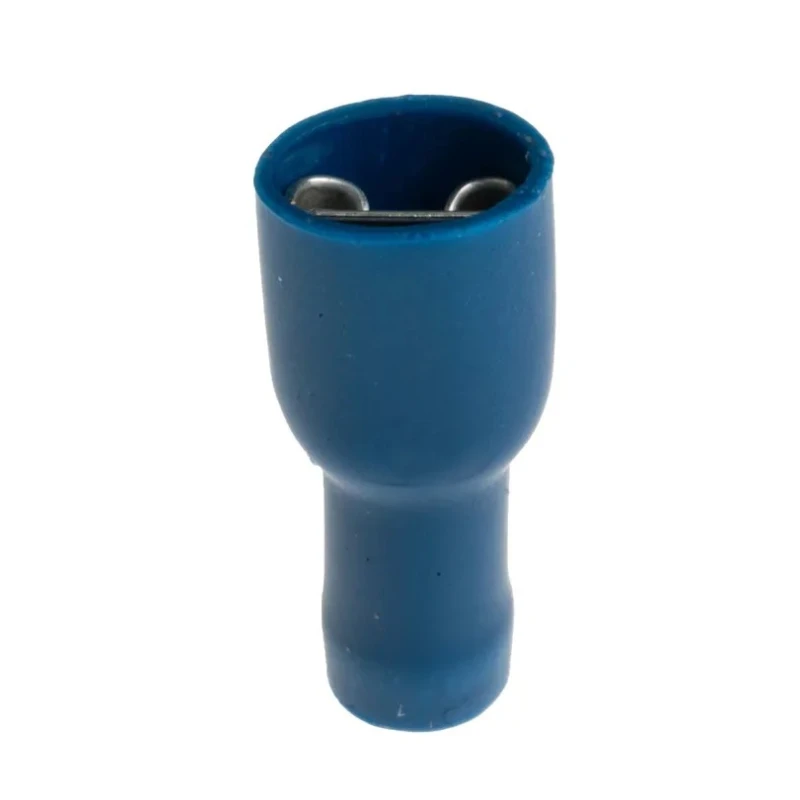

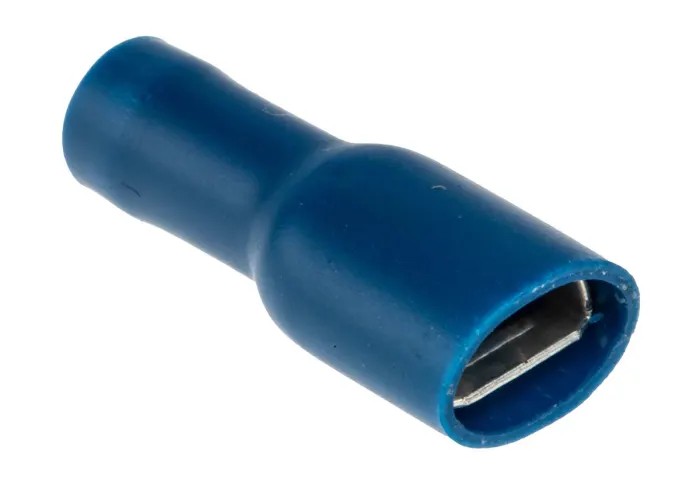

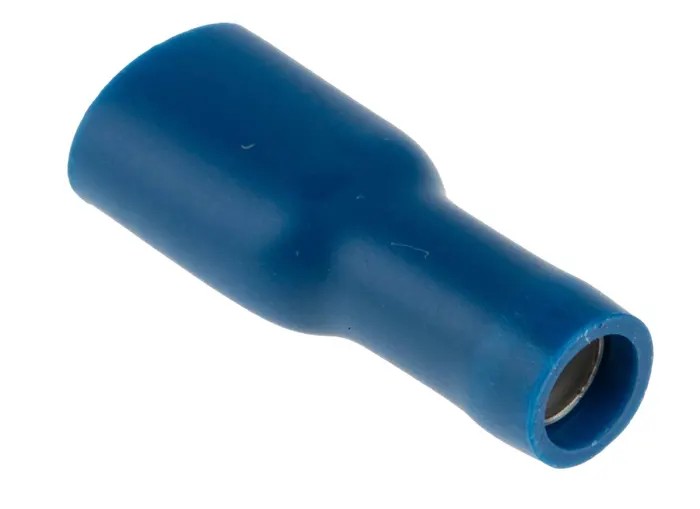

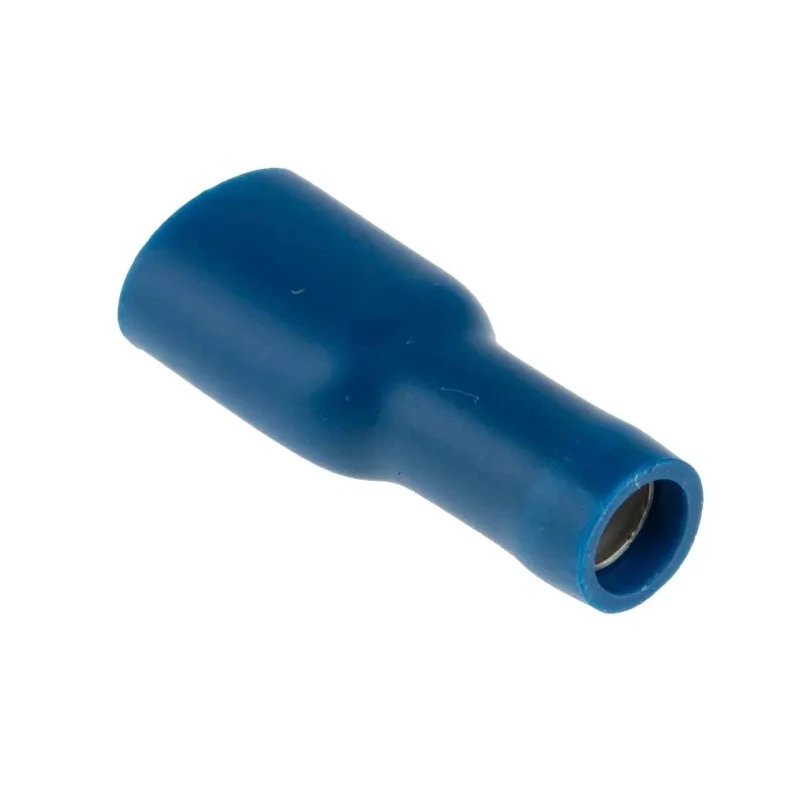

RS PRO Blue Insulated Female Spade Connector Crimp 6.3 x 0.8 mm Tab Size 16 AWG to 14 AWG 534-705
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| Orientation | Straight |
| Model | 534-705 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 21.5mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Tab Width | 6.3mm |
| Tab Thickness | 0.8mm |
| Tab Size | 6.3 x 0.8 mm |
| CRIMP CONNS-RECPTCLE 0.25Brand | NEUTRAL |
Key Features
- Designed for quick and reliable crimped electrical connections.
- Fully insulated with blue vinyl for protection against electrical shock and contamination.
- Double crimp design with internal copper sleeve for enhanced strength and vibration resistance.
- Made from tin-plated brass ensuring corrosion resistance and excellent conductivity.
- Suitable for industrial, automotive, HVAC, and domestic appliance applications.
- Colour-coded insulation allows easy terminal size identification.
- Straight orientation for ease of wire insertion and connection.
- Terminal overall length is 21.5 mm for compact installations.
Product Description
RS PRO 534-705 Blue Insulated Female Spade Connector is a high-quality crimp-type female terminal designed for use with 16 AWG to 14 AWG wires having a 6.3 x 0.8 mm tab size. The connector is fully insulated with blue vinyl material to provide protection against electric shock and environmental contaminants such as dirt, grease, and liquids, ensuring reliable and safe electrical connections.
Constructed with a tin-plated brass body and an internal copper sleeve, this Spade Connector offers enhanced mechanical strength, corrosion resistance, and excellent electrical conductivity. The double crimp design secures the wire effectively, reducing the risk of wire stress and failure due to vibration or mechanical strain.
The connector’s straight orientation and funnelled insulation design allow for easy wire insertion and quick mating with male tab connectors. It is suitable for diverse industrial applications including control systems, automotive wiring, HVAC units, power supplies, communication equipment, and domestic appliances such as dishwashers and dryers.
The product features colour-coded insulation for easy identification of terminal size and offers dependable performance in environments requiring secure and robust wire termination. Its compact overall length of 21.5 mm allows it to be used in tight electrical assemblies.
Quick and reliable crimp connection without soldering. Fully insulated for shock protection and to prevent short circuits. Internal copper sleeve for enhanced crimp strength and vibration resistance. Tin-plated brass contact material for durability and conductivity.
Blue vinyl insulation for easy size identification. Straight connector orientation for efficient wire handling. Ideal for industrial, automotive, HVAC, and domestic applications. Compact overall length of 21.5 mm facilitates installation in confined spaces.
Explore the complete range of RS PRO connectors and electrical components available at EnvMart for your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The spade connector has a tab size of 6.3 x 0.8 mm.
It is suitable for use with wire sizes ranging from 16 AWG to 14 AWG, or 1.5 mm² to 2.5 mm².
The contact material is made of brass, which is tin-plated for enhanced conductivity and corrosion resistance.
The overall length of this connector is 21.5 mm, making it suitable for compact installations.
This model uses a crimp termination type for secure wire connections.
Yes, it is fully insulated with blue vinyl to provide protection against electrical shock and contaminants.
The connector has a straight orientation, which facilitates ease of wire insertion and connection.
It is suitable for various applications including industrial, automotive, HVAC, and domestic appliances.
The connector features a double crimp design with an internal copper sleeve, enhancing its mechanical strength and vibration resistance.
The insulation material used is vinyl, which helps in protecting against environmental contaminants.
The spade connector is manufactured in Taiwan.
The colour-coded insulation allows for easy identification of the terminal size, aiding in proper usage.
