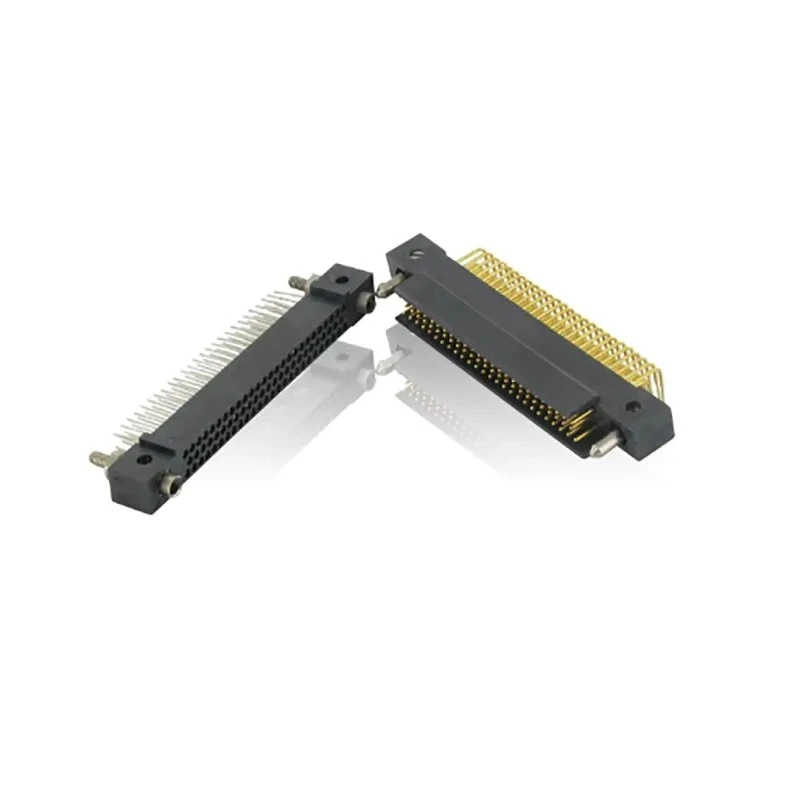

Amphenol Socapex HDAS Series Straight PCB Socket 20-Contact 3 Row 1.905 mm Pitch Solder HDASE020YD-000LF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Socapex HDAS Series Straight PCB Socket 20-Contact 3 Row 1.905 mm Pitch Solder HDASE020YD-000LF

Name: Amphenol Socapex HDAS Series Straight PCB Socket 20-Contact 3 Row 1.905 mm Pitch Solder HDASE020YD-000LF
Brand: Amphenol Socapex
SKU: 167005
Price: 169.68 USD
Availability: InStock



Category PCB Socket Brand Amphenol Socapex Condition New

Specifications

Country of Origin	France
Voltage	750V
Brand	Amphenol Socapex
Orientation	Straight
Current	4.5A
Model	HDASE020YD-000LF
Mount Type	PCB
Housing Material	Glass Filled Thermoplastic Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	HDAS
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-65°C
Number of Rows	3
Pitch	1.905mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male/Female
Connector System	Board-to-Board

Key Features

Designed for robust and reliable performance in harsh environments.
Employs glass filled thermoplastic liquid crystal polymer housing for durability.
Supports solder termination type for secure soldering to PCB.
Rated for 4.5A current and 750V voltage operation.
Operates reliably within -65°C to 125°C temperature range.
Features male/female copper alloy contacts with gold plating for enhanced conductivity.
Straight orientation suitable for PCB mounting.
Part of the HDAS series for compact and high-density board-to-board interconnects.

Product Description

Amphenol Socapex presents the HDAS Series Straight PCB Socket, model HDASE020YD-000LF, a high-performance connector designed for board-to-board applications requiring high density and robust reliability. This PCB Socket comprises 20 contacts arranged in 3 rows with a pitch of 1.905 mm, allowing for compact interconnection of PCB assemblies.

The housing material is a glass filled thermoplastic liquid crystal polymer, which provides excellent mechanical strength and resistance to harsh environmental conditions. The connector features solder termination, ensuring reliable and secure attachment to printed circuit boards.

Electrical specifications include a current rating of 4.5 amperes and voltage rating of 750 volts, making it suitable for various industrial and electronic applications. The design supports operation across a wide temperature range from -65°C to 125°C, ensuring stable performance in extreme conditions.

The contacts are made of copper alloy with gold plating, providing superior electrical conductivity and corrosion resistance. This model supports both male and female contacts in a straight orientation for easy mounting on PCBs.

The HDAS series is widely used in industrial electronics where installation cost, reliability, and compactness are critical, such as aerospace, defense, manufacturing, and high-performance computing sectors.

Robust design for harsh environment applications. High-density contact arrangement with 20 contacts in 3 rows. Glass filled thermoplastic housing for mechanical resilience. Solder termination for secure PCB connection. Electrical ratings: 4.5A current, 750V voltage.

Wide operating temperature range: -65°C to 125°C. Copper alloy contacts with gold plating for performance and durability. Straight orientation for easy board mounting. Manufactured in France adhering to high quality standards.

This connector is an excellent choice for demanding industrial, laboratory, aerospace, and manufacturing environments seeking reliable board-to-board connectivity. Explore our extensive Electronics & Electricals collection on EnvMart for more compatible connectors and components.
