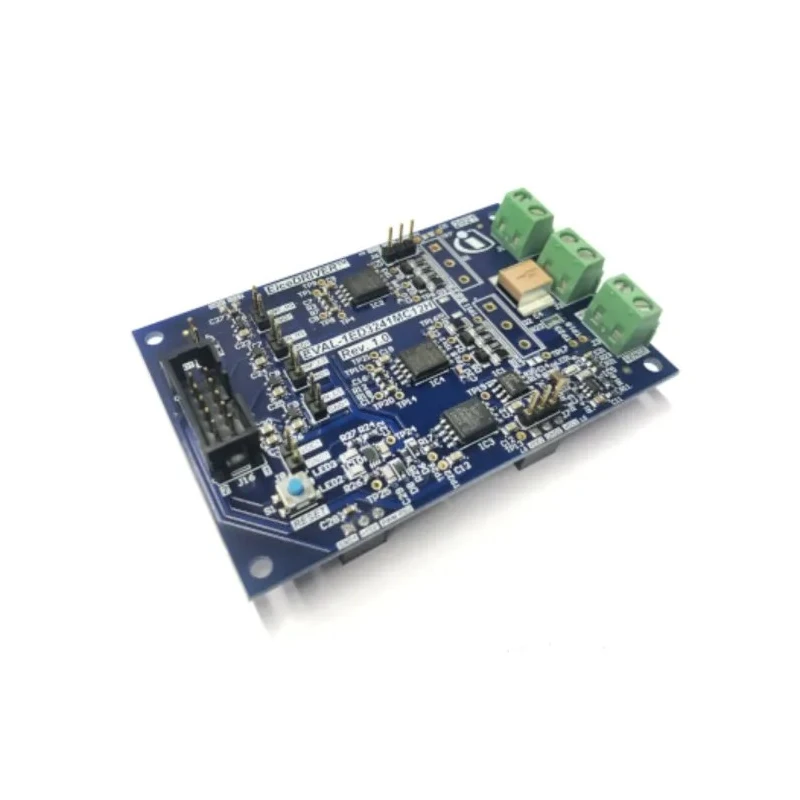

Infineon Evaluation Board for EiceDRIVER for 1ED3241MC12H UPS High Voltage DC/DC Converter and DC/AC EVAL1ED3241MC12HTOBO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | EVAL1ED3241MC12HTOBO1 |
| For Use With | UPS, High Voltage DC/DC Converter and DC/AC Inverter, Welding, AC and Brushless DC Motor Drives |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | 1ED3241MC12H |
| Kit Name | Evaluation Board for EiceDRIVER |
Key Features
- Features two-level slew-rate control enabled gate driver ICs 1ED3241MC12H.
- Supports half-bridge configuration for flexibility in switching schemes.
- Allows free selection of switch type for testing and evaluation.
- Capable of handling up to 40 V absolute maximum output supply voltage.
- Provides typical 35 ns input filter with propagation delays under 110 ns.
- High common-mode transient immunity greater than 200 kV/μs.
- Includes short-circuit clamping and active shutdown features.
- 2300 V functional offset voltage capability for demanding applications.
Product Description
Infineon EVAL1ED3241MC12HTOBO1 Evaluation Board for EiceDRIVER is designed for efficient testing and evaluation of the 1ED3241MC12H gate driver IC in UPS, high voltage DC/DC converter, and DC/AC inverter applications. This board features a half-bridge configuration with two-level slew-rate control enabled gate drivers, enabling precise control and switching scheme analysis. It supports the flexible choice of switch types to accommodate various testing scenarios.
The board operates at a maximum output supply voltage of 40 V with a fast typical propagation delay of 35 ns, making it ideal for high-speed power electronics applications. Its design ensures high common-mode transient immunity exceeding 200 kV/μs, essential for robust operation in noisy power environments.
Safety features include short-circuit clamping and active shutdown to protect the board and connected components. Furthermore, the 2300 V functional offset voltage rating supports demanding industrial applications requiring high voltage tolerance.
Its galvanically isolated coreless transformer gate driver design enables effective isolation and noise reduction between control and power stages. The driver achieves a typical peak output current of 18 A, both sinking and sourcing, ensuring robust gate driving capability for power switches.
Features two-level slew-rate control enabled gate driver ICs 1ED3241MC12H. Supports half-bridge configuration for flexible evaluation of switching schemes. Allows choice of switch type for diverse application testing. Maximum 40 V absolute output supply voltage.
Typical 35 ns input filter with propagation delay up to 110 ns. High common-mode transient immunity (CMTI) above 200 kV/μs. Short-circuit clamping and active shutdown for protection. 2300 V functional offset voltage support for selected applications.
Galvanically isolated coreless transformer design. 18 A typical sinking and sourcing peak output current.
This evaluation board is suitable for industrial, laboratory, and research use within UPS systems, welding equipment, and brushless DC motor drives, making it ideal for product development, testing, and education. Explore related power and motor development tools on EnvMart to meet your project requirements.
Explore more products in our Development Board category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output supply voltage of this evaluation board is 40 V.
This evaluation board is designed for use with UPS systems, high voltage DC/DC converters, DC/AC inverters, welding equipment, and brushless DC motor drives.
The typical propagation delay for this model is 35 ns, with a maximum of 110 ns.
The 1ED3241MC12H gate driver IC features two-level slew-rate control, high common-mode transient immunity above 200 kV/μs, and supports a half-bridge configuration.
The evaluation board includes short-circuit clamping and active shutdown features to protect the board and connected components.
The typical peak output current of this unit is 18 A for both sinking and sourcing.
The country of origin for this evaluation board is India.
This evaluation board complies with RoHS standards.
It utilizes a galvanically isolated coreless transformer design, which helps in effective isolation and noise reduction between control and power stages.
The 2300 V functional offset voltage capability supports demanding industrial applications that require high voltage tolerance.
The board supports a flexible choice of switch types, enabling diverse application testing and evaluation of different switching schemes.
This kit is classified as an Evaluation Board for EiceDRIVER.
