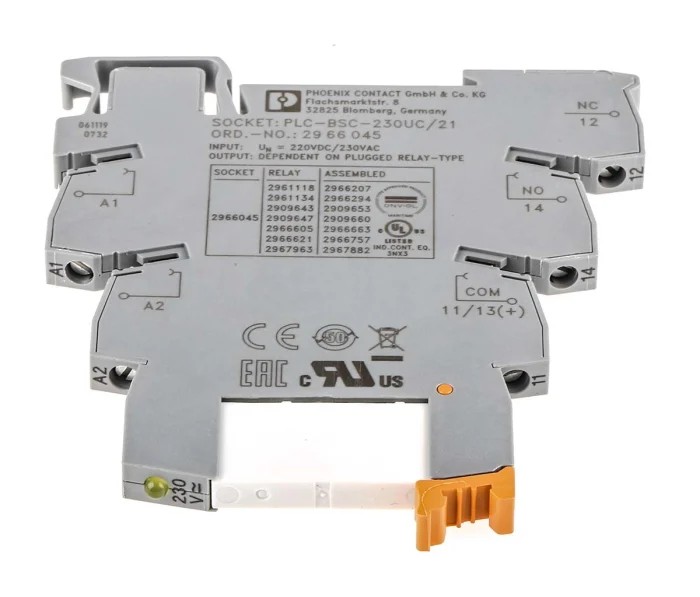

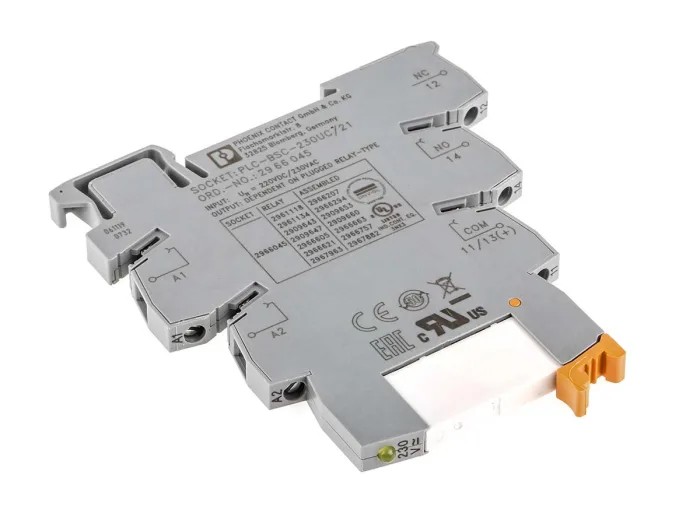

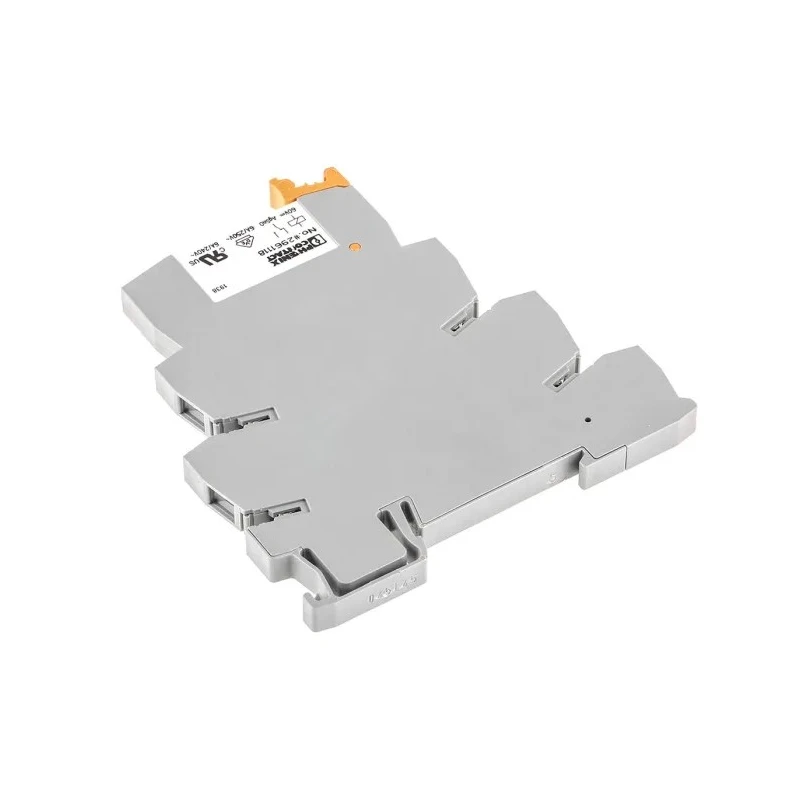

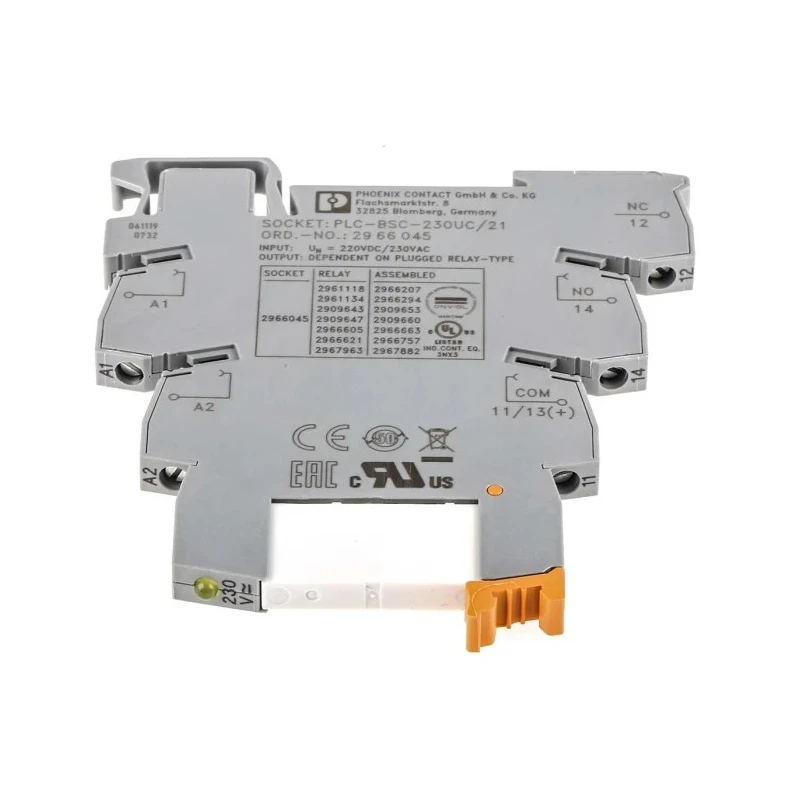

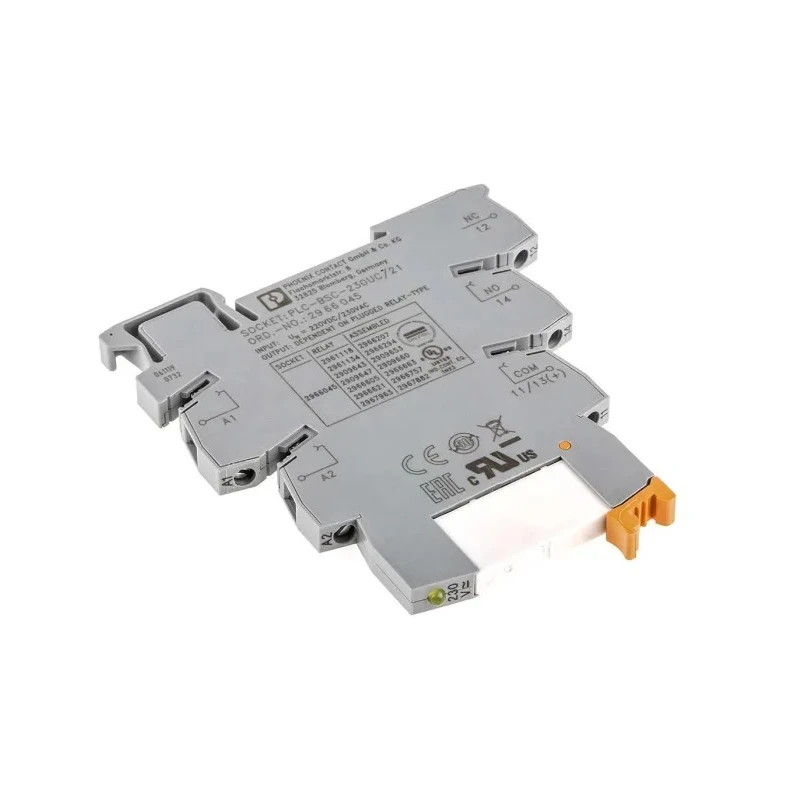

Phoenix Contact Interface Relay Module DIN Rail Mount SPDT 230V ac/dc Coil 3.2mA Current 6A Switching 2966207

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Interface Relay Module DIN Rail Mount SPDT 230V ac/dc Coil 3.2mA Current 6A Switching 2966207

Name: Phoenix Contact Interface Relay Module DIN Rail Mount SPDT 230V ac/dc Coil 3.2mA Current 6A Switching 2966207
Brand: PHOENIX CONTACT
SKU: 166653
Price: 26.45 USD
Availability: InStock



Category Interface Relay Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Brand	Phoenix Contact
Height	94mm
Length	80mm
Model	2966207
Width	6.2mm
Mount Type	DIN Rail
Contact Material	Silver Alloy
Series	PLC-RSC-230UC/21
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	6A
Terminal type	Screw
Standards/Approvals	RoHS
Coil Voltage	230V ac/dc
Coil Current	3.2mA
Switching DC Voltage	250V dc
Switching AC Voltage	250V ac

Key Features

Compact design saves space on DIN rail installations.
Electromechanical relay suitable for both AC and DC voltage switching.
SPDT configuration allows on-off switching and circuit transfer.
Secure screw terminal connections ensure reliable wiring.
Yellow LED indicator for operating voltage status.
Freewheeling damping diode protects against voltage spikes.
IP20 rated for dust protection and finger-safe operation.
Operating temperature range from -40°C to 55°C.

Product Description

Phoenix Contact 2966207 interface relay module offers a compact and efficient solution for industrial automation and control applications. Designed for DIN rail mounting, it features a 230V AC/DC coil that allows versatile power supply compatibility. The single-pole double-throw (SPDT) contact configuration makes it suitable for switching and transferring circuits in a wide range of control systems.

This relay module incorporates screw terminal connections for secure and quick installation. The included yellow LED displays the operating voltage status, facilitating monitoring during operation. The freewheeling damping diode integrated inside the relay protects the controlling circuit from harmful voltage spikes caused by sudden coil de-energization, enhancing system reliability.

With an IP20 ingress protection rating, it is protected against dust particles and provides safe handling without risk from finger contact. Silver alloy contact material ensures stable and durable electrical performance, supporting switching currents up to 6A for AC and DC applications.

The relay operates efficiently within an ambient temperature range from -40°C to +55°C, suitable for various industrial environments. Its compact dimensions of 80 mm length, 94 mm height, and 6.2 mm width contribute to space-saving designs on DIN rail systems, supporting standard NS 35/7.5 mounting rails.

Typical applications include industrial automation control, interface switching between low and high power circuits, electrical isolation, and use in programmable logic controllers (PLCs) and control panels. Suitable for industries such as manufacturing, electrical engineering, process control, and HVAC automation.

Compact DIN rail mounting relays for industrial control systems. SPDT configuration adaptable for diverse switching needs. Visual LED status indicator for easy operation monitoring. Protective damping diode increases circuit longevity.

Durable silver alloy contacts support high switching currents. Wide operating temperature tolerance for varied environments. Space-saving, lightweight, and reliable design. Discover the full range of Phoenix Contact Interface Relays and related automation components at EnvMart for dependable industrial solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The coil voltage of this relay module is 230V AC/DC, allowing it to operate with both alternating and direct current.

This model can handle a maximum switching current of 6A for both AC and DC applications.

The dimensions of this relay module are 80 mm in length, 94 mm in height, and 6.2 mm in width.

It features a single-pole double-throw (SPDT) contact configuration, allowing for versatile switching and circuit transfer.

The operating temperature range for this unit is from -40°C to +55°C, making it suitable for various industrial environments.

This relay module is designed for DIN rail mounting, supporting standard NS 35/7.5 mounting rails for easy installation.

It uses screw terminal connections, ensuring secure and reliable wiring during installation.

This relay includes a freewheeling damping diode that protects against voltage spikes, enhancing the reliability of the controlling circuit.

The contacts in this relay are made of silver alloy, which supports stable electrical performance.

This relay complies with RoHS standards, ensuring it meets environmental and safety regulations.

Typical applications include industrial automation control, electrical isolation, and use in programmable logic controllers (PLCs) and control panels, benefiting industries such as manufacturing and HVAC automation.

The yellow LED indicator displays the operating voltage status, facilitating monitoring during operation.
