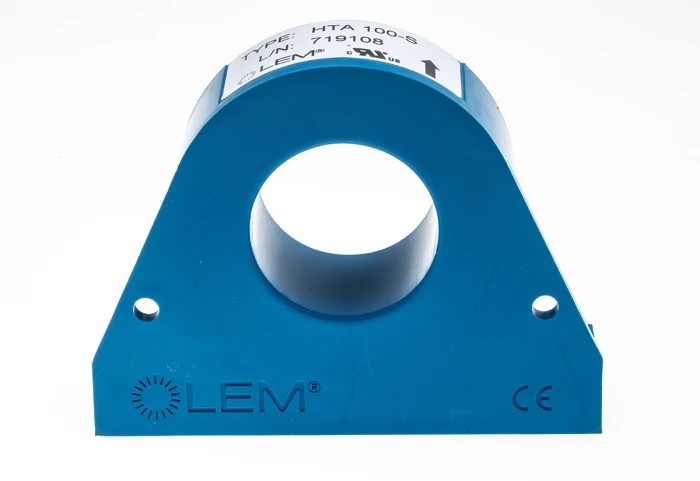

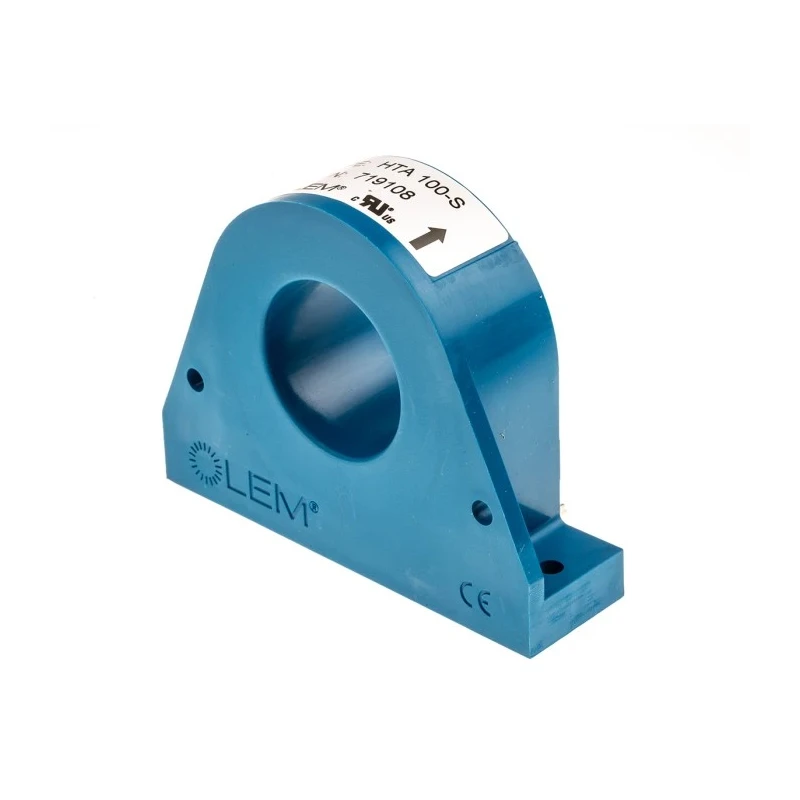

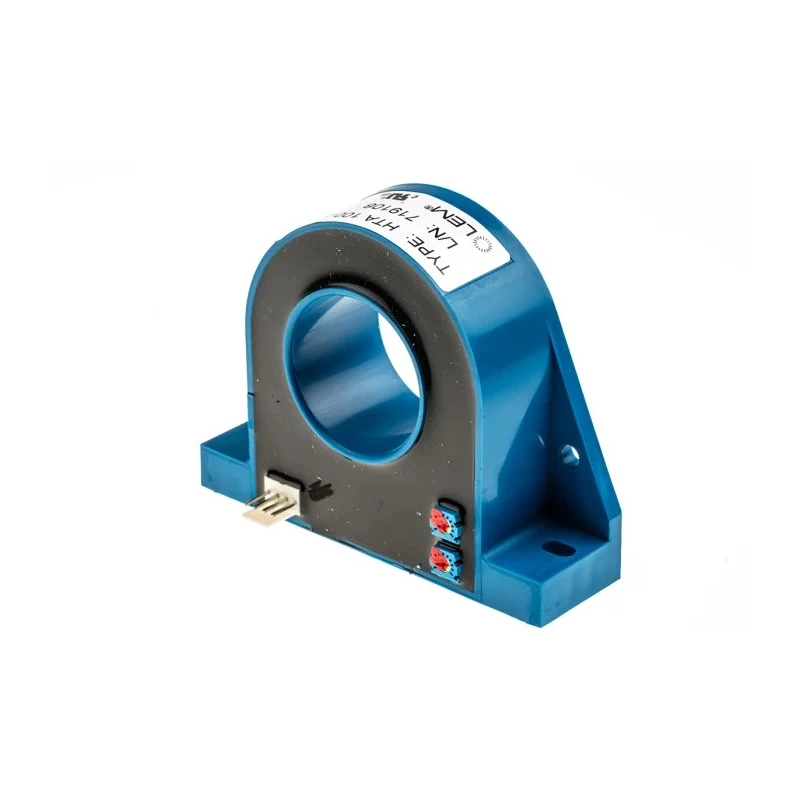

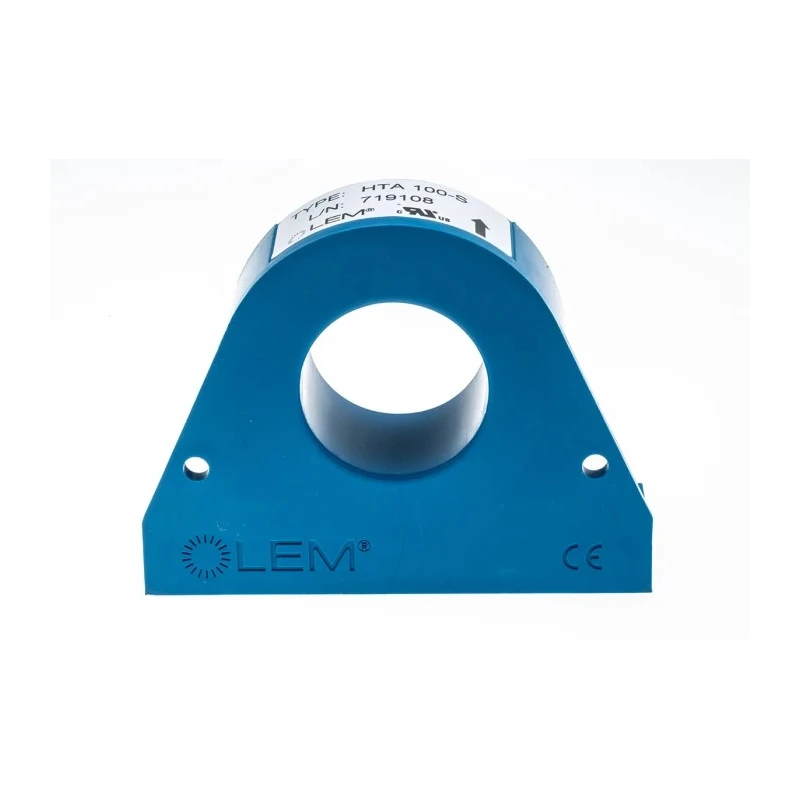

LEM HTA 100 .. 1000-S Series Current Transformer 100A 15V with 32mm Bore HTA 100-S

LEM HTA 100-S Current Transformer from the HTA 100 .. 1000-S Series offers a specialized solution for precise electronic current measurement including DC, AC, and pulse currents. This current transformer employs the Hall effect measurement principle, which enables accurate sensing without direct electrical contact, enhancing both performance and safety. It provides galvanic isolation between primary and secondary circuits, critical for industrial and laboratory applications.

The device is designed for versatile mounting options with a panel mount style suitable for both vertical and horizontal fitting. It incorporates a 32mm bore diameter which comfortably fits various conductor sizes typically found in industrial electrical setups.

Operating over a wide temperature range from -25°C to 85°C, it supports a maximum operating frequency of 50kHz, making it adaptable for diverse operational environments such as industrial automation, process control, and electrical testing. The unit features Molex terminal type connectors ensuring secure and stable wiring connections.

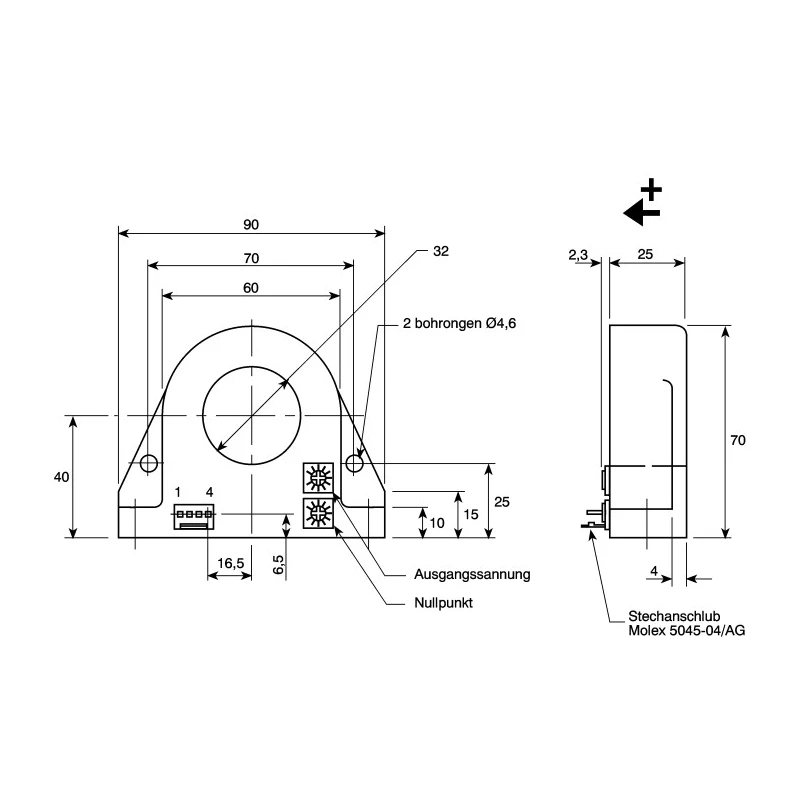

Physically, the transformer measures 90mm in width and 27.5mm in depth, weighing only 23 grams, which supports compact installations with minimal additional space required. It complies with multiple recognized standards including EN 50082-2(1992), EN 50178(1994), IEC 61010-1, and EN 50081-1(1992), ensuring reliable and safe operation according to international norms.

Typical industrial use cases include automation systems, power monitoring, electrical diagnostics, and integration in devices requiring accurate current measurement under varying electrical conditions.

Utilizes Hall effect for precise current measurement with isolation. Panel mount design supports vertical or horizontal installation. Robust temperature and frequency operational specifications. Complies with key international safety and performance standards.

Compact and lightweight design for ease of integration.
