STMicroelectronics LED Driver Evaluation Kit for LED8102S 8-Channel Direct Switch Control STEVAL-LLL010V1

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics LED Driver Evaluation Kit for LED8102S 8-Channel Direct Switch Control STEVAL-LLL010V1

Name: STMicroelectronics LED Driver Evaluation Kit for LED8102S 8-Channel Direct Switch Control STEVAL-LLL010V1
Brand: STMicroelectronics
SKU: 165842
Price: 155.95 USD
Availability: InStock



Category LED Driver Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	STEVAL-LLL010V1
For Use With	LED8102S
Standards/Approvals	RoHS and China RoHS compliant, CE Certified, WEEE compliant (2012/19/UE RAEE II)
Kit Classification	Evaluation Kit
Featured Device	LED8102S
Kit Name	Evaluation Kit for LED8102S 8-Channel LED Driver with Direct Switch Control
LED Technology	LED Driver

Key Features

Includes double-sided LED panel with LED8102S 8-channel LED driver ICs on each side.
Features an array of four independent white LEDs on one side.
Includes a pair of three RGB LEDs connected in series on the other side.
Offers full LED colour temperature control via 8-channel LED8102S drivers.
Provides direct push button ON/OFF and dimming control for easy user interaction.
Equipped with STM32 MCU including firmware to demonstrate LED sequences.
Designed for LED development and evaluation applications.
Fully compliant with RoHS, China RoHS, CE certification and WEEE directive.

Product Description

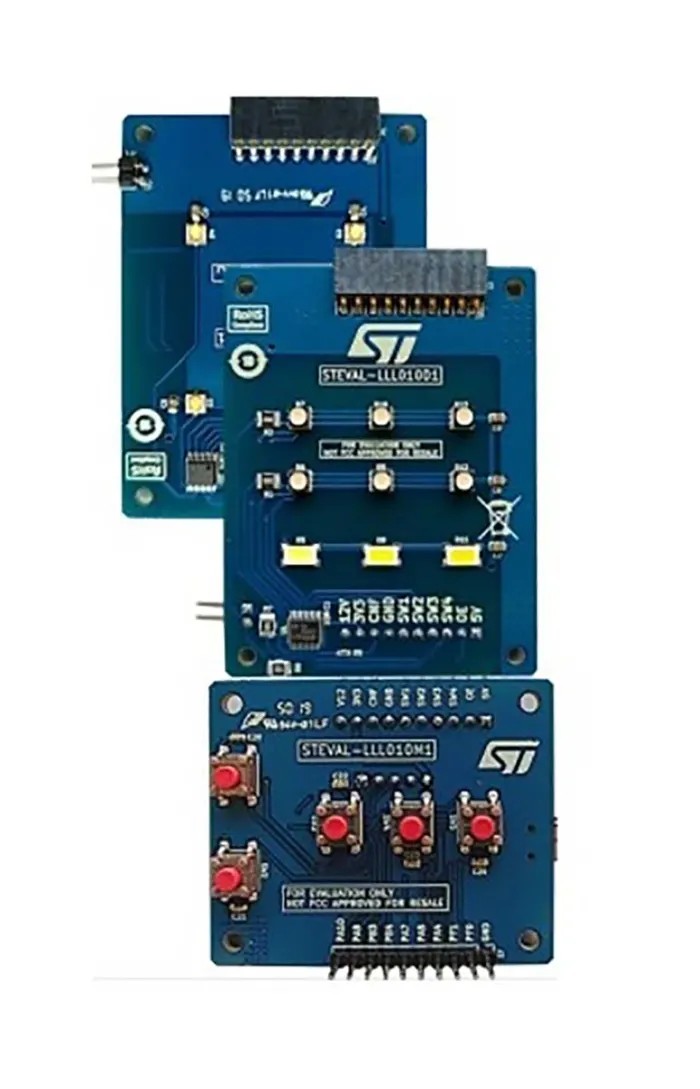

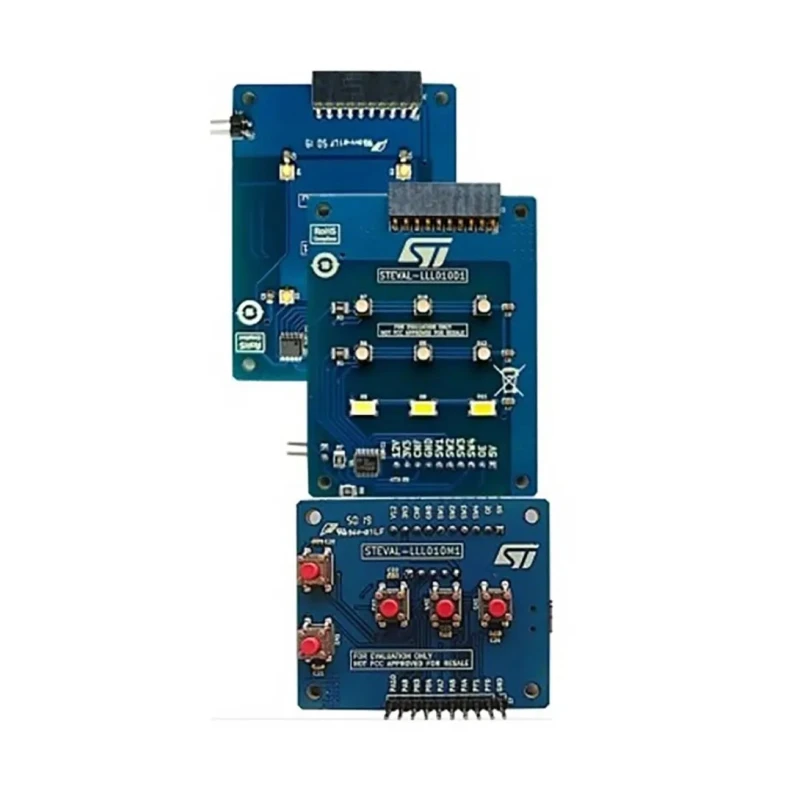

STMicroelectronics STEVAL-LLL010V1 LED Driver Evaluation Kit for LED8102S 8-Channel Direct Switch Control is a comprehensive development tool featuring a two-sided LED panel board and a separate control board with an embedded STM32 microcontroller unit (MCU). Each side of the LED board integrates an LED8102S 8-channel LED driver IC which controls different LED configurations, including an array of four independent white LEDs on one side and a set of RGB LEDs connected in series on the other.

This evaluation kit offers full control over LED colour temperature and brightness with direct push button ON/OFF and dimming capabilities, enabling users to intuitively interact with LED sequences through firmware running on the STM32 MCU. The firmware includes demonstrative LED sequences that showcase the versatility and features of the LED8102S driver IC.

The STEVAL-LLL010V1 kit is RoHS and China RoHS compliant, CE certified, and meets the WEEE directive (2012/19/UE RAEE II), ensuring adherence to environmental and safety standards. This makes it suitable for both industrial and educational development environments focused on LED technology innovation and prototyping.

Specifically designed for use with the LED8102S driver, the kit facilitates testing and evaluation of LED driver characteristics and applications including colour temperature management, LED dimming, and other lighting controls.

Double-sided LED board with LED8102S 8-channel LED driver ICs. White and RGB LED arrays for versatile lighting experiments. STM32 MCU with firmware for demonstrating LED control sequences. Push button controls for ON/OFF and dimming.

Compliant with RoHS, China RoHS, CE, and WEEE standards. Suitable for industrial, educational, and prototyping applications. Explore more LED Driver evaluation kits and components to enhance your projects at EnvMart.
