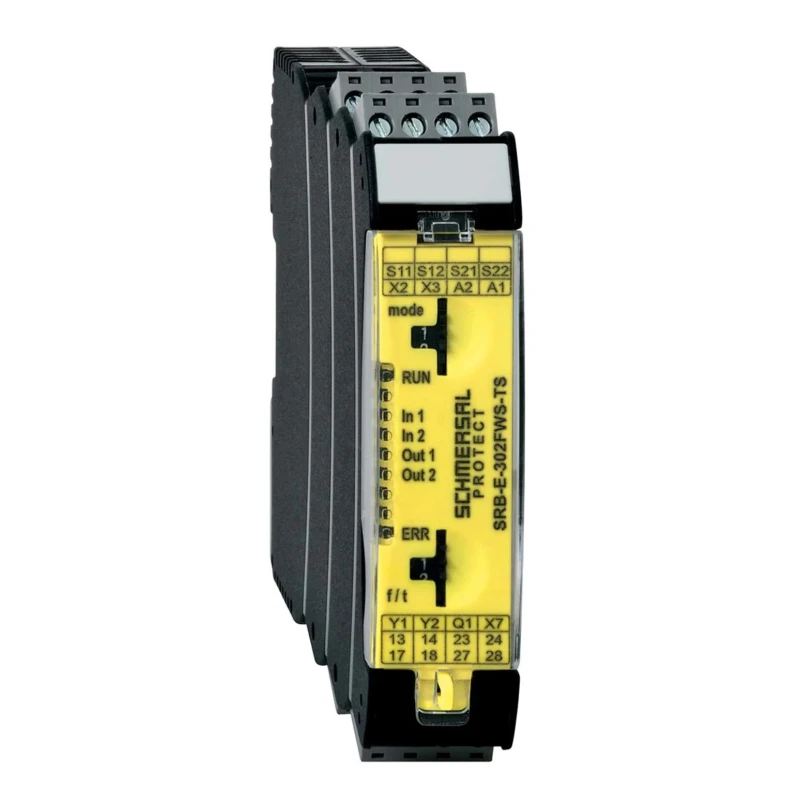

Schmersal 24V dc Safety Relay, 2 Safety Contacts, 2 Auxiliary Contacts, Automatic Reset, DIN Rail Mount SRB-E-302FWS-TS

Schmersal SRB-E-302FWS-TS 24V dc Safety Relay is a high-quality safety-monitoring module designed for industrial automation and control safety systems. Its robust glass-fiber reinforced thermoplastic ventilated enclosure ensures durability and effective heat dissipation. The relay features self-cleaning, positive drive silver-nickel (Ag-Ni) electrical contacts, maintaining reliable switching performance over prolonged use.

The device is engineered for quick and secure DIN rail mounting according to EN 60715 standards and uses screw connection plug-in terminal connectors supporting both rigid and flexible wiring. It offers two safety contacts combined with two auxiliary contacts to deliver comprehensive safety feedback and monitoring of machinery.

With a coil voltage of 24V dc and 3 watts power consumption, this relay provides efficient and reliable performance in demanding environments. Its IP20 rating makes it suitable for indoor applications where protection against solid foreign objects is required.

The relay supports switching voltages up to 250V ac and 10V dc, with a contact current rating of 6A, meeting varied operational demands. It features an automatic reset mechanism and can detect standstill using impulse sensors, enhancing machine safety and control processes.

Operating temperature range from -25°C to +60°C allows use in diverse industrial scenarios. The unit complies with RoHS environmental norms, ensuring adherence to hazardous substance regulations.

This safety relay is manufactured in Germany, reflecting Schmersal’s commitment to quality and engineering excellence. Ideal for applications in industrial automation, machinery safety, manufacturing processes, and electrical control panels.

Equipped with two safety contacts ensuring secure switching operations. Includes two auxiliary contacts for additional monitoring functions. Features automatic reset method for enhanced operational efficiency. Designed to mount easily on standard DIN rails conforming to EN 60715.

Operates at a coil voltage of 24V dc with low power consumption of 3 watts. Utilizes silver-nickel (Ag-Ni) self-cleaning positive drive electrical contacts for durability. IP20 rated enclosure provides protection against solid objects and safe indoor use.

Compact dimensions: 115 mm height, 98 mm length, and 22.5 mm width. Operates within temperature range of -25°C to +60°C ensuring versatile industrial applications. Compliant with RoHS standards for environmental safety. Manufactured in Germany ensuring quality and reliability.
