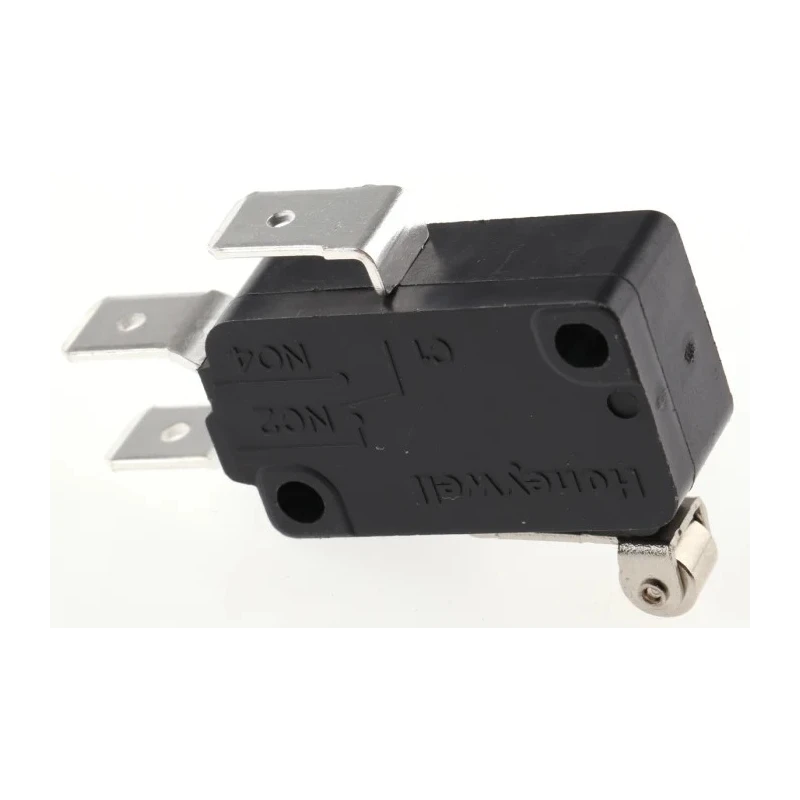

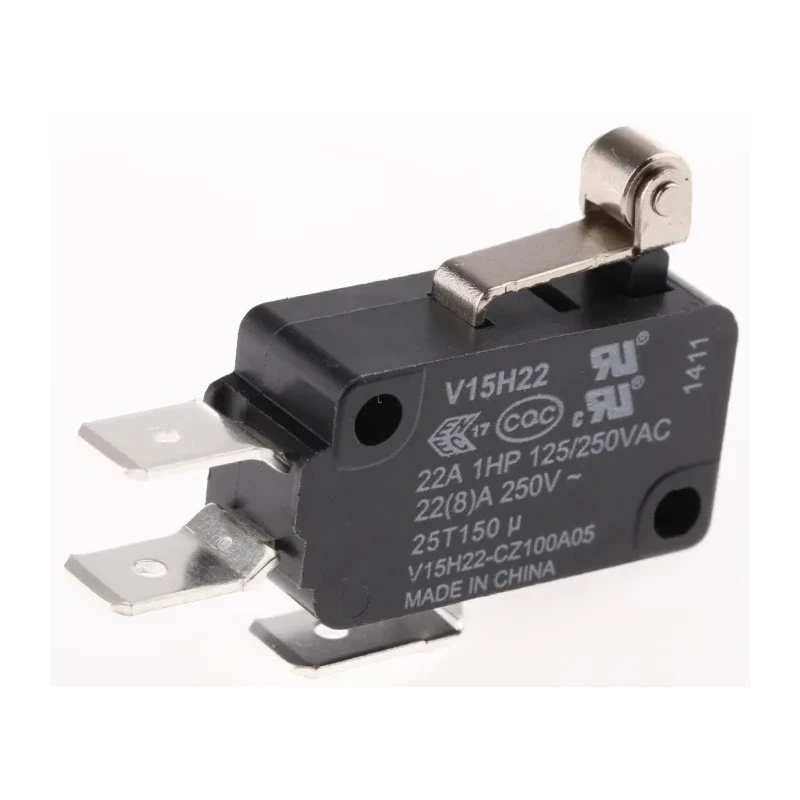

Honeywell Technologies Short Roller Lever Micro Switch 22A 250V AC SPDT IP67 V15H22-CZ100A05
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Length | 27.8mm |
| Model | V15H22-CZ100A05 |
| Depth | 10.3mm |
| IP Rating | IP67 |
| Width | 10.3mm |
| Housing Material | Plastic |
| Series | V15 |
| Maximum Operating Temperature | 150°C |
| Contact Configuration | SPDT |
| Actuator Type | Short Roller Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Quick Connect |
| Standards/Approvals | UL, ENEC, cUL, CQC |
| Switch Contact Current | 22A |
| Operating Force | 3.92N |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Standard |
Key Features
- Compact micro switch with a robust short roller lever actuator.
- Quick connect terminals ease wiring and maintenance tasks.
- Rated for 22A current and 250V AC voltage for reliable high-current switching.
- Sealed to IP67 standard, protecting against dust ingress and temporary water immersion.
- Operates efficiently in temperatures from -25°C to 150°C.
- Mechanical life expectancy of one million cycles minimizes downtime and maintenance needs.
- Housing made of thermoplastic polyester ensures dimensional stability and chemical resistance.
- SPDT contact configuration supports single-pole changeover switching.
Product Description
Honeywell Technologies V15H22-CZ100A05 Short Roller Lever Micro Switch provides reliable switching performance in stringent industrial and automation environments. This micro switch is engineered with a short roller lever actuator and quick connect terminals to facilitate fast installation and wiring.
The switch is rated for 22 amperes at 250 volts AC, delivering high-current capacity suitable for many electrical control systems. Its SPDT contact configuration enables single-pole changeover switching, which is essential in control panel applications requiring reliable and precise switching actions.
The housing is constructed from durable thermoplastic polyester (PBT), offering excellent dimensional stability and resistance to chemical exposure, which makes it practical for use in demanding industrial conditions. The device also boasts an IP67 ingress protection rating, making it dust-tight and resistant to temporary water immersion, ideal for use in harsh environments.
Operating temperatures range from -25°C to 150°C, allowing the micro switch to function reliably across a wide range of ambient and process conditions. Additionally, its mechanical life of approximately one million cycles greatly reduces maintenance frequency and costs.
Approved under UL, ENEC, cUL, and CQC standards, this switch meets stringent safety and quality requirements. It is an excellent choice for limit switching in industrial automation systems, packaging machinery, material handling equipment, and safety interlock mechanisms.
Compact and robust short roller lever actuator design. Quick-connect terminal arrangement for easy wiring. High current rating of 22A at 250V AC. IP67 rating protects against dust and temporary immersion. Wide operating temperature range from -25°C to 150°C.
Durable PBT plastic housing for chemical resistance. SPDT contact configuration for reliable changeover switching. Mechanical life span of 1,000,000 cycles. Meets UL, ENEC, cUL, and CQC approvals. Suitable for industrial automation, packaging, and safety applications.
Explore Honeywell Micro Switches and related products for industrial and electrical applications in the EnvMart catalogue for high quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 22A at 250V AC, making it suitable for high-current applications.
This model has an IP67 rating, which means it is dust-tight and can withstand temporary immersion in water.
The operating temperature range is from -25°C to 150°C, allowing it to function reliably in various environments.
It features a short roller lever actuator, designed for efficient switching operations.
The mechanical life expectancy is approximately one million cycles, which reduces maintenance frequency.

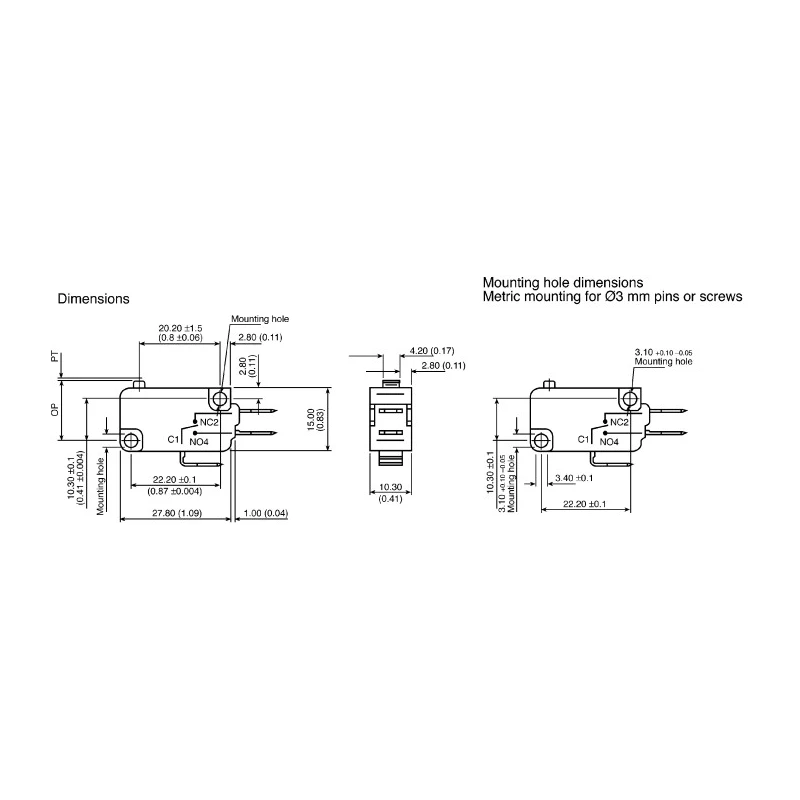

The dimensions are 27.8mm in length, 10.3mm in width, and 10.3mm in depth.
It is equipped with quick connect terminals, facilitating easy wiring and maintenance.
It supports a single-pole double-throw (SPDT) contact configuration for versatile switching applications.
The housing is made of thermoplastic polyester (PBT), providing good dimensional stability and chemical resistance.
It is approved under UL, ENEC, cUL, and CQC standards, ensuring compliance with safety and quality requirements.
It is suitable for use in industrial automation, packaging machinery, and safety interlock mechanisms.
The operating force required is 3.92N, which is necessary for actuating the switch.
