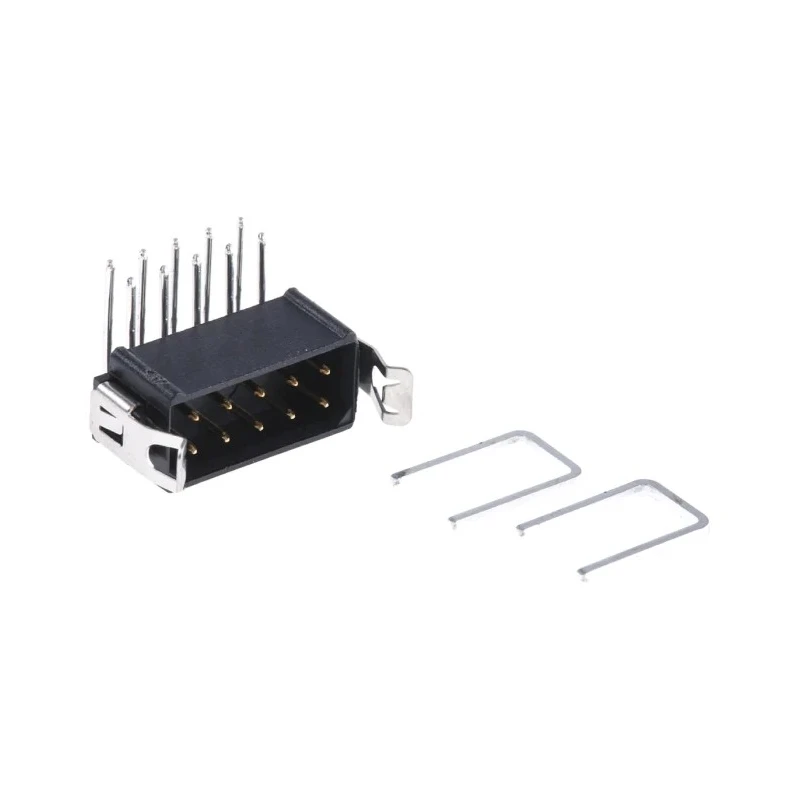

HARWIN Datamate L-Tek Series Right Angle Through Hole PCB Header 10 Contact 2 mm Pitch 2 Row Shrouded M80-8511042

Free Delivery in India | Lowest Global Shipping Charges

HARWIN Datamate L-Tek Series Right Angle Through Hole PCB Header 10 Contact 2 mm Pitch 2 Row Shrouded M80-8511042

Name: HARWIN Datamate L-Tek Series Right Angle Through Hole PCB Header 10 Contact 2 mm Pitch 2 Row Shrouded M80-8511042
Brand: HARWIN
SKU: 164670



Category PCB Headers Brand HARWIN Condition New

Specifications

Country of Origin	United Kingdom
Voltage	120V
Brand	HARWIN
Orientation	Right Angle
Current	3A
Model	M80-8511042
Mount Type	Through Hole
Housing Material	Polyphenylene Sulphide
Contact Material	Phosphor Bronze
Series	Datamate L-Tek
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3mm

Key Features

The connector features a right angle orientation for compact PCB designs.
Contacts are 3A rated with gold-plated phosphor bronze material for excellent conductivity.
Housing is made of durable polyphenylene sulphide ensuring operational stability from -55°C up to 125°C.
Through-hole mount type supports robust solder termination and mechanical strength.
Includes a 3 mm tail pin length with male contact gender for secure mating connections.
The shrouded design enhances reliability by preventing incorrect insertion.
Complies with industry standards and suited for demanding vibration and shock environments.
Manufactured in the United Kingdom, ensuring high-quality production standards.

Product Description

HARWIN M80-8511042 Datamate L-Tek Series Right Angle Through Hole PCB Header is a highly reliable electronic connector designed for industrial, laboratory, manufacturing, and commercial applications requiring durable board-to-board and wire-to-board connectivity solutions. This model features 10 contacts arranged in 2 rows with a 2 mm pitch, optimized for high-density PCB layouts.

The connector's shrouded housing made from polyphenylene sulphide provides excellent protection and stability. Its right angle orientation with a through-hole mount ensures firm installation, making it ideal for applications subjected to vibration, shock, and harsh operational environments.

Featuring gold-plated phosphor bronze contacts, the connector supports continuous currents up to 3A and withstands an operating temperature range from -55°C to 125°C. The 3 mm tail pin length and male contact gender provide robust mechanical and electrical interfaces. The shrouded design further enhances connector reliability by preventing misalignment during mating.

The Datamate L-Tek series is recognized for its high reliability with a four-finger beryllium copper contact design that ensures long-lasting performance across multiple mating cycles.

The connector supports board-to-board and wire-to-board systems. Its right angle and shrouded characteristics enhance PCB design flexibility and connection safety. Material choice ensures operational durability in demanding conditions.

Gold contact plating enhances conductivity and corrosion resistance. Made in the United Kingdom, it meets rigorous quality and manufacturing standards.

This PCB header is widely used in electronic equipment, industrial control systems, telecommunications, and embedded computing devices where reliability and precision are critical.

Explore more connectors and electronic components from HARWIN in the PCB Headers category on EnvMart for comprehensive industrial application solutions.
