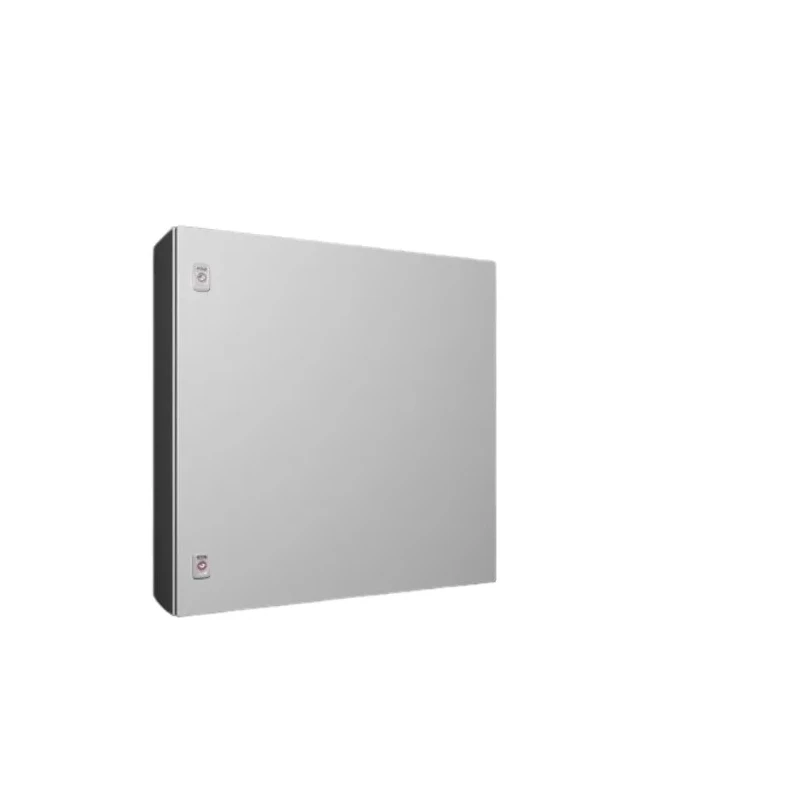

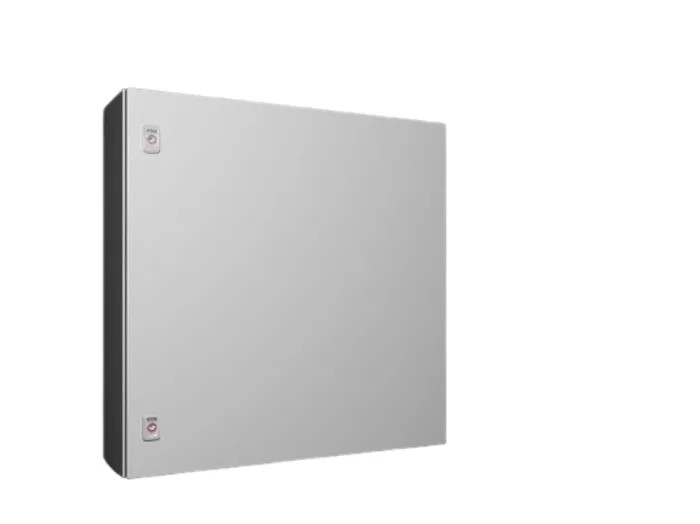

Rittal AX Series Sheet Steel Wall Box IP66 Rated, 760 mm x 760 mm x 210 mm IP66

Rittal IP66 Sheet Steel Wall Box model IP66 is a robust electrical enclosure designed for heavy-duty industrial and commercial use. It provides an external height and width of 760 mm and a depth of 210 mm, making it ideal for housing multiple electronic devices with comfort and sufficient space. The enclosure is constructed from high-quality sheet steel with a protective RAL 7035 finish, ensuring durability and resistance in harsh environments.

Featuring an IP66 rating, this wall box protects sensitive electrical equipment from dust ingress and high-pressure water jets, making it suitable for demanding manufacturing facilities, construction sites, and commercial installations. The door is secured by a cam lock equipped with a 3mm double-bit lock mechanism to prevent unauthorized access, enhancing safety and security.

This product includes a mounting plate, chassis plate, and gland plate enabling flexible and reliable installation options. The integral roof, base, and side locators facilitate the addition of rails without drilling, and the base configuration rail increases load capacity to hold heavy devices with ease.

Certified to standards such as DNV-GL, UL, and GOST with an impact protection rating of IK10, this enclosure meets international quality and safety requirements. Supplied disassembled, it allows custom assembly to meet specific installation needs.

Constructed from robust sheet steel with industrial-grade finish. Dimensions: 760 mm height, 760 mm width, 210 mm depth for versatile device accommodation. IP66 rating ensures protection against dust and water jets. Secure door locking with cam & 3mm double-bit lock.

Includes mounting plate, chassis plate, and gland plate for flexible mounting options. Complies with DNV-GL, UL, and GOST standards with IK10 impact rating. Ideal for manufacturing, construction, and commercial applications.

Assembly required, supplied in individual parts. Color finished in RAL 7035 for professional aesthetic. Made in Germany ensuring premium quality and reliability. Explore more electrical enclosures and Wall Boxes on EnvMart to find the perfect solution for your industrial and commercial needs.
