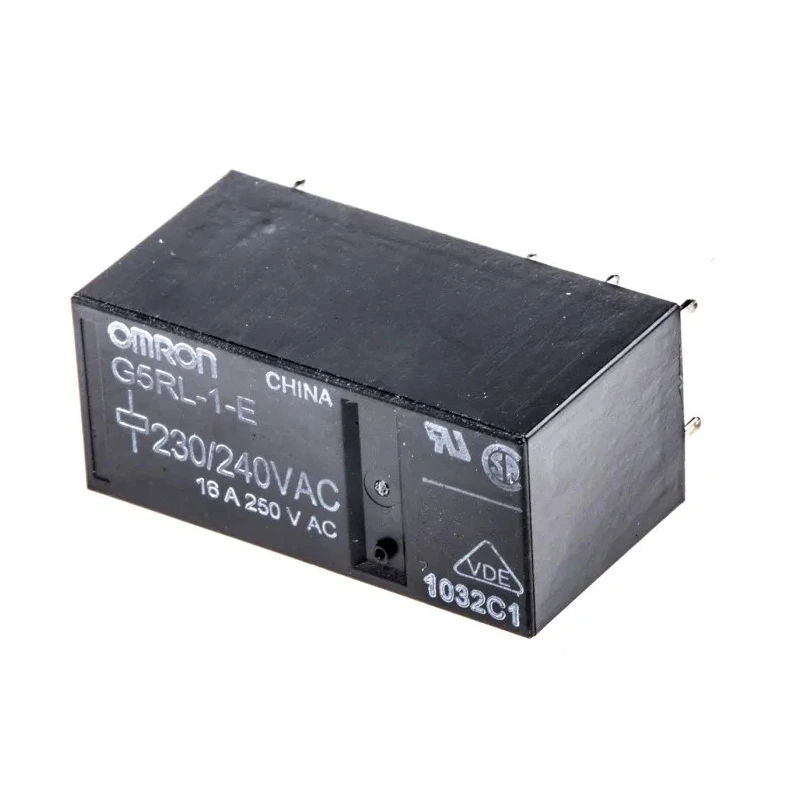

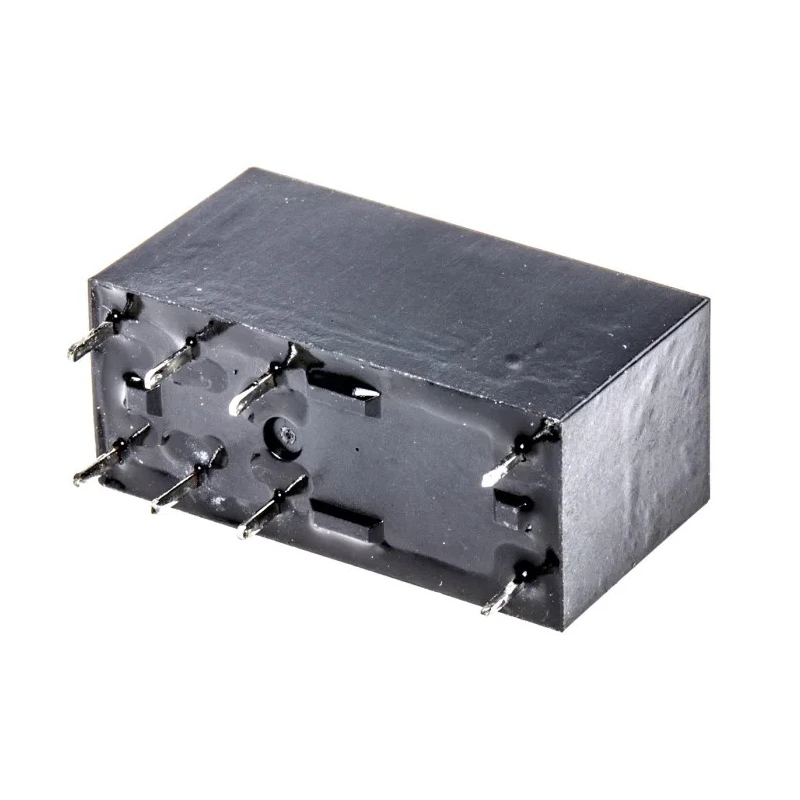

Omron PCB Power Relay 240V AC Coil 16A Switching Current SPDT G5RL-1-E AC230/240

Omron G5RL-1-E AC230/240 PCB Power Relay offers high reliability and silent operation in a compact form factor. Designed with a 240V AC coil and a maximum switching current of 16A, it supports Single Pole Double Throw (SPDT) contact configuration, suitable for a wide range of electrical and industrial control applications.

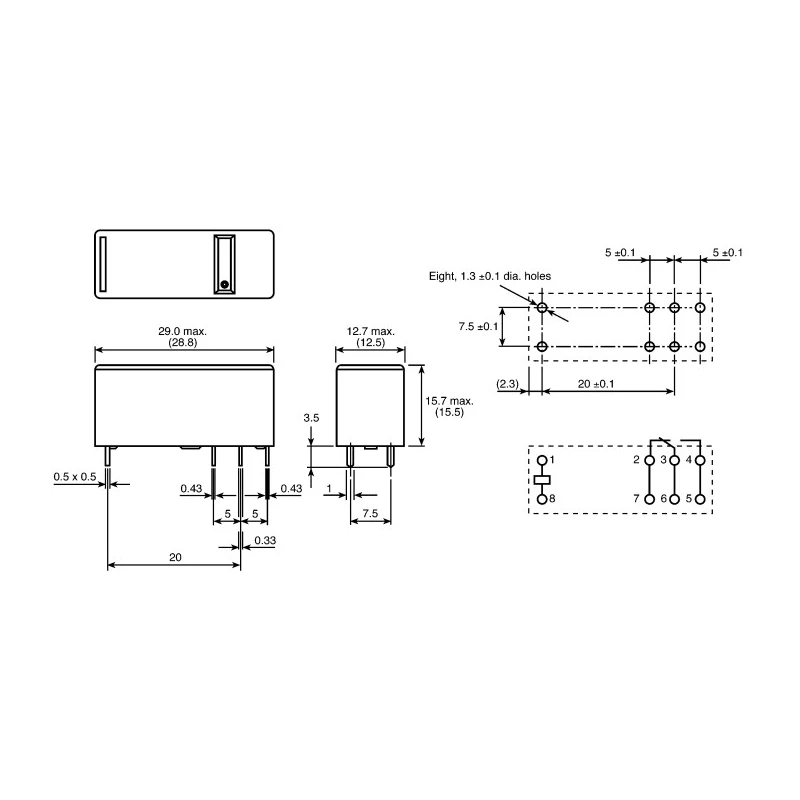

The relay features a coil resistance of 47.6kΩ and low coil power consumption at 750mW, contributing to energy-efficient usage. Its dimensions include a low profile height of 15.7mm, a length of 29mm, and a width of 12.7mm, making it highly suitable for PCB mounting in compact electronic assemblies.

The device operates reliably in extreme conditions with an operating temperature range from -40°C to 70°C. Silver alloy contacts ensure excellent conductivity with a contact resistance of just 100mΩ. The relay also features an 8mm creepage and clearance distance between the coil and contacts, providing enhanced flux proofing and safety.

Compliant with RoHS standards, this power relay meets environmental regulations while providing silent and efficient switching with noise levels as low as 44dB at 15cm. It supports high inrush currents up to 100A for demanding applications.

This Omron G5RL series relay is perfectly suited for industrial, electrical automation, manufacturing, HVAC, and commercial uses requiring precise and reliable switching mechanisms in printed circuit board designs.

Single Pole Double Throw (SPDT) configuration. Low noise, silent operation with noise levels around 44dB. Flux proof with 8mm creepage and clearance. Compact size and low profile design for PCB mounting. High switching currents and voltages supported.

Wide operating temperature range from -40°C to 70°C. Environmental RoHS compliance. Silver alloy contacts for low resistance and durability. Explore more products in the Power Relay category at EnvMart for your industrial and automation needs.
