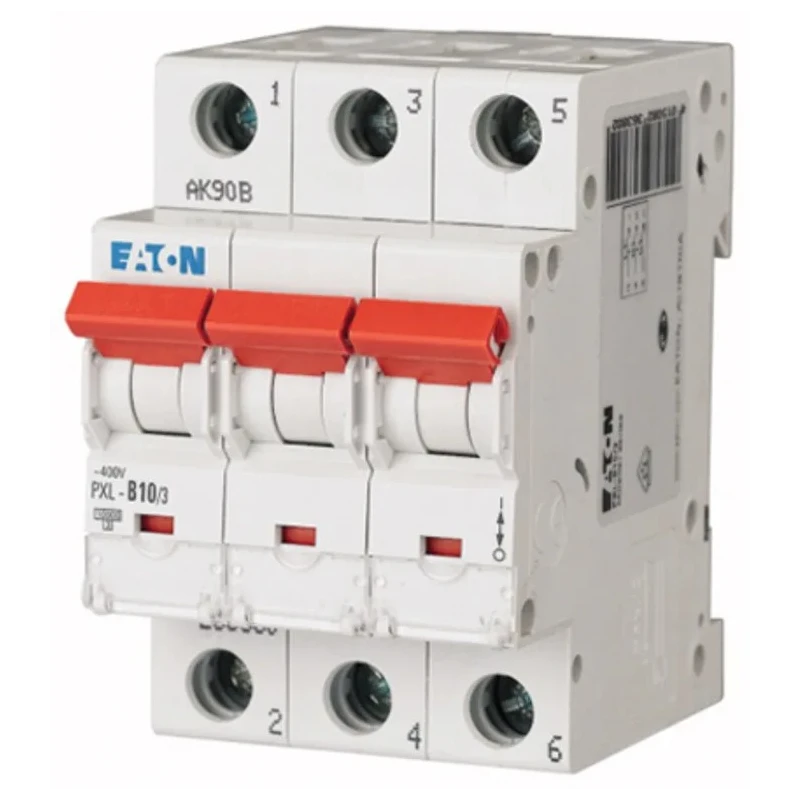

Eaton xPole Miniature Circuit Breaker, 3-Pole, 10A, Type B, 400V ac, 48V dc, 10 kA Breaking Capacity 236380 PXL-B10/3

The Eaton 236380 PXL-B10/3 is a high-performance miniature circuit breaker from the xPole PXL series, designed for both AC and DC electrical protection with rated voltages of 400V AC and 48V DC. This 3-pole breaker is engineered to provide reliable and fast trip response with a Type B characteristic, ideal for protecting electrical circuits in residential, commercial, and light industrial environments.

Constructed with a robust electromechanical tripping mechanism and instantaneous break time, this circuit breaker ensures precise protection against overcurrents and short circuits. It features a toggle switch reset actuator for quick manual resets, and its design includes double terminal connections at both top and bottom for secure wiring.

With an impressive breaking capacity of 10 kA, the breaker safely interrupts fault currents, minimizing damage to the electrical installation. Its IP20 rating provides finger-proof and back-of-hand-proof protection, enhancing user safety during operation and maintenance.

The compact size of 52.5mm height, 80mm width, and 60mm depth allows easy installation on the standard IEC/EN 60715 top-hat rails, supported by a quick-fit action with three locking positions. This flexibility permits free selection of rail arrangements on both top and bottom, facilitating integration in complex electrical panels.

Compliance with EN 60898 and IEC standards ensures the product meets stringent quality and safety requirements for circuit protection devices. Manufactured in Austria, it combines premium build quality with trusted engineering.

This miniature circuit breaker has 3 poles and a 10A current rating suited for versatile usage. Type B tripping characteristic supports applications with low inrush currents such as lighting and heating circuits. Rated for 400V AC and 48V DC operation with 10 kA breaking capacity for fault clearance.

DIN rail mount type supports convenient and secure installation in standard electrical cabinets. Toggle switch reset and double terminal connections enhance usability and wiring reliability. Compact dimensions allow integration in confined spaces without compromising performance.

IP20 protection rating ensures finger safety during normal handling and operation. Meets EN 60898 and IEC certification requirements for miniature circuit breakers. Manufactured in Austria with a focus on industrial quality standards and durability.

This Eaton xPole Miniature Circuit Breaker is suitable for electrical distribution panels, building wiring circuits, automation systems, and electrical safety applications requiring reliable overcurrent protection. Its high selectivity and breaking capacity protect downstream equipment and wiring effectively, making it an essential component for safe electrical installations.
