Display Visions LCD Monochrome Display 4 x 10 Character Matrix, LED Backlight, I2C/SPI Interface EA DOGS104W-A

Free Delivery in India | Lowest Global Shipping Charges

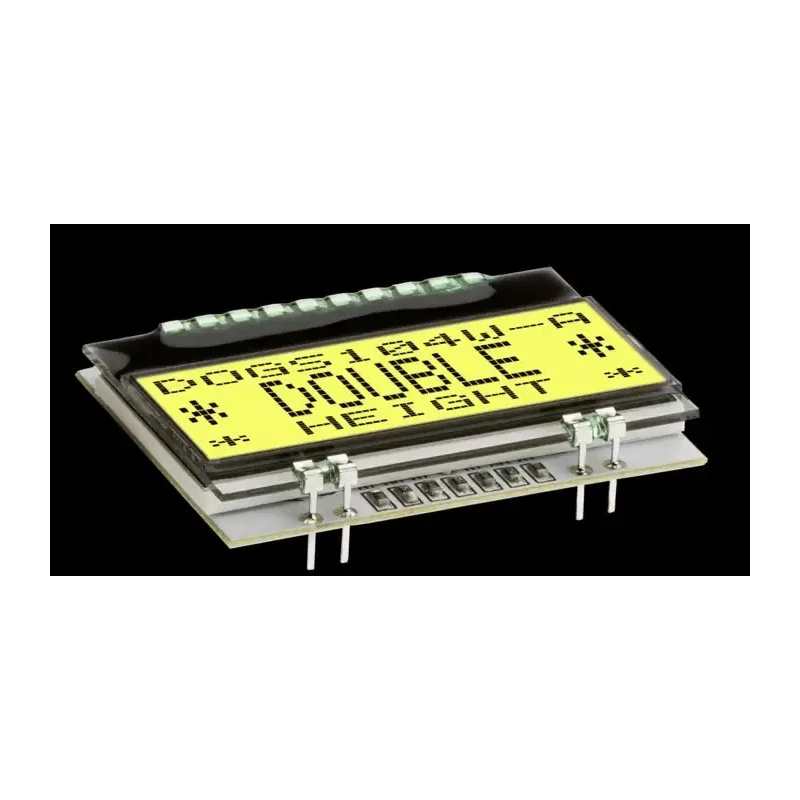

Display Visions LCD Monochrome Display 4 x 10 Character Matrix, LED Backlight, I2C/SPI Interface EA DOGS104W-A

Name: Display Visions LCD Monochrome Display 4 x 10 Character Matrix, LED Backlight, I2C/SPI Interface EA DOGS104W-A
Brand: Display Visions
SKU: 162288
Price: 37.07 USD
Availability: InStock



Category LCD Monochrome Display Brand Display Visions Condition New

Specifications

Country of Origin	China
Display Type	LCD
Brand	Display Visions
Model	EA DOGS104W-A
Series	EA DOG
Character height	4.8mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
External Width	2mm
External Depth	25.4mm
External Height	36mm
Interface Type	I2C/SPI
Standards/Approvals	RoHS
Viewing Area Dimensions	29.78 x 10.38 mm
Backlight Type	LED
Character Matrix	4 x 10

Key Features

Compact dimension of 66 x 40 mm with a viewing area of 29.78 x 10.38 mm.
Operates at a minimum temperature of -20°C and maximum of 70°C.
Ultra-flat profile with 2.0 mm thickness without backlight.
Utilizes SSD1803A controller with integrated graphic RAM.
High contrast supertwist LCD technology ensuring clear readability.
LED backlight rated at 45 mA for illumination in dark environments.
Designed for direct soldering onto PCB with no separate mounting required.

Product Description

Display Visions EA DOGS104W-A is an advanced LCD Monochrome Display designed for compact, low-voltage applications operating at 3.3 V without need for auxiliary power. It features a 4 x 10 character matrix with each character height of 4.8 mm, making it suitable for clear information display in constrained spaces.

The display measures a slim 66 x 40 mm overall with a viewing area of 29.78 x 10.38 mm and provides an ultra-flat profile of just 2.0 mm thickness without backlight, extending to 5.8 mm including the LED backlighting. The LED backlight operates at 45 mA, facilitating excellent screen visibility in low-light conditions.

Designed with versatility in mind, the EA DOGS104W-A supports multiple interface options including 4-bit, 8-bit SPI and I2C communication protocols, enabling flexible integration into various embedded systems. The onboard SSD1803A controller comes with integrated graphic RAM, enhancing graphical performance and simplifying control.

This display is constructed using high contrast supertwist LCD technology, ensuring sharp and clear character presentation under various ambient lighting. It is rated for operation from -20°C to 70°C, making it suitable for industrial, laboratory, electronic component assembly, and embedded system applications requiring dependable operation across thermal ranges.

The unit is designed for easy installation by direct soldering onto printed circuit boards, eliminating the need for additional mounting hardware, thereby reducing assembly time and complexity.

Compact 66 x 40 mm size with 29.78 x 10.38 mm viewing area. 4 x 10 character LCD with 4.8 mm character height. LED backlight at 45 mA for enhanced visibility. Supports I2C and SPI interface options. SSD1803A controller with integrated graphic RAM.

Operating temperature range: -20°C to 70°C. Ultra-flat 2.0 mm profile without backlight. Direct solderable design eliminates mounting needs.

Ideal for electronic assemblies, instrumentation panels, industrial automation, and embedded system displays, this Display Visions EA DOGS104W-A LCD module combines compact size with reliable performance.

Explore our Electronics Components catalog for more LCD Monochrome Displays and related modules from trusted brands.
