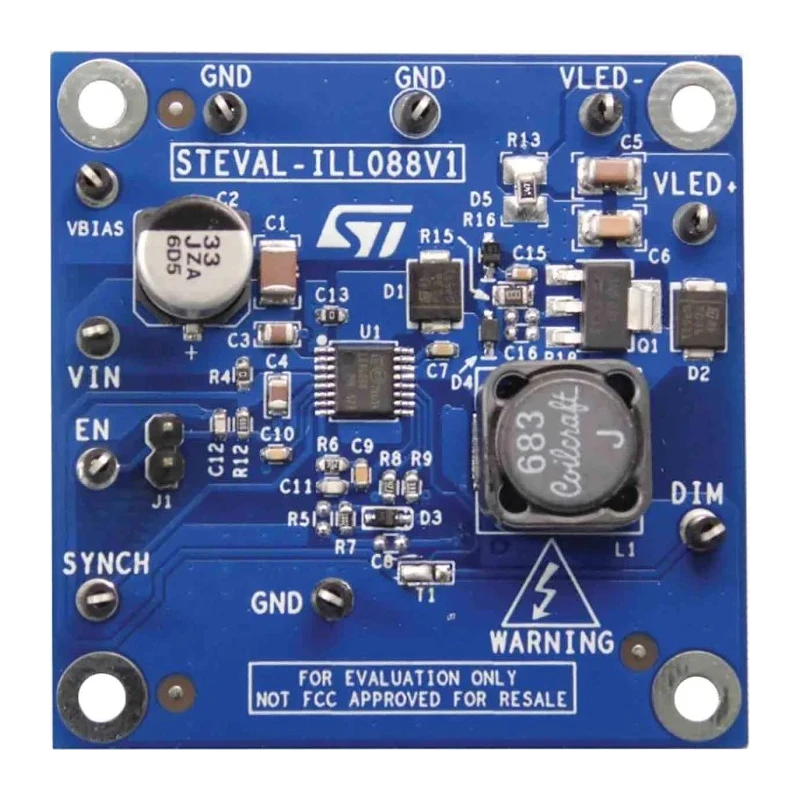

STMicroelectronics STEVAL LED Driver Evaluation Board for LED6000 High Power LED STEVAL-ILL088V1

STMicroelectronics STEVAL-ILL088V1 LED Driver Evaluation Board is a high-performance evaluation kit utilizing the LED6000 device, a monolithic current source designed for high power LED driving applications. The board employs a 61 V asynchronous switching regulator with an embedded power MOSFET, enabling sourcing of up to 3 A DC current based on application conditions. Its design optimizes efficiency with a typical 250 mV RSENSE voltage drop, a switch-over feature at the VBIAS pin, and pulse skipping for light load management.

Digital dimming control is implemented via a dedicated DIM pin, allowing precise brightness adjustment. The evaluation board offers adjustable current limit thresholds and switching frequency to tailor performance to specific application requirements. A built-in 250 kHz oscillator can be externally tuned up to 1.5 MHz, supporting high switching frequencies that decrease the overall application size and improve compatibility with ceramic output capacitors.

This board is ideal for industrial, commercial, and laboratory use cases involving high power LED solutions requiring efficient driving mechanisms. Synchronization of two LED6000 regulators in a 180° out-of-phase configuration further optimizes the input RMS current, benefiting power-sensitive environments.

The STEVAL-ILL088V1 kit complies with RoHS standards and originates from Italy. It serves developers and engineers needing a robust and compact evaluation platform for LED lighting and power electronics applications.

The board supports up to 3 A DC current depending on the application conditions. Features a 61 V asynchronous switching regulator with embedded power MOSFET. Includes digital dimming via a dedicated DIM pin for precise control.

Current limit threshold and switching frequency are adjustable for optimized use. Light load management uses pulse skipping to maximize power conversion efficiency. The built-in 250 kHz oscillator is externally adjustable up to 1.5 MHz.

Design minimizes application size with ceramic output capacitor compatibility. Two regulators can be synchronized 180° out-of-phase to reduce total input RMS current. Explore STMicroelectronics and related LED Driver evaluation boards on EnvMart.
